Hooker Furniture 5750-75400-LTWD Assembly Instruction

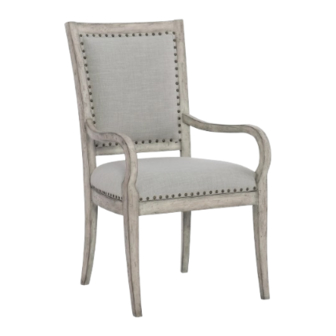

Upholstered arm chair

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

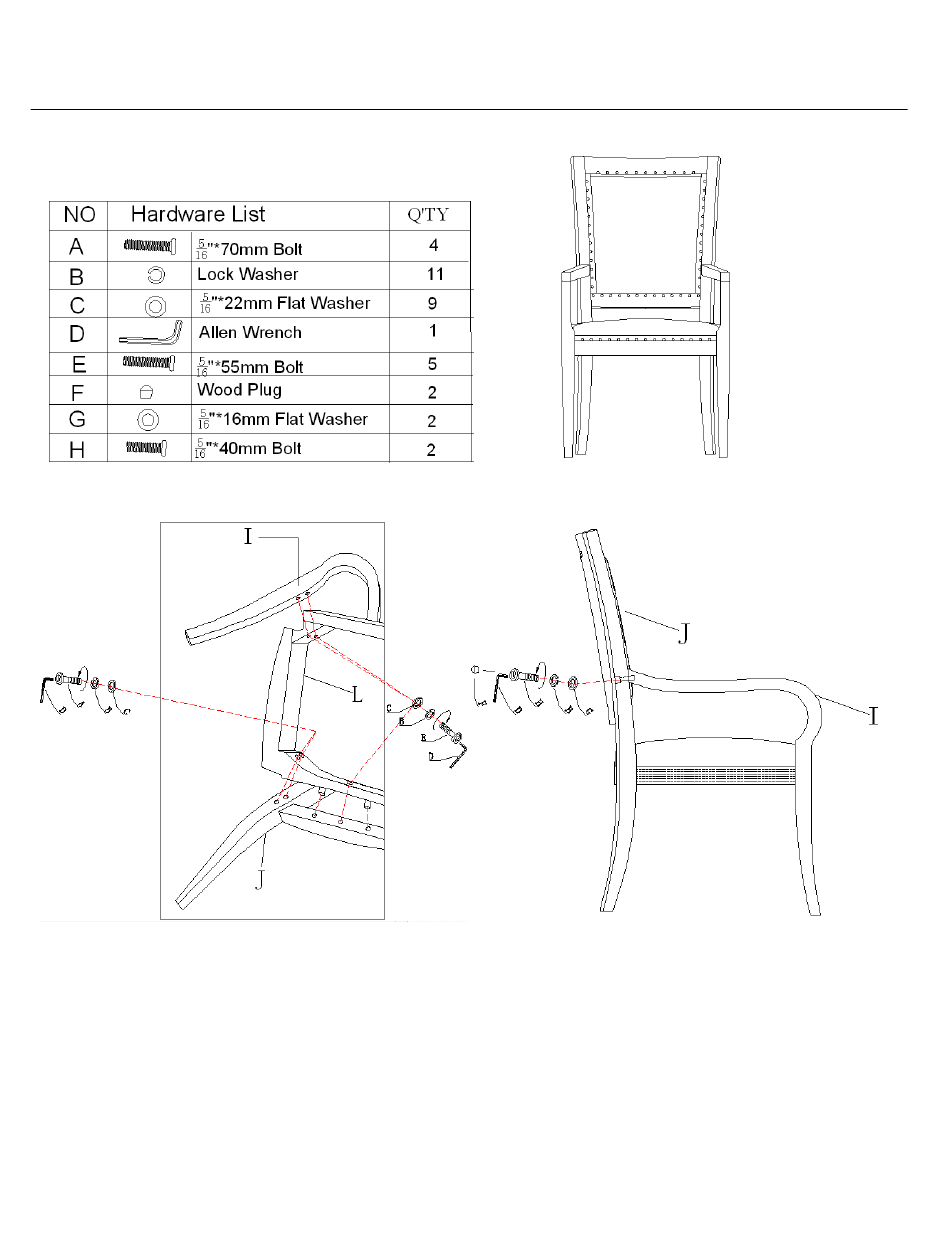

Diagram 1

1. Place chair back on a clean surface.

2. Attached seat frame (L) to chair back (J) by using bolt (A), lock washer (B) , flat washer (C) at the

center location and tighten by Allen Wrench(D). Then, tighten seat frame (L) to chair back (J) by

using bolts (E), lock washers (B), flat washers (C) and secured by using allen wrench (D) at corner.

(See diagram 1)

3. Attached front legs (I) to seat frame (L) by using bolts (E), lock washers (B) ,flat washers (C) and

tighten by allen wrench (D).(See diagram 1)

4. After all bolts are attached and hand tightened, turn the chair upright.

5. Attached front leg (I) to chair back(M)by using bolts (H), lock washers (B) and flat washers (G).

Tighten all bolts by allen wrench (D). Insert wood plugs (F) into bolts (H).

6. Make sure the chair is level and then tighten all bolts completely by using allen wrench (D).

ASSEMBLY INSTRUCTION

Item#: 5750-75400-LTWD Upholstered Arm Chair

1/2

Diagram 2

Table of Contents

Do you have a question about the 5750-75400-LTWD and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION Item#: 5750-75400-LTWD Upholstered Arm Chair ** Please make sure you have all parts indicated below prior to assembly. Assembly Steps: Diagram 2 Diagram 1 1. Place chair back on a clean surface. 2. Attached seat frame (L) to chair back (J) by using bolt (A), lock washer (B) , flat washer (C) at the center location and tighten by Allen Wrench(D).
Page 2 PLEASE READ THESE INSTRUCTIONS PRIOR TO ASSEMBLING THE CHAIRS CHAIR LEVELING INSTRUCTION SUPPLEMENT Chair leveling procedures: To make the assembly process easy and efficient, please read the entire instruction sheet prior to assembling of the chair. Make sure all hardware listed is included. To properly assemble the chair, none of the bolts should be fully tightened until all components are attached to the chair.
