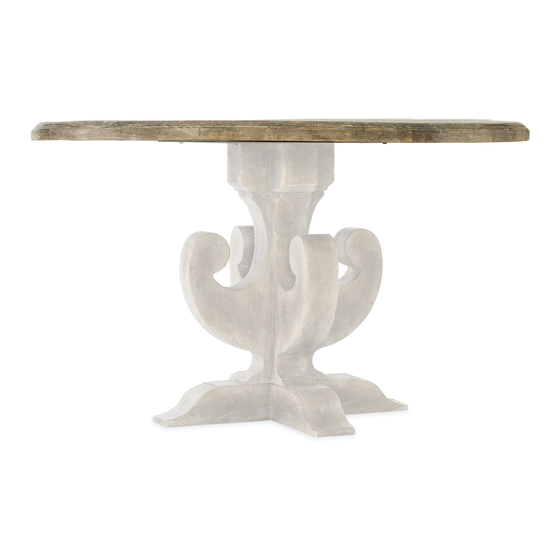

tem#: 5750-75203T-MWD Ascension 48in Wood Round Dining Table Top
I
5750-75213T-MWD Ascension 60in Wood Round Dining Table Top
5750-75203B-MWD Ascension Round Dining Table Base
**
Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.
Note:
1. Mounting bridge cannot be assembled upside down. Please follw numbers on mounting
bridge and top of base with locator dowels when assemble.
2.
Height of this table can be adjusted with or without extension block. (30" and 36" heights)
Assembly steps with extension block:
1. Place table top (H) upside down on a smooth surface to prevent it from being scratched.

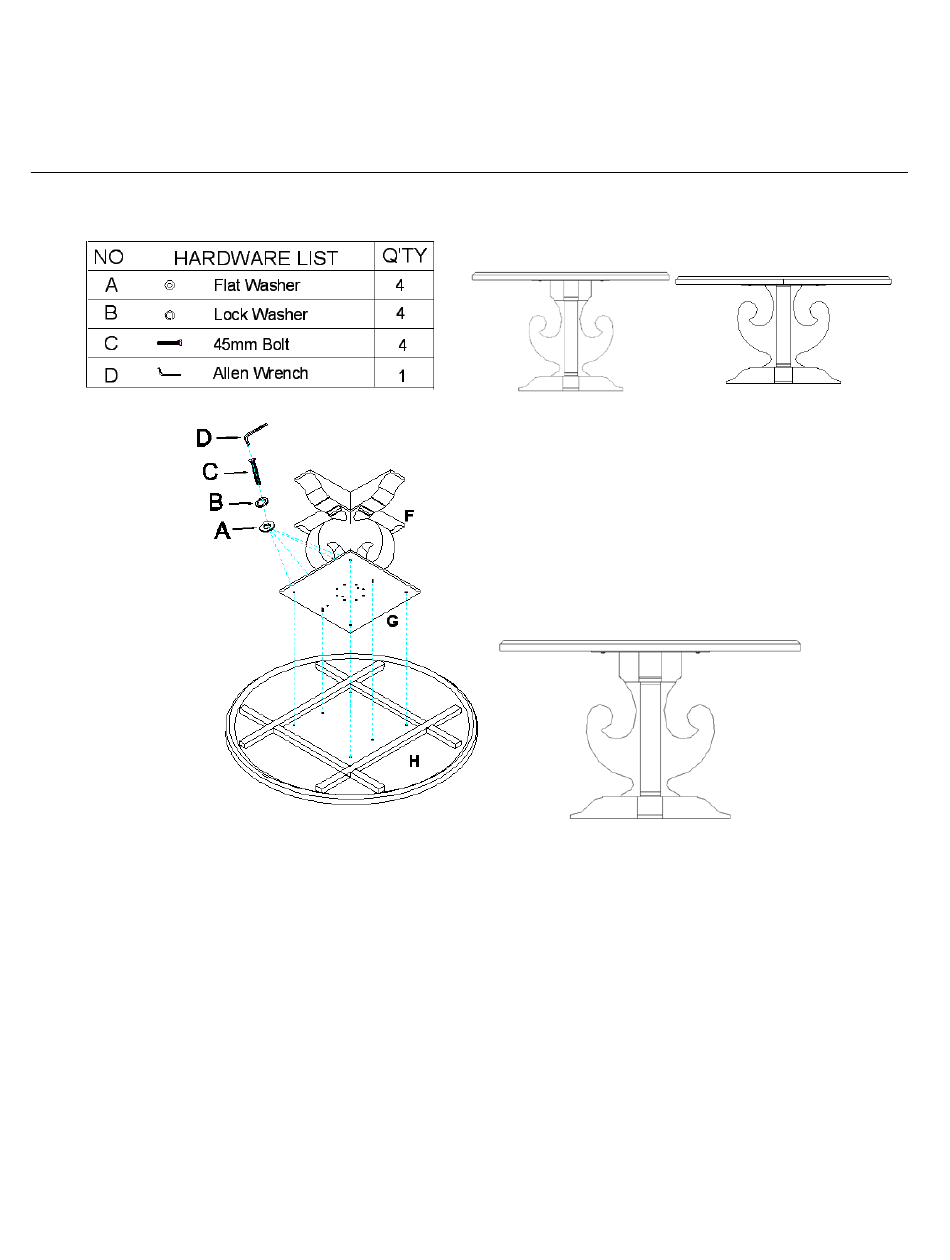

2. Attach base (F) to top (H) by using bolts (C), lock washers (B) and flat washers (A), secure
with allen wrench (D) in clockwise direction. (See diagram 2)
3. Turn table upright.
ASSEMBLY INSTRUCTION
Diagram 1
1/2
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5750-75203T-MWD
Summary of Contents for Hooker Furniture 5750-75203T-MWD
- Page 1 ASSEMBLY INSTRUCTION tem#: 5750-75203T-MWD Ascension 48in Wood Round Dining Table Top 5750-75213T-MWD Ascension 60in Wood Round Dining Table Top 5750-75203B-MWD Ascension Round Dining Table Base Please make sure you have all parts indicated below prior to assembly. This table is heavy and can best be assembled with the help of two or more people.
- Page 2 Diagram 1 Diagram 2 Diagram 3 Diagram 4 Assembly steps without extension block: Unscrew bolts (C), lock washers (B) and flat washers (A) from mounting bridge (G). Unscrew bolts (E), lock washers (B) and flat washers (A) from extension block (K). Remove extension block (K) from base (F) with care.
