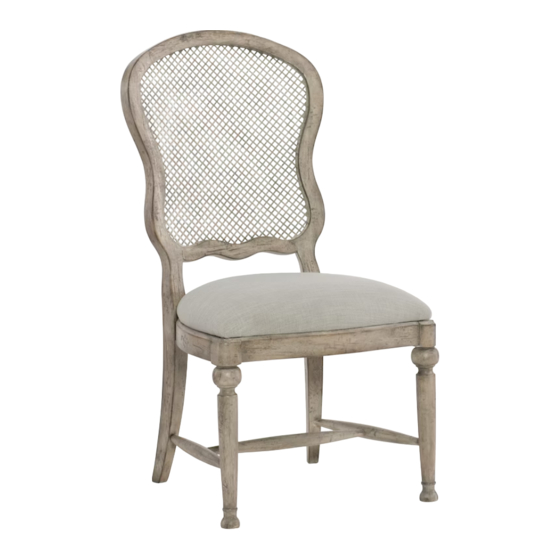

Hooker Furniture Boheme Gaston 5750-75411-LTWD Assembly Instruction

Metal back side chair

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

There are two K/D chairs in one box.Please follow numbers on one chair and letters on the other

chair during assembly.

1. Place chair back (G) on a clean surface.

2. Tighten seat frame (H) to chair back (G) by using bolts (F), lock washers (B) and flat washers (C)

at the center location with allen wrench(D) (see diagram 1) .Then tighten seat frame (H) to chair

back (G) by using bolts (A), lock washers (B) and flat washers (C) at the corner blocks with allen

wrench(D). (see diagram 1)

3. Please follow numbers on legs(I) and corner blocks. Assemble front legs (I) onto front corner

blocks of seat frame (H),using bolts(F), lock washer(B) and flat washers (C).Tighten all bolts by

hand.(See diagram1)

4. Tighten center stretcher to side stretcher .then connect front legs(I) with chair back (G) by stretcher

(J) using screws (E) (See diagram 1) .

5. After all bolts are attached and hand tightened, turn the chair upright.

6. Level the chair following the "chair leveling instruction" as below.

7. Make sure the chair is level and then tighten all bolts completely by using allen wrench (D).

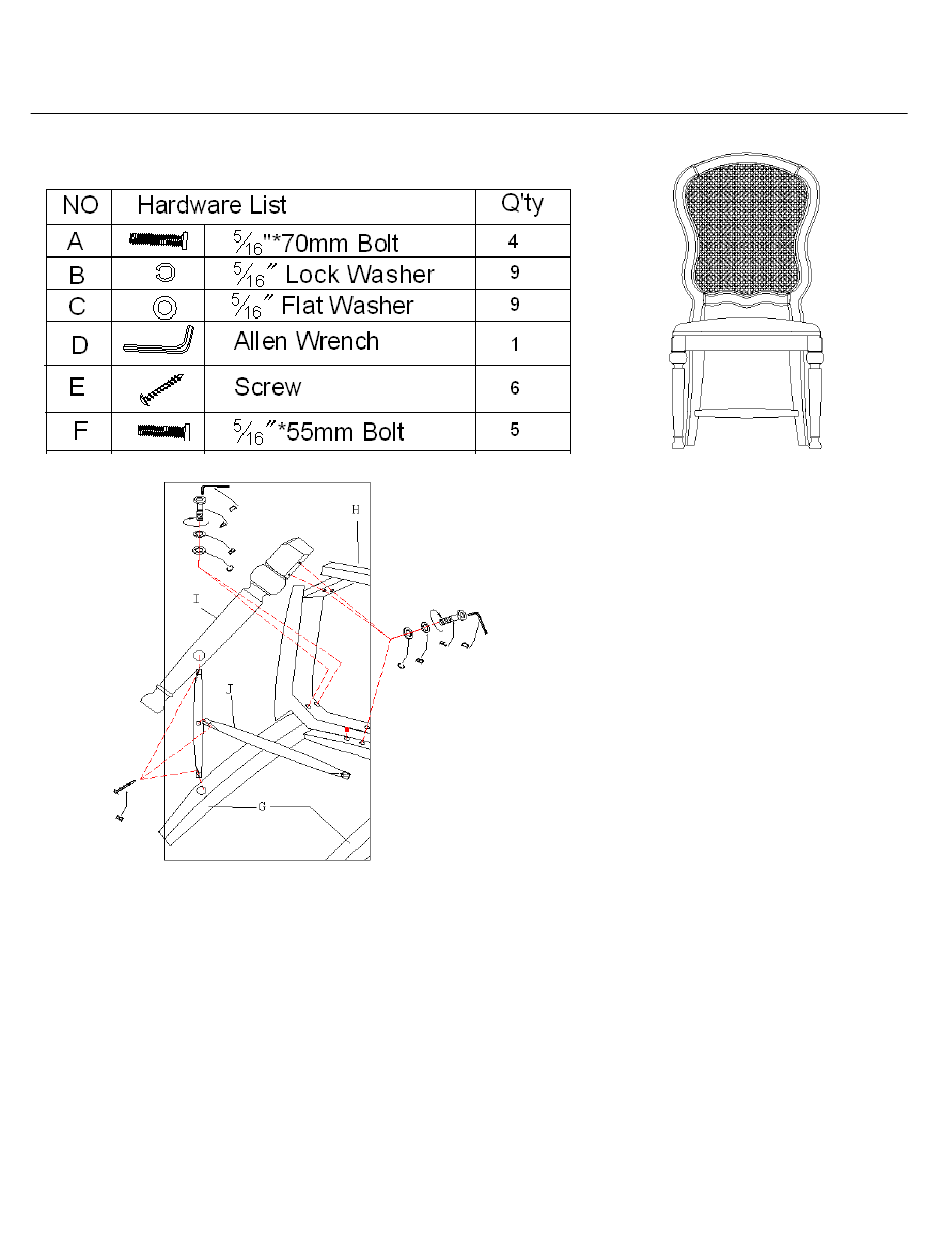

ASSEMBLY INSTRUCTION

Item#:5750-75411-LTWD Metal Back Side Chair

Diagram 1

1/2
