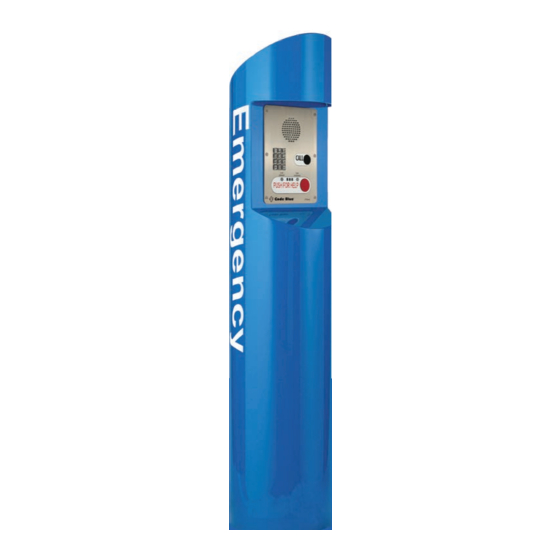

- Page 1 CB 9 Series Models: ENTM08, ENTM09, ENTM10, ENTM11, ENTM12, ENTM13, ENTM14, ENTM15 Admin Guide Installation | Configuration | Support | Maintenance | Use 800.205.7186 • www.codeblue.com...
- Page 2 OF OR IN CONNECTIONS WITH THIS GUIDE, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Code Blue Corporation reserves the right to make any modifications to this guide or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement.
-
Page 3: Table Of Contents
CB 9 Series Administrator Guide Table of Contents Section Section Title Page # Introduction CB9 Series Model Photos Safety Information Installation Instructions Getting Started Tools Needed Anchor Bolt Installation Deck Mount Installation Base Gasket Installation CB9 Series Installation Instructions Remote Mount Beacon/Strobe Installation Instructions... -
Page 4: Introduction
This guide contains all of the CB 9 Series information for the CB 9-s and the 9-t. This guide contains a general overview of the CB 9 Series options and its application, installation and wiring. • 259 Hedcor Street • Holland, MI 49423 USA •... -
Page 5: Cb9 Series Model Photos
CB 9 Series Administrator Guide CB9 Series Model Photos CB 9-t CB 9-t CB 9-t CB 9-s CB 9-s CB 9-t CB 9-t CB 9-t with with with with with with Dual Opening Two Single Upper Single One Dual Upper Dual... -
Page 6: Safety Information
In some countries, a certified electrician may be required. NOTICE When transporting a Code Blue product, use the original packaging or equivalent to prevent damage to the product. Code Blue products shall be used in compliance with local laws and regulations. -
Page 7: Installation Instructions
Important Notes: EIA/TIA, ANSI, CSA and BICSI cabling or similar standards shall be adhered to for proper operation of Code Blue communication devices connected to copper or fiber infrastructures communications cable and electrical cable in the same conduit is not an acceptable installation and shall not be supported. -
Page 8: Anchor Bolt Installation
1.3 Set the Anchor Bolts in the Wet Foundation – Four 24-inch L-shaped anchor bolts and an aligning template are supplied for anchoring the Code Blue unit. The bolts should be set into the foundation so that six inches are left showing above the finished grade level. -
Page 9: Deck Mount Installation
CB 9 Series Administrator Guide Deck Mount Installation Instructions SKIP if installation does not include a Deck Mount Kit 1.0 DECK MOUNT FOUNDATION 1.1 Drill Deck Holes – Drill four holes through the deck or floor for the four 3/4” threaded rods. -
Page 10: Base Gasket Installation
CB 9 Series Administrator Guide Base Gasket Installation Instructions Access the mounting studs through the access door on the side of the unit. Set the gasket on the bolts and cut a small hole where the conduit is located. Stretch the screen tightly around the conduit pipe. Slide the gasket over the bolts to the base of unit. -
Page 11: Cb9 Series Installation Instructions
2.2 Set the unit on the anchor bolts – Align the phone plate in the desired direction and lift the Code Blue unit over the anchor bolts. Note that the unit weighs 190-420 pounds. Use appropriate lifting materials and methods to avoid possible injury and/or damage. - Page 12 CB 9 Series Administrator Guide Figure 1 All wiring must be installed and connected by experienced and certified personnel to meet local and national electrical codes, and will include a service disconnect. • 259 Hedcor Street • Holland, MI 49423 USA •...
-
Page 13: Remote Mount Beacon/Strobe Installation Instructions
CB 9 Series Administrator Guide Remote Mount Beacon/Strobe Installation Instructions ATTACH J-BOX TO THE POLE 1.1 Thread the banding (B) through the pole bracket (A) located on the backside of the J-box (C). 1.2 Wrap the banding around the pole. Cut the banding to desired length. -
Page 14: How To Replace Led Light Connectors
Administrator Guide How to Replace LED Light Connectors As of 2020, Code Blue strobe, area and faceplate lights come with Wago connectors. These connectors provide ease of use and a much stronger connection. Below are the steps needed to change to the new connectors. Each new LED light should come with both the plug-and-socket Wago connectors. - Page 15 CB 9 Series Administrator Guide Strip all wires and twist tight. Place small screwdriver into square hole and push down. Insert cut wire into round hole and remove screwdriver. Repeat on the rest of the connectors. Once all connectors have been switched, you are ready to apply power to the LED.
-
Page 16: Power Requirements
CB 9 Series Administrator Guide 5 Power Requirements The following tables on pages 16-19 include and ALL OTHER Code Blue devices & enclosures for reference. • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue... - Page 17 CB 9 Series Administrator Guide • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 17 of 29 GU-159-O...
- Page 18 CB 9 Series Administrator Guide • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 18 of 29 GU-159-O...
- Page 19 CB 9 Series Administrator Guide • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 19 of 29 GU-159-O...
-
Page 20: Wiring Diagrams
CB 9 Series Administrator Guide 6 Wiring Diagrams 100-240 AC / DC or 24V AC @ 60 Watt or 24V DC Code Blue • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com page 20 of 29... -
Page 21: Poe Din Rail Power System | 48V Dc 12.96W Or 25.5W
CB 9 Series Administrator Guide PoE DIN Rail Power System | 48V DC 12.96w or 25.5w • 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com Code Blue page 21 of 29 GU-159-O... -
Page 22: Nightcharge® 120-240V Ac @ 3 Amps No Area Light | 12Vdc
CB 9 Series Administrator Guide NightCharge® 120-240V AC @ 3 Amps NO Area Light | 12VDC 10 Amps Product wiring diagram shown reasonably represents current offering and is intended to assist in component identification and service. Earlier product production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact manufacturer to confirm replacement part version and availability. -
Page 23: Multi-Tap Transformer (Power Brick) 110-347Vac
CB 9 Series Administrator Guide Multi-Tap Transformer (Power Brick) 110-347VAC Product wiring diagram shown reasonably represents current offering and is intended to assist in component identification and service. Earlier product production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact manufacturer to confirm replacement part version and availability. -
Page 24: Locating Unit Serial Numbers
CB 9 Series Administrator Guide 7 Locating Unit Serial Numbers Remove the access plate cover with the special security bit. The serial number will be listed on the manufacturer’s label located on the backside of the access plate cover (1). -
Page 25: Maintenance Schedule
CB 9 Series Administrator Guide 8 Maintenance Schedule LEGEND Guard Tasks Technician Tasks DAILY OR WEEKLY Perform functional communications check. Action: Press Red Button Strobe activates Red LED "Call Placed" light turns on Message plays Call connects, green LED "Call Received" light turns on... - Page 26 The Surface Care Frequency table below provides general guidelines to assist in configuring a schedule. Please note that the frequency of care required to guard the Code Blue unit’s surface from damage will also be dictated by local environmental characteristics.
-
Page 27: Warranty
9 Warranty Code Blue Corporation provides a limited warranty on this product. Refer to your sales agreement to establish the terms. In addition, Code Blue’s standard warranty language, as well as information regarding support for this product while under warranty, is available at www.codeblue.com/support... -
Page 28: Download Information
CB 9 Series Administrator Guide 10 Download Information Code Blue now has a centralized location where you can find installation, setup, information, configuration and operation instructions. Admin Guides: www.codeblue.com/resources/guides Frimware: www.codeblue.com/resources/firmware Maintenance Tips: www.codeblue.com/support Product Sheets: www.codeblue.com/resources/sheets Specifications: www.codeblue.com/resources/specifications For Legacy Product Information: www.codeblue.com/legacy-products... -
Page 29: Legal & Regulatory Information
This digital apparatus complies with CAN ICES-3 (Class A). The product shall and fitness for a particular purpose. Code Blue shall not be liable or be connected using a shielded network cable (STP) that is properly responsible for incidental or consequential damages in connection with grounded.
