- Page 1 IA3100 Legacy Speakerphone Installation & Setup Administrator Guide 800.205.7186 www.codeblue.com •...
-
Page 2: Table Of Contents
IA3100 Administrator Guide Table of Contents Section Page 2 Introduction...................3 3 Getting Started................4 4 Basic Programming..............5 5 Initial Calling In Commands............6 6 Important Initial Programming Information........7 7 First Time Programming Instructions.........8 8 Advanced Programming.............10 9 Troubleshooting................16 10 Warranty..................18 Code Blue... -
Page 3: Introduction

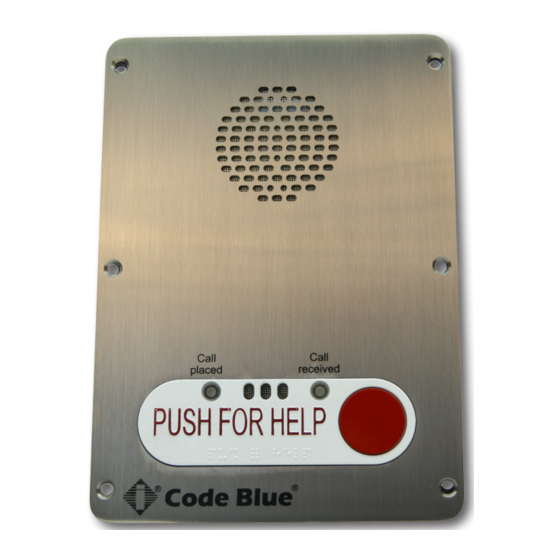

IA3100 User Guide. IA3100 Legacy Speakerphone Note: The IA3100 has been discontinued, or “end of life,” in production and repair. However, if you need to replace the microphone, speaker or button(s), you may still order replacements through our customer service department. -
Page 4: Getting Started
(determined by priority programming), or ring down to a PBX, and illuminate a 3/8” diameter vivid red LED indicating “Call placed.” Upon receipt of the call, the IA3100 identifies itself with either a digital voice message and/or digital location identifier (if programmed to do so), and illuminates a separate 3/8”... -
Page 5: Basic Programming
IA3100 Administrator Guide 4 Basic Programming This Fast Start instruction sheet covers the most commonly utilized features of the IA3100 Programming Commands During A Call The following commands can be used by the called 1. PROGRAMMING A PHONE NUMBER TO DIAL party after the IA3100 places a call. -
Page 6: Initial Calling In Commands
Commands on Initial Call In Command Explanation Format/Default Establish voice communication with IA3100 1<<monitor password>># (two-way monitoring) Put the IA3100 into programming or 2<<programming password>># diagnostic mode Establish silent monitoring with the IA3100 4<<monitor password>># (one-way monitoring) Code Blue 259 Hedcor Street Holland, MI 49423 USA 800.205.7186... -
Page 7: Important Initial Programming Information
PBX (if capable), or once the programmed time-out period has expired (Command 64). When you first dial into the IA3100, you will hear a Request for Acknowledge (RFA) tone. If a re- sponse is not received within five seconds, the IA3100 will hang up. Because your phone has not yet been programmed, you should press 2<<2258>># on your touch-tone keypad to enter program-... -
Page 8: First Time Programming Instructions
7 First Time Programming Instructions Enter Password 1. Call the unit from a touch-tone phone. The IA3100 will answer at the first ring. When the IA3100 answers and is ready to receive a command you will hear a Request For Acknowl- edge (RFA) tone. - Page 9 (speaker and mic are disabled). Extend the off hook time to the defined time. (see command 63) Mic gain – The IA3100 responds with a 2 / Default = Low single beep when put into high. The IA3100 responds with a double beep when put into low.
-
Page 10: Advanced Programming
The unit can be forced to hang up by pressing the # (pound) symbol for two seconds on the telephone keypad. If the # sequence is not used to hang up the IA3100, the phone is programmed to recognize a Disconnect Supervision, such as a WINK, reorder tones or revert to dial tone from the PBX or PSTN. - Page 11 IA3100 until the guard answers. message must be less than 9 seconds and will be played to the guard and at the IA3100 after the guard answers. (see command 72) message must be less than 9 seconds and will play at both ends after the guard answers.
- Page 12 FP1 or FP2 style faceplate. Ring time counter – This command sets the 43<<Ring time (two digits)>># / amount of time that the IA3100 will wait for a call Default = 30 to be answered before moving on to the next number.
- Page 13 Power loss phone number – This is a number 59<<power loss number>># Up to 16 digits that will be called when the IA3100 has lost power for 15 minutes. This feature is best used when it has been programmed to dial a specific display phone.
- Page 14 CB3100 as “Call Progress Tone Monitoring,” this feature turns off or on the phone’s ability to allow a user to hear the IA3100 place its call and progress through the call sequences. Best use of 0 = Speaker is disabled during this feature is when two IA3100s are sharing one entire call.
- Page 15 This command will cause the IA100 to hang up and perform a self check. When the self check is complete, the IA3100 will call the “Call Back Number” and report with either a single tone for a failure or a double tone for a pass.
-
Page 16: Troubleshooting
How do I program an analog emergency speakerphone or “call box”? To program an IA4100, IA3100 and IA500 series phone, you need to use an analog phone or an IP phone that pushes DTMF tones and call the extension or phone number of the emergency phone. - Page 17 How do I program the IA3100 to work on a ring-down line? Call into the Code Blue unit’s phone number and enter program mode 2<password>#. Key in 354#. This will set the IA3100 to operate in ring-down mode. Press and hold # down for two seconds to exit program mode.
-
Page 18: Warranty
If Code Blue chooses to repair the Unit on site, this warranty covers the costs of the parts used only. Code Blue does not pay for travel, freight, dealer service or any other labor charges associated with warranty work. If Code Blue in its sole discretion chooses to ship... - Page 19 Code Blue products other than this express warranty. This warranty is afforded by Code Blue only to Buyer and not to any other person or entity. Should any dealer or contractor elect to offer its own warranty with respect to Unit, Code Blue is not responsible for such warranty.
