DEMO MANUAL DC1546A

Quick start proceDure

1. Connect a clean ±15V power supply to the AMPV
–
AMPV turret posts at the bottom of the DC1546A
board.
2. Connect J1 to a DC590 USB serial controller using
the supplied 14-conductor ribbon cable.
3. Connect the DC590 to a host PC with a standard USB
A/B cable.
4. Run the QuikEval™ evaluation software supplied with
the DC590 or download it from www.linear.com/
software. The correct control panel will be loaded
automatically.
2
Arrow.com. Arrow.com.
Downloaded from Downloaded from
+
and The software automatically sets the LTC2754-16 outputs
according to the entries in the control panel. A square
wave option is available to test settling time. The MSPAN
jumper should be low if software span control is desired.
Additional software documentation may be available from
the Help menu item, as features may be added periodically.

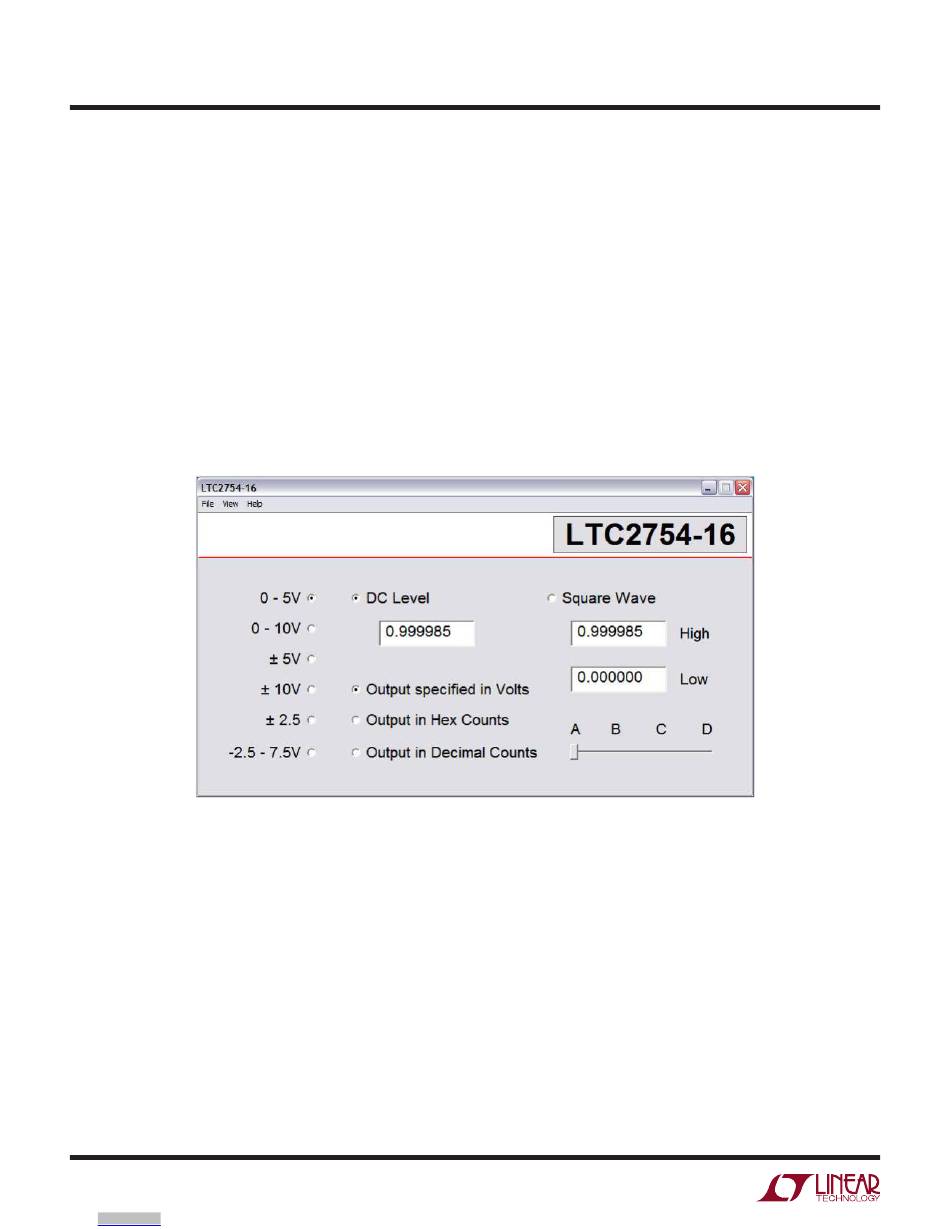

Figure 2. QuikEval Software Screenshot
DC1546Af
