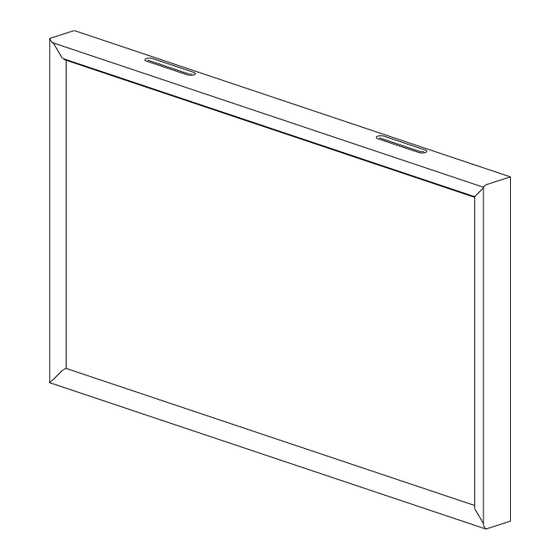

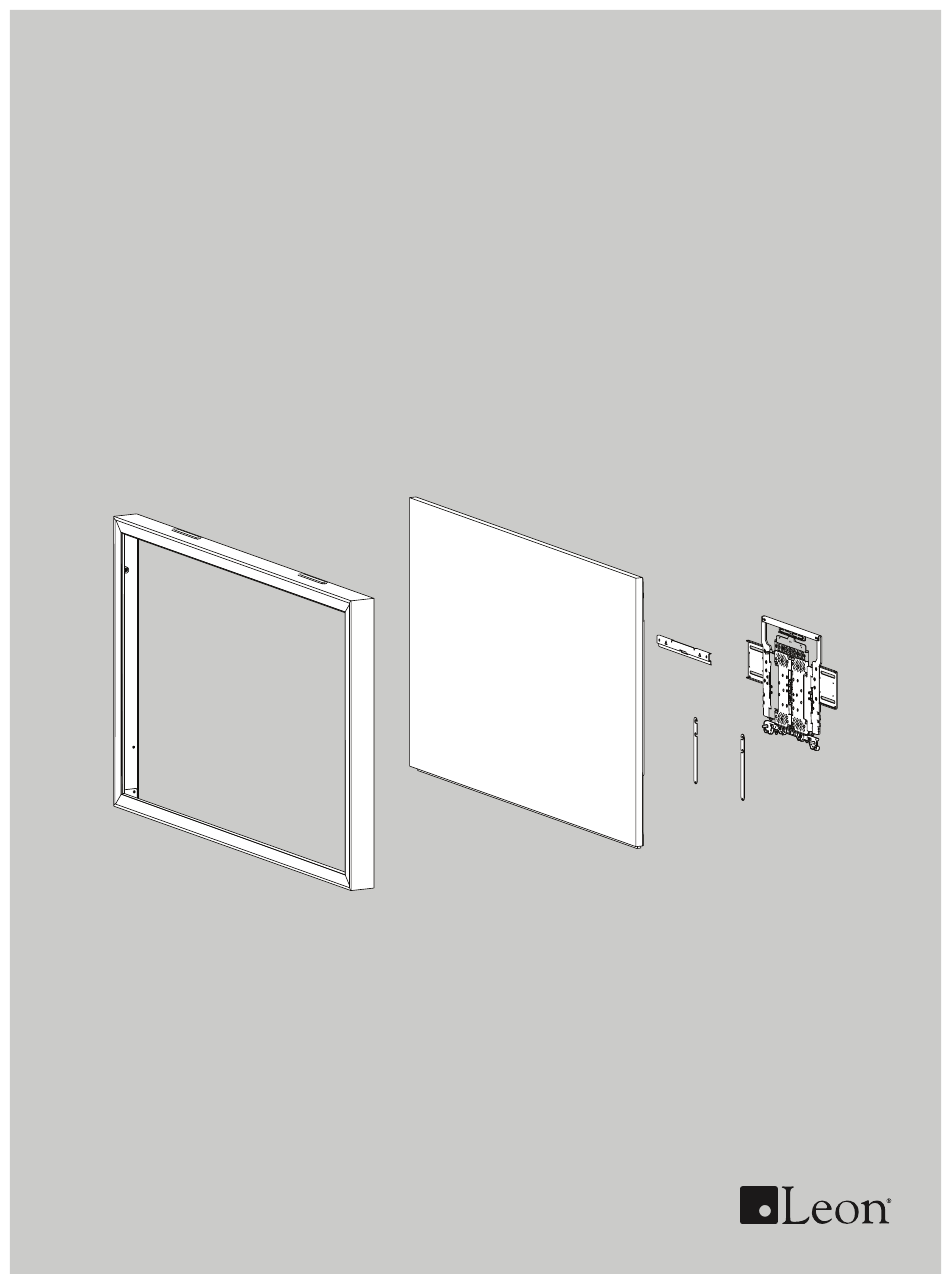

- Page 1 Leon Studio Frame ™ for Sony BRAVIA XR Installation Instructions...
-
Page 2: What's Included
WHAT’S INCLUDED TOOLS REQUIRED Phillips Head Flathead Screw Driver Screwdriver (PH2:1-1/2) #6-1/2” Phillips Head Corner Brace Display Clamp Frame Mount Bracket Screw Drawings not to scale 46mm Dovetail Joiner M5 x 10mm Phillips M5 x 10mm Thumb Sensor USB Cable Head Screw Screw #4-1/2”... - Page 3 Bracket & Mount TV to the Wall Install the wall mount bracket (SU- WL855 bracket recommended, *not provided by Leon) and mount TV to wall. Be sure to follow SU-WL855 bracket installation instructions to mount your TV. Brackets can damage the walls...
- Page 4 Step 4 XR-75X93L Attach Hem Bars to XR-65X93L Display Install VESA Hem Bars J to reinforce the bottom of the frame. Loosen the two M6 screws from the back of the SU- WL855 bracket (provided with bracket). This creates clearance between the back of the display and the front of the wall mount to hook your VESA Hem Bars onto the M6 screws as shown.
- Page 5 Step 7 Install Corner Braces Once dovetail joiners are installed into all 4 corners, make any final adjustments to the corners to ensure proper alignment. Then, while holding the corners together, fasten a Corner Brace B with the provided #6 x ½” screws A into each of the 4 corners.
- Page 6 TV’s cable management area. Plug the App Installation USB K into the USB port on the side of your display. Your Studio Frame installation is complete! Now follow app installation guide to install your Sony Art Frame Gallery. NOTE: To gain full functionality of your Sony remote control, you will need to add an IR repeater to your installation.
- Page 7 Studio Frame Leon warrants to the first end-user purchaser that any Wood Housing / Frame utilized by the Product, when purchased from an authorized Leon Dealer, will be free from manufacturing defects from the date of shipment for a period of one (1) year. If any manufacturing defect exists in the Wood Housing / Frame so long as the customer promptly notifies Leon of the defect within the warranty period and, if requested by Leon, returns the defective part(s), Leon will at its option and expense during the warranty period, either repair the defect or replace the Product with a new or remanufactured Product or a reasonable equivalent.
- Page 8 Questions? For additional support, call customer service 1 (888) 213-5015 | Mon - Fri 8 am-6 pm EST Leon is a registered trademark of Leon Speakers, Inc ©2023 REF-25-132_Studio_Frame_20231106...
