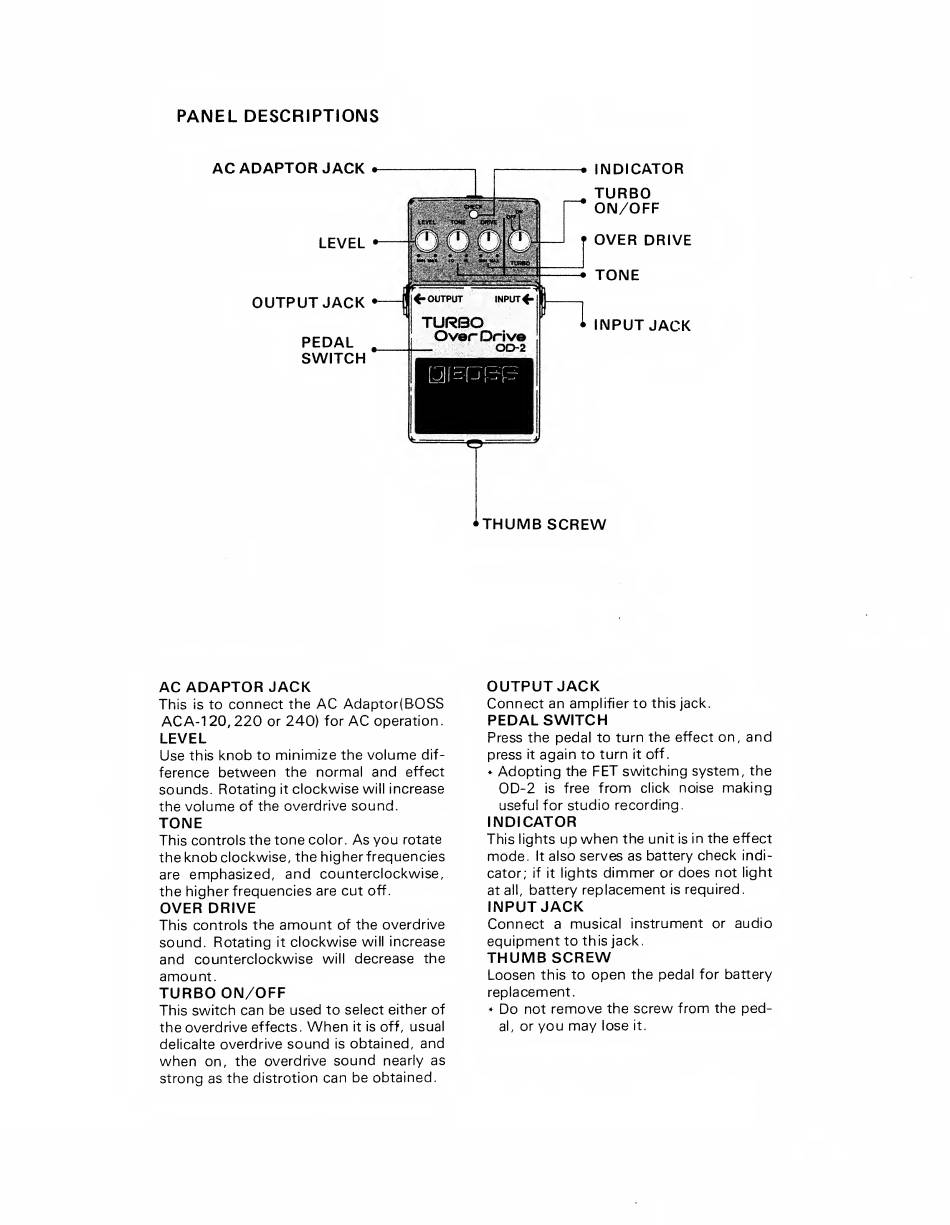

PANEL DESCRIPTIONS
AC ADAPTOR JACK
LEVEL
OUTPUTJACK *
PEDAL
SWITCH
TURBO
OverDrive
002
INDICATOR
TURBO
ON/OFF
OVER DRIVE
TONE
INPUT JACK
THUMB SCREW
AC ADAPTOR JACK
This is to connect the AC Adaptor(ROSS
AC A-120, 220 or 240) for AC operation.
LEVEL
Use this knob to minimize the volume dif¬
ference between the normal and effect
sounds. Rotating it clockwise will increase
the volume of the overdrive sound.
TONE
This controls the tone color. As you rotate
the knob clockwise, the higher frequencies
are emphasized, and counterclockwise,
the higher frequencies are cut off.
OVER DRIVE
This controls the amount of the overdrive
sound. Rotating it clockwise will increase
and counterclockwise will decrease the
amount.
TURBO ON/OFF
This switch can be used to select either of
the overdrive effects. When it is off, usual
delicalte overdrive sound is obtained, and
when on, the overdrive sound nearly as
strong as the distrotion can be obtained.
OUTPUT JACK
Connect an amplifier to this jack.
PEDAL SWITCH
Press the pedal to turn the effect on, and
press it again to turn it off.
* Adopting the FET switching system, the
OD-2 is free from click noise making
useful for studio recording.
INDICATOR
This lights up when the unit is in the effect
mode. It also serves as battery check indi¬
cator; if it lights dimmer or does not light
at all, battery replacement is required.
INPUT JACK
Connect a musical instrument or audio
equipment to this jack.
THUMB SCREW
Loosen this to open the pedal for battery
replacement.
* Do not remove the screw from the ped¬
al, or you may lose it.
