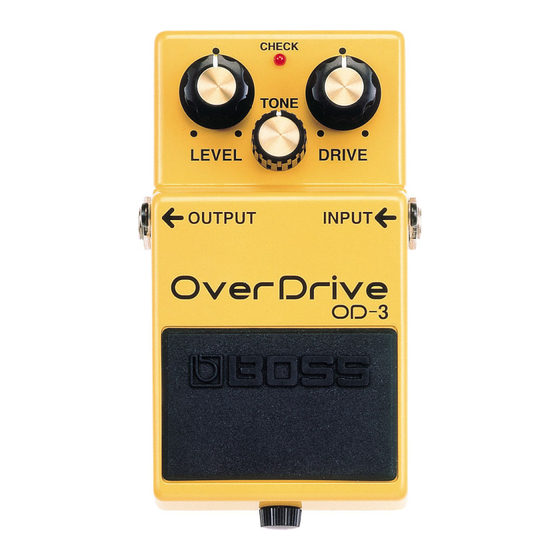

Boss OD-3 Owner's Manual

Overdrive
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
AC
DC
AC & BATTERY
POWERED
FET
1

Advertisement

Table of Contents
loading

Related Manuals for Boss OD-3

Summary of Contents for Boss OD-3

  • Page 1 Owner's Manual AC & BATTERY POWERED...
  • Page 2 Thank you, and congratulations on your choice of BOSS OD-3 OverDrive. Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (page 16; page 4). These sections provide important informa- tion concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this manual should be read in its entirety.
  • Page 3 FEATURES • Equipped with a newly developed "Dual-Stage overdrive circuit." • Offers a long sustain that is even more powerful than previous overdrive units. • Creates a truly natural overdrive sound that offers just the right amount of compression.

  • Page 4: Important Notes

    IMPORTANT NOTES In addition to the items listed under “USING THE UNIT SAFELY” on page 16, please read and observe the following: Power Supply • Do not use this unit on the same power circuit with any device that will generate line noise (such as an electric motor or variable lighting system).

  • Page 5: Maintenance

    Maintenance • For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non- abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.

  • Page 6: Panel Descriptions

    PANEL DESCRIPTIONS AC Adaptor Jack Accepts connection of an AC Adaptor (op- tionally available BOSS PSA-Series). By using an AC Adaptor, you can play without being concerned about how much battery power you have left. * If there are batteries in the unit while an AC adaptor is being used, normal operation will continue should the line voltage be inter- rupted (power blackout or power cord dis-...

  • Page 7: Output Jack

    CHECK Indicator This indicator shows whether an effect is ON/OFF, and also doubles as the Battery Check indicator. The indicator lights when an effect is ON. If this indicator goes dim or no longer lights while an effect is ON, the battery is near exhaustion and should be replaced imme- diately.
  • Page 8 TONE Knob LEVEL Knob This knob adjusts the level of the effect sounds. DRIVE Knob This adjusts the amount of overdrive. Rotating it clockwise increases the effect, whereas counterclockwise rotation reduces the effect. TONE Knob This controls the tone. Rotating the knob...

  • Page 9: Making The Connections

    MAKING THE CONNECTIONS AC Adaptor ( PSA-Series; Optional ) OUT DC 9V / 200 mA Amplifier * Inserting a plug into the Input Jack will automati- cally switch the unit on. * Before connecting or disconnecting any patch cords, be sure all the volume controls in your system are set to minimum.

  • Page 10: Operating The Unit

    1 When you have made the necessary connections, set the knobs as shown in the illustration. 2 Depress the pedal switch to turn the effect on. (Make sure the CHECK indica- tor lights.) 3 Adjust the depth of the Overdrive effect using the DRIVE knob.
  • Page 11 4 Adjust the tone using the TONE knob. 5 Adjust the LEVEL knob so that the level of the sound obtained when the effect is on is equal to that obtained when it is off.

  • Page 12: Changing The Battery

    CHANGING THE BATTERY When the indicator goes dim or no longer lights while an effect is on, it means that the battery is nearly dead and must be re- placed. Replace the battery following the steps below. Battery Snap Cord Battery Snap 9V Battery 1 Loosen the thumbscrew at the front of...

  • Page 13: Setting Examples

    SETTING EXAMPLES OD-3 Overdrive Sound Hard Overdrive Sound Booster...

  • Page 14: Specifications

    SPECIFICATIONS OD-3: OverDrive Nominal Input Level ... -20 dBu Input Impedance ... 1 M Nominal Output Level ... -20 dBu Output Impedance ... 1 k Equivalent Input Noise Level ... -115 dBu (IHF-A Weighted, Typ.) Controls ... Pedal Switch, DRIVE Knob, LEVEL Knob, TONE Knob Indicator ...
  • Page 15 Dimensions ... 73 (W) x 129 (D) x 59 (H) mm Weight ... 410 g/ 15 oz (including battery) Accessories ... Owner’s Manual, Dry Battery; 6F22/ 9 V(Carbon), Options ... AC Adaptor PSA-Series * 0 dBu = 0.775 Vrms * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

  • Page 16: Using The Unit Safely

    Used for instructions intended to alert the user to the risk of death or severe WARNING injury should improperly. Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.
  • Page 17 (except when this manual provides specific instruc- tions directing you to do so). Refer all servicing to your dealer, or qualified Roland service personnel. • Never use or store the unit in places that are: • Subject to temperature extremes (e.g., direct sunlight in an enclosed...
  • Page 18 • Use only the specified AC adaptor (PSA-Series), and make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.
  • Page 19 • Immediately turn the power off, remove the AC adaptor from the out- let, and request servicing by your dealer or qualified Roland service personnel when: • The AC adaptor or the power-sup- ply cord has been damaged; or • Objects have fallen into, or liquid has been spilled onto the unit;...
  • Page 20 • Batteries must never be recharged, heated, taken apart, or thrown into fire or water. CAUTION • The unit and the AC adaptor should be located so their location or posi- tion does not interfere with their proper ventilation. • Always grasp only the plug or the body of the AC adaptor when plug- ging into, or unplugging from, an outlet or this unit.
  • Page 21 • Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children. • Never climb on top of, nor place heavy objects on the unit. •...
  • Page 22 • If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following pre- cautions (page 12). • Carefully follow the installation instructions for batteries, and make sure you observe the correct polar- ity.
  • Page 23 For EU Countries This product complies with the requirements of European Directive 89/336/EEC.
