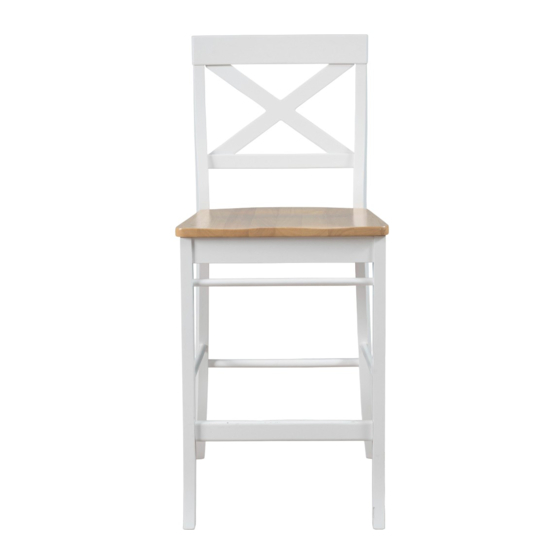

Hamptons Barstool
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
50mm
spring
screw
washer
x6
x6
E
32mm screw
x8
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
screw
dowel
pin
x6
x6
F
allen key
x1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Hamptons Barstool
Summary of Contents for Mocka Hamptons Barstool
- Page 1 32mm screw allen key Hardware Supplied Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 Attach base to frame and secure with 4 x screws screw pins (C). Tighten with an allen key (F). (A), 4 x spring washers (B) and 4 x screw pins (C). Tighten with an allen key (F). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Attach seat to frame as shown and secure with 8 x screws (E). Tighten Once assembled lift furniture into place, do not drag. Ensure unit is with a screwdriver. balanced and steady before use. You’re done, enjoy mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
