Non Spring Return Actuators for Ball Valves
Product Bulletin

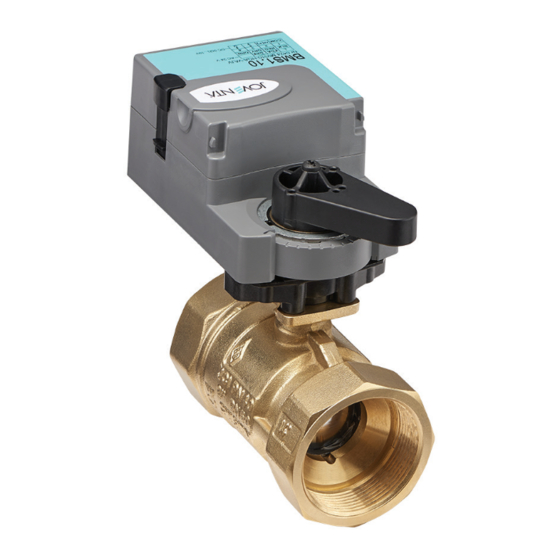

The New Series Electric Non Spring Return
Actuators are used to provide accurate positioning
on Joventa
JVx05 Series DN15 up to DN50
®
ball valves in Heating, Ventilating and
Air Conditioning (HVAC) applications from 8 to 35 Nm
rated torque.
■ Automatic Signal Input Detection model On/Off, Floating and Proportional
Increase availability at distributors. Simplify retrofit.
■ High speed actuator model
Allow applications in loop that require a quick response time.
■ Optional Auxiliary Switch & potentiometer feedback
Provides line voltage capable single Pole Double-Throw (SPDT) switch and 140Ω, 1KΩ, 2KΩ or 10KΩ feedback
potentiometric.
■ Direct-Coupled Design
Requires no separate linkage because they are ready for direct attachment to Johnson Controls JVx05 Series valves
by driving one captive screw.
■ Rugged IP54 Rated Enclosure
Provides a high degree of protection from dust, splashing water and rough handling.
■ Electronic Stall Detection
Protects from overload at all angles of rotation. The actuator may be stalled anywhere in its rotation range without the
need for mechanical end switches.
■ Microprocessor-controlled Brushless DC Motor
Provides constant runtime independent of torque and increases life cycle by reducing wear.
JV_BAS / BMS_01 2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JOVENTA BAS Series
Summary of Contents for JOVENTA BAS Series

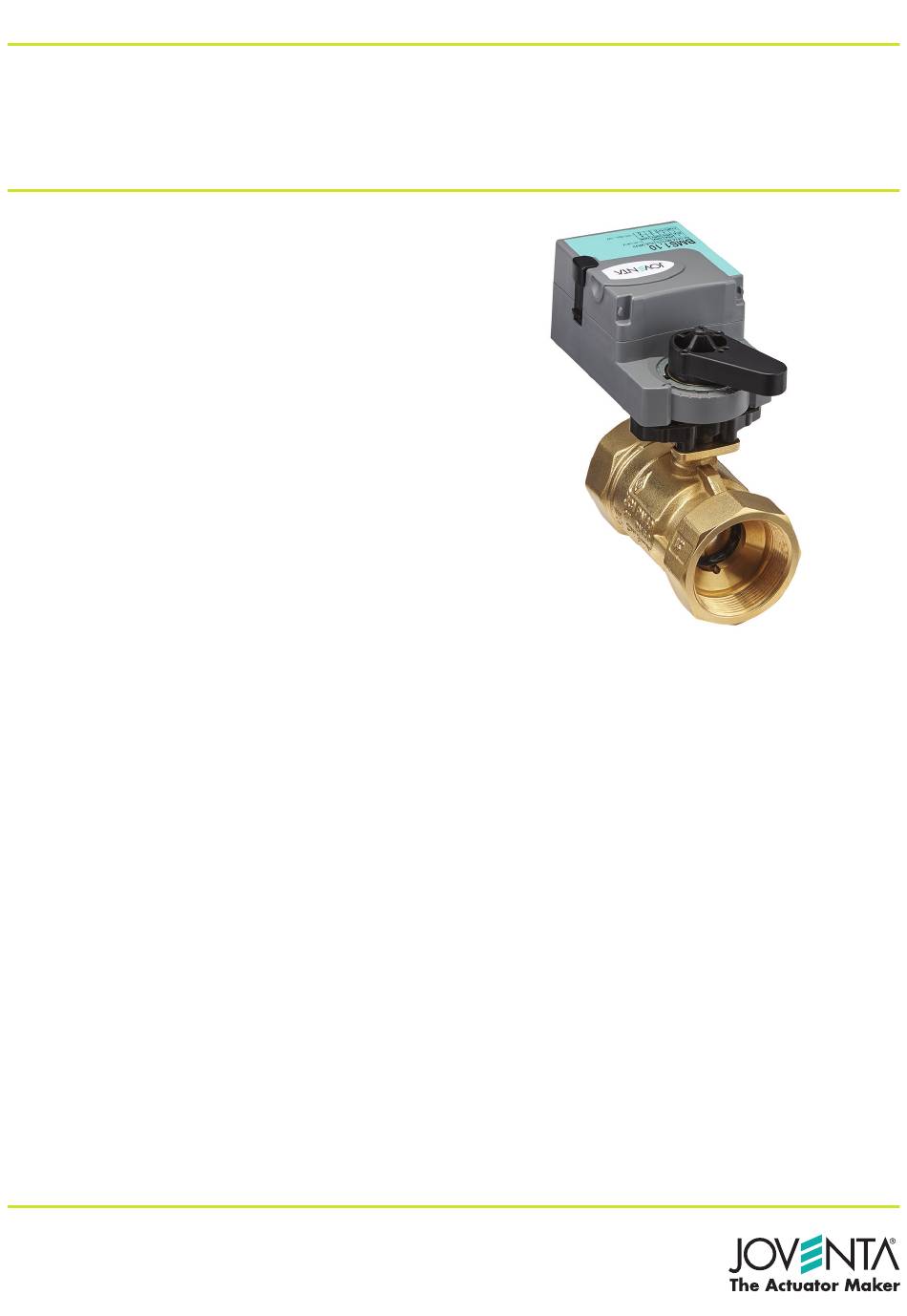

- Page 1 Non Spring Return Actuators for Ball Valves Product Bulletin The New Series Electric Non Spring Return Actuators are used to provide accurate positioning on Joventa JVx05 Series DN15 up to DN50 ® ball valves in Heating, Ventilating and Air Conditioning (HVAC) applications from 8 to 35 Nm rated torque.
-
Page 2: Installation
JV_BAS / BMS_01 2022 Installation Install the ball valve with the actuator at or above the center line of the horizontal piping. WARNING: In steam applications, install the valve with the stem horizontal to the piping. Failure to follow this precaution may shorten the life of the actuator. - Page 3 JV_BAS / BMS_01 2022 Mounting the Actuator Perpendicular to the Valve 1. Loosen but do not remove the screw that holds the 5. Reinsert the handle perpendicular into the actuator and actuator to the valve. tighten the handle screw. 2. Remove the actuator from the valve. 3.
- Page 4 JV_BAS / BMS_01 2022 M9000-561 Thermal Barrier The Thermal barrier optional kit extends the application of these actuators in combination with JVx05 ball valves. Linking together valve and actuator using the M9000-561 you can include applications with low pressure steam up to 123 °C at 103kPa (250 °F at 15 psig) and hot water up to 140 °C (284 °F).
-
Page 5: Accessing The Dip Switches
JV_BAS / BMS_01 2022 Accessing the DIP Switches Locate the oval cover on the front of the unit and pull the cover outward. See installation sheet for further information, DIP switches and LEDs meaning. RA 2-10 RA 2-10 Span Adj. Offset Adj. - Page 6 JV_BAS / BMS_01 2022 Setting the SPAN and OFFSET Proportional Command Signal to Other Values The actuator has the possibility to adjust the input signal changing the working range and the starting point of the signal. The valid Offset values are 0 to 10 VDC and the valid Span values are 2 to 10 VDC. Adjusting span and offset the feedback voltage of the actuator is automatically set as 2-10 VDC.
-
Page 7: Ordering Informations
JV_BAS / BMS_01 2022 Line voltage models and High Speed models (ON/OFF and Floating) The BAS2.xx operates with AC 100 to 240 V (AC 85 to 264 V). The actuator is design to be used with ON/OFF or Floating controls in HVAC systems. The BAS1.08Z and BAS1.16Z operate with 24 V DC/AC. -
Page 8: Technical Specifications
JV_BAS / BMS_01 2022 Technical Specifications BASx.08Z BAS1.08Z BAS2.08Z Product Code Control Type On/Off, Floating Nominal AC AC 24 V ±20%, 50/60 Hz: 12.7 VA Power 230 V, DC 24 V ±10%: 6.5 W 50/60 Hz:0.08 A Transformer ≥13 VA Input 24 VAC ±20%, 24 VDC ±10% 100...240 VAC (AC 85...264 V) at 50/60 Hz... - Page 9 JV_BAS / BMS_01 2022 Technical Specifications BASx.16Z BAS1.16Z BAS2.16Z Product Code Control Type On/Off, Floating AC 24 V ±20%, 50/60 Hz: 11.6 VA Nominal AC 230 V, Power DC 24 V ±10%: 5.4 W 50/60 Hz: 0.07 A Transformer ≥13 VA Input 24 VAC ±20%, 24 VDC ±10% 100...240 VAC (AC 85...264 V) at 50/60 Hz...
- Page 10 JV_BAS / BMS_01 2022 Technical Specifications BxSx.35 BAS2.35 BMS2.35 BMS1.35 Product Code Control Type On/Off, Floating Proportional On/Off, Floating Proportional Power Nominal AC 230 V, Nominal AC 230 V, 24 V ±20%, 50/60 Hz. 6.2 VA 24 VDC ±10%, 1.9 W 50/60 Hz: 0.04 A 50/60 Hz: 0.04 A Transformer...
- Page 11 JV_BAS / BMS_01 2022 Dimensions Optional Thermal Barrier 80.6...
- Page 12 JV_BAS / BMS_01 2022 Accessories The Non Spring Return Actuators for Ball Valves line has several kit and accessories that can be ordered separately and mounted on site. Code Number Description NEMA 4X, IP66/67 Weathershield Kit for JVx05 Series Ball application of BxD, BMS1.10, BxF.03 and BxF.08 Series M9000-342 Electric Actuators (quantity 1) M9000-400...
- Page 13 JV_BAS / BMS_01 2022 Auxiliary Switch & Potentiometer Feedback Kit Mounting the kit, a connection is created between the shaft hub of the actuator and the kit. The position of the actuator is transferred to the gear’s kit. 1. Before mounting the kit, rotate the actuator and the kit itself counter clock wise till the end position in order to align the holes on the coupler with the pins on the kit and snap the kit onto the BMS1.10 actuators.
- Page 14 Branch Officies: Principal Cities World-wide Joventa is registered trademarks of Johnson Controls ® All other marks herein are the marks of their respective owners. © Copyright 2020 Joventa. All rights reserved. Any unauthorized use or copying is strictly prohibited www.joventa.fr...
