Modulating mixing actuators

Advertisement

Quick Links

V
A
L
V

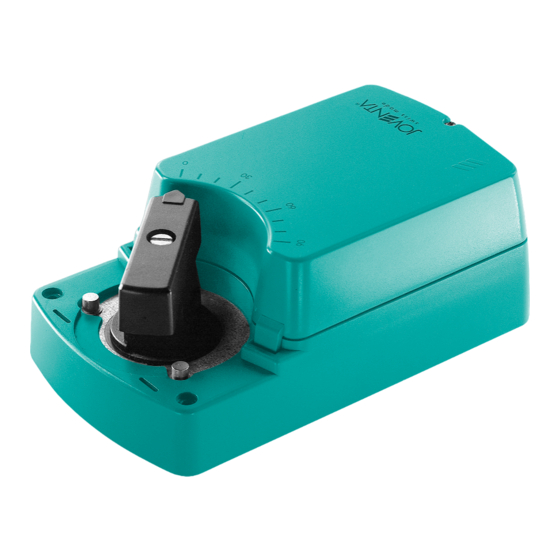

Application

The JOVENTA
VALVE
mixing-actuator series is intended
for operating water valves such as
mixing valves, butterfly valves,
inter-flange dampers and ball
valves.
The
mixing-actuator
designed so that it can be fitted,
using the relevant fitting kit, to many
different makes of valves.
The universal coupler between the
actuator and valve make an
uncomplicated application pos-
sible.

Key features

DC0...10V or 0...20 mA
control
Load-independent running time
Plug-in terminal block
connection
Selectable direction of rotation
Manual release button
2 adjustable auxiliary switches
See back page for settings
Automatic shut-off at end
position (overload switch)
Energy saving at end positions
Actuators available
with 1 m halogen-free cable
Customized versions available
Devices meet CE
requirements

Accessories

Mixer mounting kits
ZMA001 for Esbe mixers
ZMA002 for Centra-Duplex
mixers
ZMA003 for Holter mixers
ZMA004 for GF ball valves
Subject to design modifications without notice.
E
MODULATING Mixing Actuators

Nomenclature/Specification/Technical data

MM1.1
electric
MM1.1S
. . . . . . K
is
Actuator
Torque
Running time
Supply voltage
Frequency
Power consumption
- Running
- At end position
Dimensioning
Weight
Control signal
Control signal
Position signal
Angle of rotation / working range
Angle of rotation / limitation
Service lifetime
Auxiliary switches
Setting range / adjustable
Noise level
Protection class
Degree of protection
Cable aperture connection
Mode of action
Ambient conditions
- Operating temperature
- Storage temperature
- Humidity
Service
Standards
AC/DC24V
AC/DC24V
with 2 auxiliary switches
with 1 m halogen-free cable
MM1.1(S)
16 Nm
120 s
AC/DC24V
50-60 Hz
3.0 W
0.7 W
6.0VA / 3.6A @ 2 ms
1.1 kg
Y1
DC0...10V
Y2
0...20 mA
U
DC0...10V
90° (93° mech.)
None
60,000 rotations
3(1.5)A, AC24V
5°...85° < infinity
45 d B (A)
II
IP 54 (cable downwards)
M16 x 1.5
Type 1
–20...+50°C / IEC 721-3-3
–30...+60°C / IEC 721-3-2
5...95% r.F.
Maintenance free
Mechanics
Electronics
EMC Emissions
EMC Immunity
4.15
EN 60 529 / EN 60 730-2-14
EN 60 730-2-14
EN 50 081-1:92 / IEC 61 000-6-3:96
EN 50 082-2:95 / IEC 61 000-6-2:99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM1.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for JOVENTA MM1.1

  • Page 1 MODULATING Mixing Actuators 4.15 Application Nomenclature/Specification/Technical data MM1.1 AC/DC24V The JOVENTA VALVE electric MM1.1S AC/DC24V with 2 auxiliary switches mixing-actuator series is intended ..K with 1 m halogen-free cable for operating water valves such as...
  • Page 2 MODULATING Mixing Actuators 4.15 Wiring diagram Dimensions in mm ▼ AC24V ±20% DC24V ±10% 0…20 mA AC0…10V DC0…10V ▼ Changing the direction 67 .5 of rotation 94.5 Microswitch d2 32.5 ▼ 32.5 ▼ In order to reverse the direction of rotation, move microswitch Setting the auxiliary switches d2 to the ON position.
