JOVENTA SILENCE Quick Start Manual

S I L E N

Application

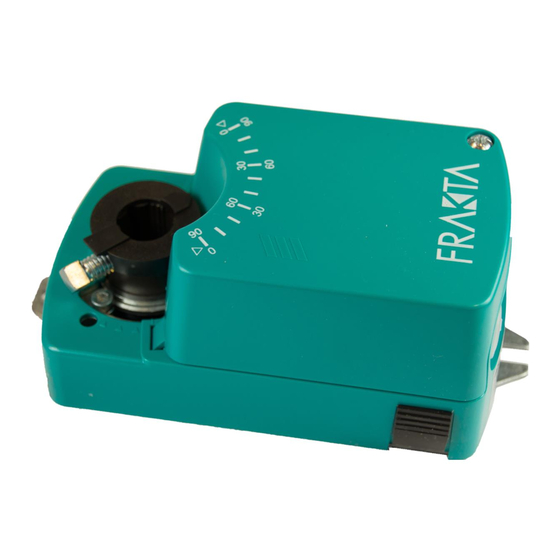

The JOVENTA SILENCE
damper-actuator series have been
developed to operate small and
medium air dampers in ventilation
and air conditioning systems.
The compact design and universal
adapter fitted with limitation of
rotation angle make this JOVENTA
actuator highly versatile.

Key features

2- or 3-point control
Load-independent running time
Up to 5 actuators in parallel
operation possible
Plug-in terminal block connection
Simple direct mounting with
universal adapter for fitting to
Ø 6-mm to 16-mm shaft or with
Z01DN adapter kit for 8, 10, 11
and 12 mm square shaft.
45-mm min shaft length
Selectable direction of rotation
Limitation of rotation angle
Manual release button
2 adjustable auxiliary switches
See back page for settings
Automatic shut-off at end
position (overload switch)
Energy saving at end positions
Actuators available
with 1m halogen-free cable
Customized versions available
Devices meet
CE requirements
Subject to design modifications without notice.
C E 2- and 3-POINT Actuators

Nomenclature/Specification/Technical data

DAN1.N
electric
DAN1.SN
DAN2.N
DAN2.SN
. . . . . . . K
Actuator
Torque
Damper area*
Running time
Supply voltage
Frequency
Power consumption
- operating
- At end position
Dimensioning
Weight
Control signal
Position signal
Angle of rotation / working range
Angle of rotation / limitation
Service lifetime
Auxiliary switches
Setting range / adjustable
Noise level
Protection class
Degree of protection
Cable aperture connection
Mode of action
Ambient conditions
- Operating temperature
- Storage temperature
- Humidity
Service
Standards
* Caution: Please note damper manufacturer's information concerning the open/close torque.
AC/DC24V
AC/DC24V with 2 auxiliary switches
AC230V
AC230V with 2 auxiliary switches
with 1 m halogen-free cable
DAN1.(S)N
4 Nm
0.8 m 2
35 s
AC/DC24V
50-60 Hz
2.5 W
0.75 W
4.1VA/2A@2ms
0.9 kg
2-point and 3-point
None
90° (93° mech.)
0°...30° and 90°...60°
60,000 rotations
3(1.5)A, AC230V
5°...85° < infinity
40 d B (A)
II
IP 50
M16 x 1.5
Type 1
–20...+50°C / IEC 721-3-3
–30...+60°C / IEC 721-3-2
5...95% r.F.
Maintenance free
Mechanics
Electronics
EMC Emissions
EMC Immunity
2.11
DAN2.(S)N
4 Nm
0.8 m 2
35 s
AC230V
50-60 Hz
4.0 W
3.0 W
5.0VA/0.1A@2ms
0.9 kg
EN 60 529 / EN 60 730-2-14
EN 60 730-2-14
EN 50 081-1:92 / IEC 61 000-6-3:96
EN 50 082-2:95 / IEC 61 000-6-2:99
