Summary of Contents for Chauvet Ovation REVE E-3 IP

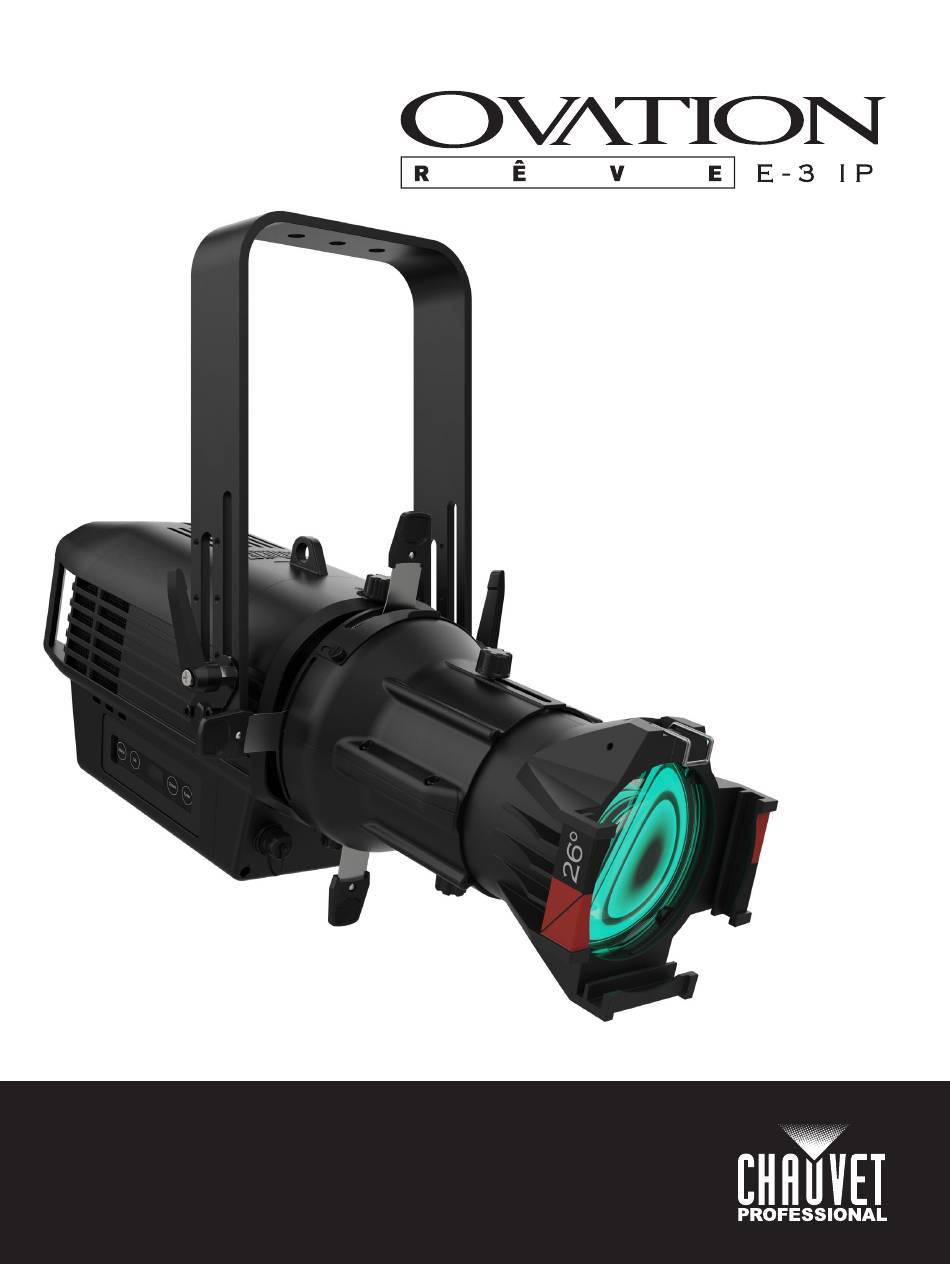

- Page 1 User Manual Model ID: OVATIONREVEE3IP...
- Page 2 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... 1 Claims ......................1 Manual Conventions ..................1 Symbols ......................1 Safety Notes....................2 FCC Statement of Compliance ..............3 RF Exposure Warning for North America and Australia........ 3 Expected LED Lifespan................. - Page 4 Table of Contents Dimmer Curve ........................ Dimmer Profiles......................Color Calibration ......................LED Frequency ......................Fan Mode ........................Back Light ........................Key Lock ........................System Information ......................Virtual Color Wheel ..................19 Virtual Color Wheel Chart ....................Color Temperature Chart ....................Color Temperature DMX Chart ..................
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate a claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Ovation Rêve E-3 IP User Manual Rev. 5... -
Page 7: Fcc Statement Of Compliance
Before You Begin FCC Statement of Compliance This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Introduction

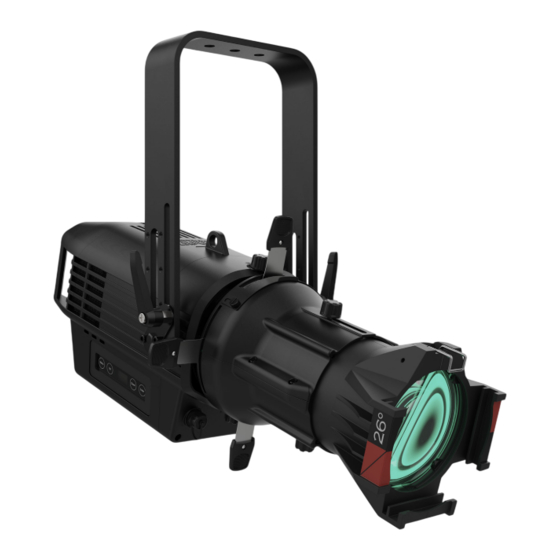

Introduction 2. Introduction Description Ovation Rêve E-3 IP is an outdoor-ready, LED Ellipsoidal Reflector Spotlight (ERS)-style lighting fixture that is virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications—both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16- bit dimming curves and speeds to complement any lighting scheme, anywhere. -
Page 9: Product Overview
Introduction Product Overview Beam focus knobs (x2) Bracket adjustment knobs (x2) Framing shutters (x4) Power in USB port Focus mode button 5-pin DMX Power out Handle / in /out Mounting Safety loop bracket Lens tube Display Menu buttons (sold separately) Ovation Rêve E-3 IP User Manual Rev. -
Page 10: Product Dimensions
Introduction Product Dimensions 20.84 in (529 mm) 6.28 in (24.72 mm) 19.75 in (502 mm) 3.15 in (80 mm) 12.72 in (323 mm) Ovation Rêve E-3 IP User Manual Rev. 5... -
Page 11: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, download Sizing Circuit Breakers from the Chauvet website: www.chauvetprofessional.com. • Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire. -
Page 12: Dmx Linking
• For more information about DMX standards or the DMX cables needed to link this product to a DMX controller, download the DMX primer from the Chauvet website: www.chauvetprofessional.com Ovation Rêve E-3 IP User Manual Rev. 5... -
Page 13: Usb Software Update
Setup USB Software Update The Ovation Rêve E-3 IP allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port. 2. -
Page 14: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. For the Chauvet Professional line of mounting clamps, go to: http://trusst.com/products/. Orientation Always mount this product in a safe position, ensuring that there is adequate room for ventilation, configuration, and maintenance. -
Page 15: Adjustable Yoke
Setup Adjustable Yoke The Ovation Rêve E-3 IP comes with an adjustable yoke for mounting in low-clearance areas. To modify the height of the yoke, do the following: Loosen the bracket adjustment knobs on both sides of the fixture. On each side of the fixture, remove the two screws and loosen the bolt attaching the plate to the mounting bracket. -
Page 16: Soft Focus Filter
Setup Soft Focus Filter The version 2 of the Ovation Rêve E-3 IP comes with the soft focus filter already pre-installed in the shutter barrel, in front of the shutter blades and is being held by four filter holders. • To remove the soft focus filter, gently squeeze and slide the filter out from under the four filter holders. -
Page 17: Operation
Operation 4. Operation Control Panel Operation Button Function <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently selected value in to the current <ENTER> function <UP> Navigates upward through the menu list or increases the numeric value when in a function Navigates downward through the menu list or decreases the numeric value when in a <DOWN>... -
Page 18: Menu Map
Operation Menu Map Refer to the Ovation Rêve E-3 IP product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address (*highest channel 001–512* Address restricted to personality chosen) Virtual Color Wheel Color Temperature 1-channel: dimmer Manual Color Mixer 5-channel: dimmer, virtual color wheel... - Page 19 Operation Main Level Programming Levels Description 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K Dimmer 0–255 3600K 3700K 3800K 3900K 4000K 4100K 4200K 4300K Preset white color temperatures. Emulates 4400K Color a tungsten lamp at the specified color 4500K Temperature temperature.
- Page 20 Operation Main Level Programming Levels Description SCurve Linear Dimmer Sets the dimmer curve Curve Square Inverse Square Linear dimmer Dimmer Dimming curves, from fast (Dimmer 1) to Mode Dimmer 1–3 slow (Dimmer 3) Deactivates color calibration Sets red LED maximum value Green Sets green LED maximum value Color...
-
Page 21: Standalone Configuration
Operation Standalone Configuration Use standalone configuration to operate the product without a DMX controller. Virtual Color Wheel Go to the Virtual Color Wheel main level. Select Virtual Color Wheel. Select the desired gel color (see Virtual Color Wheel Chart). Select the desired output level (000–255). Color Temperature To select a color temperature, do the following: Go to the Virtual Color Wheel main level. -
Page 22: Dimmer Curve
Operation Dimmer Curve To set the dimmer curve, follow the instructions below: Go to the Dimmer Curve main level. Select the desired option (SCurve, Linear, Square, or Inverse Square). Dimmer Profiles This setting determines how fast the output of the Ovation Rêve E-3 IP changes when the output value is modified. -
Page 23: Virtual Color Wheel
A chart is available at www.chauvetprofessional.com to compare Chauvet’s premixed colors with popular gel colors. This chart is for comparison purposes only and is not an assertion that Chauvet’s premixed colors match any of the gel colors listed. Virtual Color Wheel Chart... -
Page 24: Color Temperature Chart
7000K 7500K 8000K Note: The color temperatures above are simulated renditions of the color output produced compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy. Color Temperature DMX Chart Color... -
Page 25: Dmx Values
Operation DMX Values 18Ch / 14Ch1 / 14Ch2 / 12Ch 12Ch 14Ch1 14Ch2 18Ch Function Value Percent/Setting Dimmer 000 255 0–100% – Dimmer fine 000 255 0–100% 000 255 0–100% – Red fine 000 255 0–100% Green 000 ... -
Page 26: 8Ch / 6Ch / 5Ch / 1Ch
Operation 8Ch / 6Ch / 5Ch / 1Ch Function Value Percent/Setting – Dimmer 000 255 0–100% – – 000 255 0–100% – – Green 000 255 0–100% – – Blue 000 255 0–100% – – Amber 000 ... -
Page 27: Technical Information
Technical 5. Technical Information Product Maintenance To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 28: Technical Specifications
Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight Fixture only 20.84 in (529 mm) 12.72 in (323 mm) 19.75 in (502 mm) 20.6 lb (9.34 kg) w/ 5° lens extended, yoke up 42.25 in (1073 mm) 14.50 in (368 mm) 19.75 in (502 mm) 25.2 lb (11.43 kg) w/ 10°... -
Page 29: Contact Us
Contact Us Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd. Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K.
