Summary of Contents for Chauvet Ovation E-260WW

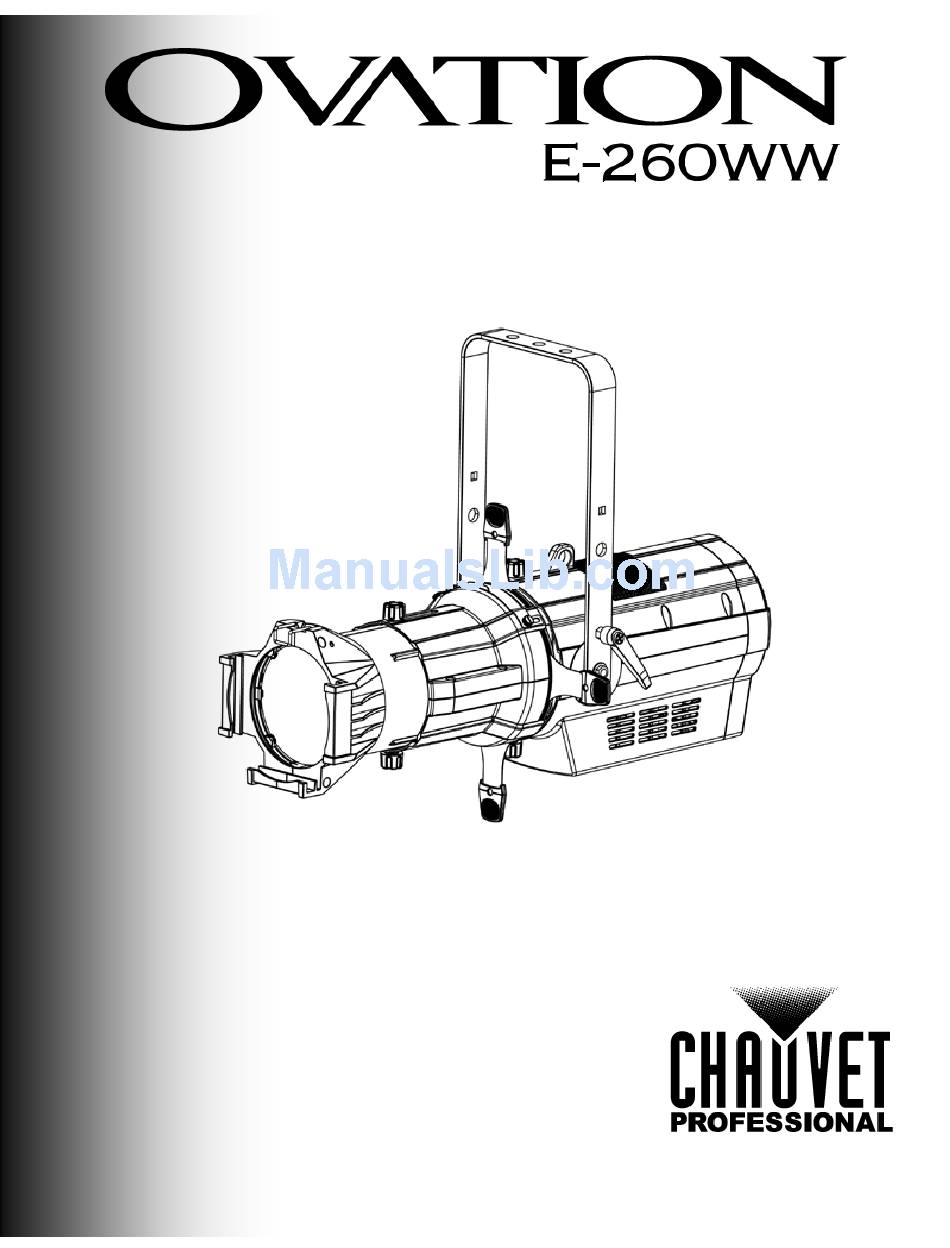

- Page 1 User Manual *Lens tubes sold separately...
- Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions.. Document The Ovation E-260WW User Manual Rev. 1 is the first edition of this manual. Go to www.chauvetprofessional.com for the latest version.
-
Page 3: Table Of Contents
Master/Slave ..................................12 Dimmer Profiles .................................. 12 LED Frequency................................... 13 Fan Mode ................................... 13 Back Light ..................................13 Run Time ................................... 13 Software Information ................................13 RDM....................................13 Configuration (DMX) .............................13 DMX Personalities ................................13 Ovation E-260WW User Manual Rev. 1... - Page 4 Table of Contents DMX Control ..................................13 DMX Values ................................14 5. Technical Information ..........................15 Product Maintenance ............................15 6. Technical Specifications ......................... 16 Returns .................................17 Contact Us ..............................18 -ii- Ovation E-260WW User Manual Rev. 1...
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs. -
Page 7: Introduction
Introduction 2. Introduction The Ovation E-260WW delivers an excellent white light with a warm color temperature and a Description beautiful flat field. It also features standard beam shaping shutters, a gobo/effect slot and lens barrels that are interchangeable with other popular ERS fixtures. Selectable dimming curves ensure smooth fading cues that intermix well with the output of conventional theatre ellipsoidals. -
Page 8: Overview
Gel Frame Holder Side View Barrel Lens Tube Light Assembly (sold separately) Engine Handle Menu Buttons Fuse Holder Display powerCON® Input 3- and 5-pin DMX In powerCON® 3- and 5-pin DMX Out Output Rear View Ovation E-260WW User Manual Rev. 1... -
Page 9: Dimensions
6.7 in 8.7 in 15 in 171 mm 222 mm 380 mm 12 in 7.1 in 305 mm 180 mm 25.4 in 645 mm Top View 6.25 in 6.9 in 159 mm 174 mm Ovation E-260WW User Manual Rev. 1... -
Page 10: Setup
0 to 100% switch. AC Plug The Ovation E-260WW comes with a power input cord terminated with a Neutrik powerCON A connector on one end and an Edison plug on the other end (U.S. market). If the power input cord that came with your product has no plug, or if you need to change the Edison plug, use the table below to wire the new plug. -
Page 11: Dmx Linking
Setup You can link the Ovation E-260WW to a DMX controller using a 3- or 5-pin DMX connection. If DMX Linking using other DMX-compatible products with the Ovation E-260WW, you can control each individually with a single DMX controller. The Ovation E-260WW uses the standard DMX data connection for the 1-, 2-, 3- and 6- channel DMX modes. -
Page 12: Mounting
CHAUVET Professional line of safety cables, go to http://trusst.com/products/. Procedure The Ovation E-260WW comes with a hanging/mounting bracket to which you can attach mounting clamps. The bracket has 13-mm holes, which are appropriate for this purpose. You must supply your own mounting clamps, so be sure the clamps are capable of supporting the weight of this product. -
Page 13: Manual Beam Focus Control
Accessory Slot The Ovation E-260WW has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately). 1. Loosen the thumbscrews on the slot cover. -
Page 14: Operation
Navigates downward through the menu list or decreases the numeric value when in a function Control Set the Ovation E-260WW starting address in the 001–512 DMX range. This enables control of up to 85 products in the 6-channel 6CH personality. Options... -
Page 15: Menu Map (Cont.)
Fixture Hours <_ _ _ _H> Shows total product hours Information Version <V_._> Shows installed software version UID: _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Ovation E-260WW User Manual Rev. 1 -11-... -
Page 16: Configuration (Standalone)
The master should be the first product in the daisy chain. Dimmer Profiles This setting determines how fast the output of the Ovation E-260WW changes when you modify the values of the white, and dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 17: Led Frequency
1. Go to the Fan Mode main level. 2. Select a fan mode (Auto, or On). This setting allows you to set the amount of time the backlight on the Ovation E-260WW’s Back Light display stays on after the last button is pressed on the control panel. -
Page 18: Dmx Values
Slow to fast 000ó051 Preset dimmer speed from display menu 052ó101 Dimmer speed mode off Dimmer Speed 102ó152 Dimmer speed mode 1 (fastest) 153ó203 Dimmer speed mode 2 204ó255 Dimmer speed mode 3 (slowest) -14- Ovation E-260WW User Manual Rev. 1... -
Page 19: Technical Information
7. Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. Do not spin the cooling fans while blowing compressed air into them. Ovation E-260WW User Manual Rev. 1 -15-... -
Page 20: Technical Specifications
Cooling System 113 °F (45 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 1, 2, 3, 6 Ordering Product Name Item Code UPC Number Ovation E-910FC 03121186 781462215347 -16- Ovation E-260WW User Manual Rev. 1... -
Page 21: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label. -
Page 22: Contact Us
+52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Ovation E-260WW User Manual Rev. 1...
