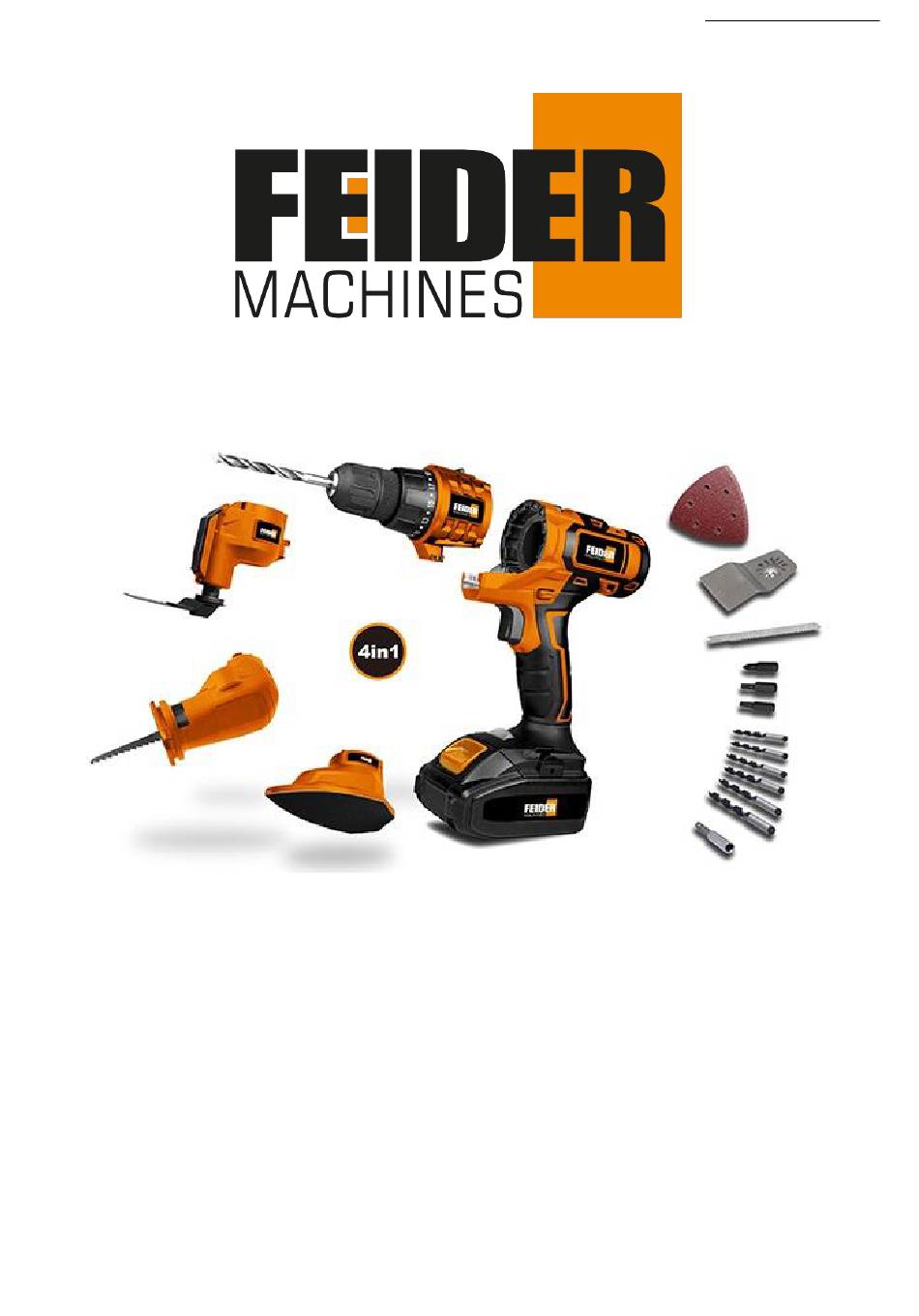

- Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS DRILL 18V 4 IN 1 FPVSS18V4IN1 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS >EN ONTENTS CONTENTS 1. INTENDED USE..............................3 2. SAFETY INSTRUCTIONS........................... 3 3. YOUR PRODUCT............................... 10 4. PACKAGE CONTENT LIST..........................11 5. TECHNICAL DATA.............................11 6. OPERATION................................ 12 7. CLEANING AND MAINTENANCE........................17 8. STORAGE................................17 9. DISPOSAL................................17 10. DECLARATION OF CONFORMITY......................18 11. -
Page 3: Intended Use
ORIGINAL INSTRUCTIONS >EN 1. INTENDED USE The cordless tool of 18 V 4 in 1 is intended for 1) Screwing screws in and out and for drilling holes in wood, metal or plastic. 2) Sawing wood, metal and plastics 3) Dry sanding of wood, plastic, putty and painting surfaces or varnished. This product is not suitable for sanding plaster-based substrates. - Page 4 ORIGINAL INSTRUCTIONS >EN d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- Page 5 ORIGINAL INSTRUCTIONS >EN f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 6 ORIGINAL INSTRUCTIONS >EN Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire. Do not heat.
- Page 7 ORIGINAL INSTRUCTIONS >EN • During charging the batteries must be placed in a well ventilated area. 2.3 ADDITIONAL SAFETY INSTRUCTIONS WARNING! Sawing or sanding can result in the formation of hazardous dusts (e.g. arising from materials with paints containing lead, materials containing asbestos, metals or some wood types) which can present a hazard to the operator or persons in the vicinity.
- Page 8 ORIGINAL INSTRUCTIONS >EN power tool. Use only undamaged sawblades in perfect condition. Bent or blunt blades can break, adversely affect the cut or cause kickback. Do not brake the sawblade after applying side pressure. The sawblade may be damaged, break or ...
- Page 9 ORIGINAL INSTRUCTIONS >EN 2.9 RESIDUAL RISKS Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards: a) Lung damage, if suitable respiratory protection is not worn; b) Cuts c) Ear damage if working without ear protection.
-
Page 10: Your Product
ORIGINAL INSTRUCTIONS >EN 3. YOUR PRODUCT 1. Keyless chuck 8. Handle 15. Lever for unlocking sawblade 2. Torque adjustment ring 9. Rechargeable battery 16. Multi-tools attachment 3. Gear selection switch 10. Unlock button for battery 17. Stainless scraper 4. Drill attachment 11. -
Page 11: Package Content List
ORIGINAL INSTRUCTIONS >EN 4. PACKAGE CONTENT LIST Remove all packaging materials. Remove remaining packaging and packing inserts (if included). Check that the package contents are complete. Check the appliance, the power cord, the power plug of charger and all accessories for transportation ... -
Page 12: Operation
, K=1.5 m/s (Sanding pad) 3.8m/s , K=1.5 m/s (Segmented saw) 4.0m/s , K=1.5 m/s (Scraping blade) Battery type Model: FPVSS18V4IN1 18V d.c. 2Ah(36Wh) Lithium-ion Charger type Model: FPVSS18V4IN1 Input 100-240V~ 50-60Hz,0.8A Output 20V d.c., 1500mA Charging time 1.5hours INFORMATION The declared vibration total value(s) and the declared noise emission value(s) have been measured in ... - Page 13 ORIGINAL INSTRUCTIONS >EN 6) Frequently monitor the charger and battery pack while connected. 7) Unplug the charger and disconnect it from the battery pack when finished. 8) Allow the battery pack to cool completely before using it. 9) Store the charger and battery pack indoors, out of reach of children. NOTE: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart.
- Page 14 ORIGINAL INSTRUCTIONS >EN 6.4 MOTOR UNIT WITH DRILL ATTACHMENT Changing the tool 1). Rotate the keyless chuck (1) counterclockwise, until the drill chuck aperture is large enough to accommodate the tool. 2). Insert the tool as far as possible into the keyless chuck (1). 3.
- Page 15 ORIGINAL INSTRUCTIONS >EN 1) Press the sanding sheet evenly onto the sanding plate. Ensure that the holes in the sanding sheet are placed above the openings in the sanding plate. Removing sanding sheet 2) Simply pull the sanding sheet off the sanding plate. Connecting dust extraction You can reduce dust production during sanding by attaching a dust extraction system.
- Page 16 ORIGINAL INSTRUCTIONS >EN 2) Pull the unlocked tool holder off forwards. 3) Place the required tool on the arbor. 12 different positions are possible. 4) Press the tool holder back into the central mounting. 5) Push the lever for tool unlocking forwards again. The tool holder is fixed to the tool. Attaching/removing sanding sheet The delta sanding plate is fitted with Velcro for rapid attachment of the sanding sheet.
-
Page 17: Cleaning And Maintenance
ORIGINAL INSTRUCTIONS >EN 7. CLEANING/MAINTENANCE Note: Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts. Switch off the device and remove the battery from the device before working with or transporting it. -
Page 18: Declaration Of Conformity
Product: CORDLESS TOOL 18V 4 IN 1 Trade mark: FEIDER Model: FPVSS18V4IN1 Serial number: 20220611498-20220613997 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. -
Page 19: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 20: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 21: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 22 ORIGINAL INSTRUCTIONS >EN BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
