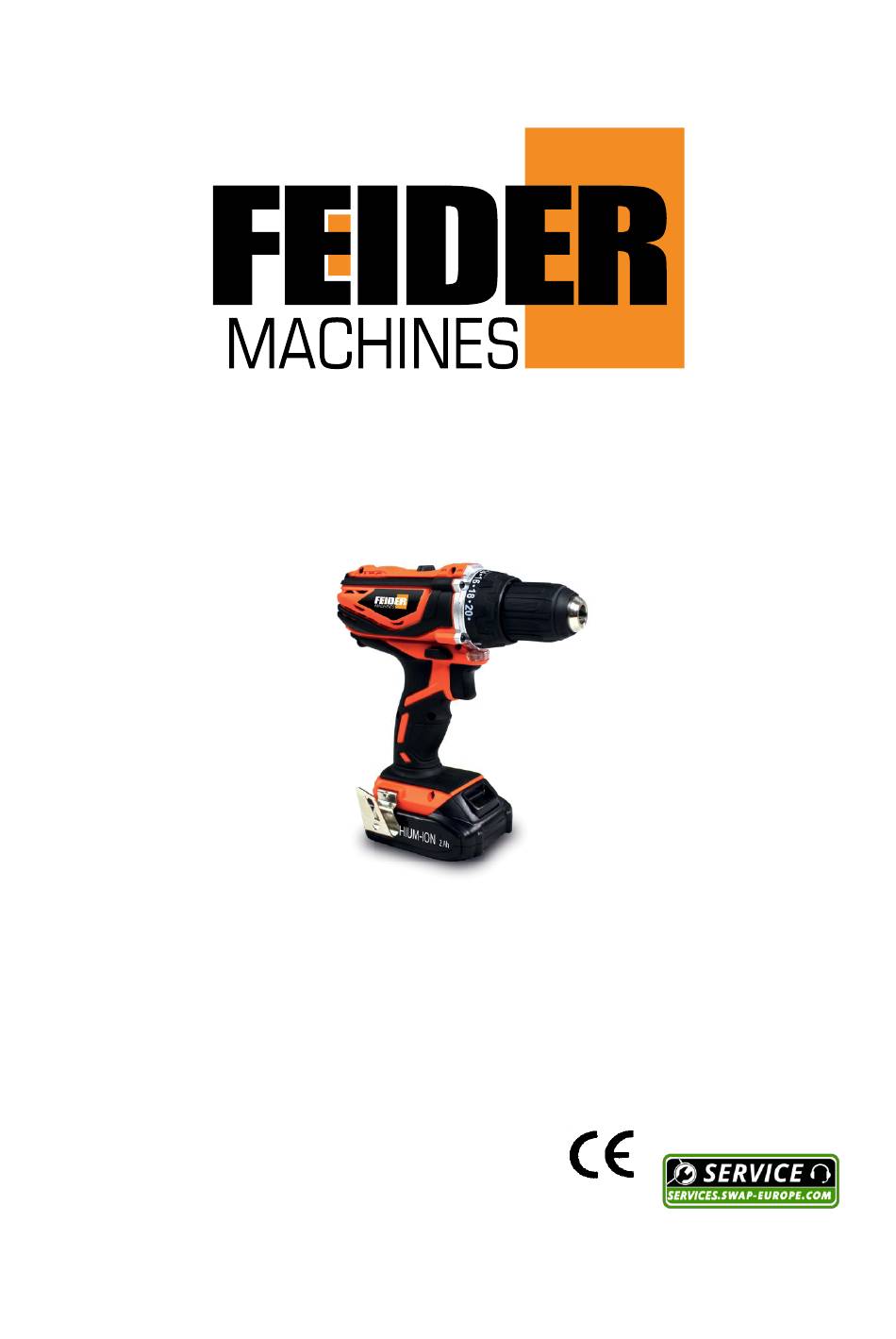

- Page 1 ORIGINAL INSTRUCTIONS CORDLESS DRILL FPV20V2B2B READ THESE INSTRUCTIONS BEFORE USE THIS TOOL FEIDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
- Page 2 CONTENTS SAFETY INSTRUCTIONS ABOUT YOUR PRODUCT USE AND FUNCTION MAINTENANCE AND STORAGE DISPOSAL CE DECLARATION...
- Page 3 1. SAFETY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
- Page 5 a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Drill safety warnings Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. NOTE the above warning applies only to impact drills and may be omitted for drills other than impact drills.
- Page 6 Explanation of symbols Do not dispose of old appliances with domestic rubbish To reduce the risk of injury, the user must read and understand this manual before using this product. Conforms to relevant safety standards Do not expose batteries to temperatures exceeding 40 degrees.
- Page 7 2. YOUR PRODUCT a. Description 1. 1st/2nd gear switch lever 2. Torque adjustment ring for driving/drilling 3. Chuck jaw setting 4. Chuck jaw 5. LED light 6. Forward/reverse switch 7. ON/OFF trigger switch 8. Hand grip 9. Battery release catch (on battery) 10.
- Page 8 Information: The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another; The declared vibration total value may also be used in a preliminary assessment of exposure.
- Page 9 The battery is fully charged when the 4 indicators are illuminating. b. Installation of the battery pack Warning! Always remove the battery from the tool when assembling accessories, making adjustments, during transport or when the tool is not in use. Remove the battery will prevent accidental starting which could cause severe personal injury.
- Page 10 hands away from the lock button while transporting the tool. Slide the battery pack into the tool base until it clicks in position. Make sure that the battery cannot be removed. Incorrect installation of the battery may damage internal components c.
- Page 11 Tighten the chuck jaws on the drill bit. Make sure that the bit is well installed in place. Failure when installation will create accidents and injuries e. Removing bits Switch off the tool and put the reverse/forward switch in the center position. Open the chuck jaws and then pull the bit straight out.
- Page 12 Masonry drilling For maximum performance, use carbide-tipped masonry bits when drilling holes in brick, tile, concrete, etc. For maximum performance, use high speed steel bits. Apply light pressure and medium speed for best results in brick. Two speed gear train This drill comes with 2 speed gear train to give high and low speed ranges.
- Page 13 k. Working clamping To prevent the drill from spinning the workpiece if the drill bit becomes jammed in the hole being drilled, it is recommended that a drill vice or other suitable clamp is used to secure the workpiece during the drilling operation. If the bit jams in the workpiece or if the drill stalls, stop the tool immediately.
- Page 14 ZI, 32, rue Aristide Bergès- 31270 Cugnaux-France Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.503 Declares that the machinery designated below: CORDLESS DRILL FPV20V2B2B Serial number: Complies with the provisions of the Directive «machinery» 2006/42/CE and national laws transposing it:...
