This assembly manual contains important safety information. Please read and keep for future reference.
Useful Hints Before You Start
1. Read each step carefully before starting.
2. Before beginning assembly, identify, sort and count the parts before assembly.
3. Using the wrong screw will cause damage.
4. Using incompatible hardware might cause damage to product.
5. It is important that each step is performed in correct order to avoid di culties.
6. Assemble your furniture on packaging cardboard to prevent scratch or damage.
7. Do not tighten any screws or bolt until the unit is completely assembled.
8. Keep all hardware parts out of reach of children.
Necessary Tools
Phillips
Screwdriver
Distributed exclusively by COE Distributing!
Flat Head
Hammer
Screwdriver
Customer Service
Tel: 800-388-8202 (Mon-Fri | 9am-5pm EST.)
Model No.:
OSXC2009DV
Description:
72"W X 30"D

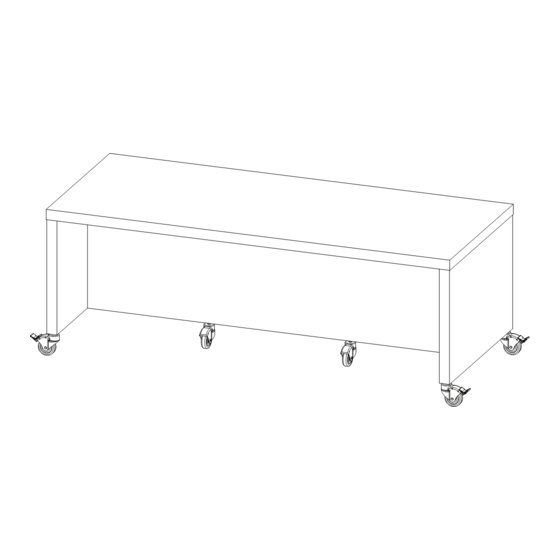

Low Collaborative Table
with Casters
CAUTION – Risk of product damage!
Power Drill can be used on lowest
torque setting.
Advertisement
Table of Contents
Related Manuals for OfficeSource OSXC2009DV
Summary of Contents for OfficeSource OSXC2009DV
- Page 1 Customer Service Tel: 800-388-8202 (Mon-Fri | 9am-5pm EST.) This assembly manual contains important safety information. Please read and keep for future reference. Model No.: OSXC2009DV Description: 72"W X 30"D Low Collaborative Table with Casters Useful Hints Before You Start 1. Read each step carefully before starting.
- Page 2 Please read completely through the instructions and verify that all listed parts and hardware are presentbefore beginning assembly. Hardware List Wooden Dowel Cam Bolt Cam Lock (11x) (11x) Lock Caster (4x) Glue (1x) (12x) Caster (2x) Sticker (2x) Parts List Side Panel (2x) Back Panel (1x) Desktop (1x)
- Page 3 Ⓑ Ⓒ Ⓒ ①x2 Ⓑ Apply glue on all wooden dowels to ensure integrity of the structure. Ⓒ Ⓒ ③ Distributed exclusively by COE Distributing!
- Page 4 Ⓑ ② Ⓑ Ⓑ Ⓓ Ⓐ Ⓖ ① Ⓓ ② Ⓓ ① Ⓓ Insert the Cam Bolt into the Insert the cam with the arrow Turn the Cam Lock to lock using Attach Round Sticker to all hole in the edge. pointing towards the hole in the edge.
- Page 5 Ⓓ Ⓖ Ⓓ Ⓐ ③ Ⓓ Ⓔ Ⓕ Ⓕ Ⓔ Distributed exclusively by COE Distributing!
- Page 6 Maximum Recommended Weight Loads 150 lbs Care & Maintenance ▪ Check bolts/screws periodically and tighten them if necessary. ▪ Use a soft, clean cloth that will not scratch the surface when dusting. ▪ Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser. ▪...
- Page 7 Customer Service Tel: 800-388-8202 (Mon-Fri | 9am-5pm EST.) This assembly manual contains important safety information. Please read and keep for future reference. Model No.: OSXC2009 Description: 30” x 72” Low Collaboration table Useful Hints Before You Start 1. Read each step carefully before starting. 2.
- Page 8 To attach a PLT3072/OSLT3072 top, place double sided tape along both long sides of the table, 6” from the edge. With two people, line up all 4 sides of the PLT3072/OSLT3072 top to the table beneath, place the top down onto the double sided tape and press down rmly. Distributed exclusively by COE Distributing!
