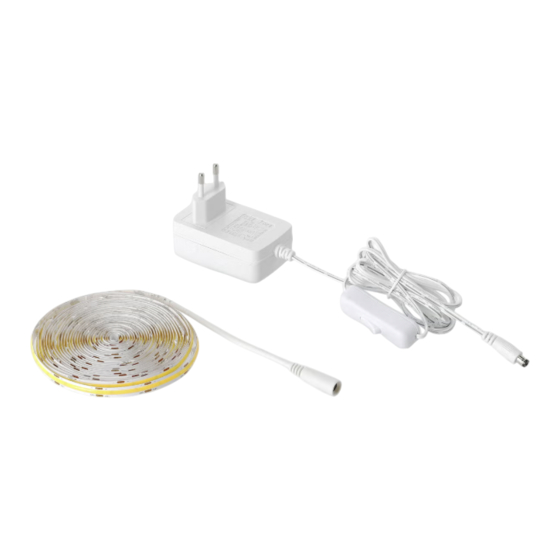

Thin COB LED light strip
Art.no 36-8960 Model SP-LS5M512COBW12-01B
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for any
errors in text or images and any necessary changes made to
technical data. If you experience any technical problems or have
questions, please contact our customer service team.
Safety
Warning
• The product must only be connected to the included mains adapter.
• Do not use the light strip if it, its power cord or power adapter
is damaged in any way.
• The light strip must only be connected to a 230 V, 50 Hz
power supply.
• Never try to open, repair, dismantle or modify the product in
any way.
Warning – electric shock hazard
• Installation and maintenance work on the product involves
the risk of an electric shock.
• If the power cord is damaged it must be replaced by cable
with identical specifications as the original.
Class II power adapter.
Class III light strip.
The light sources are not dimmable.
Installation
Information
The LED strip light can be mounted using the double-sided
adhesive tape. For best adhesion, ensure that the surface is
clean, dry and free of grease.
Cut the light strip to the desired length if necessary.
Note: The strip must only be cut at the marked cutting points.
1. Remove the protective film from the back of the light strip and
attach it to the desired location.
2. Connect the light strip to the power cord.
3. Connect the power adapter to a suitable wall socket.
4. Swith the light on using the on/off switch on the mains lead.
Care and maintenance
• The light strip should be cleaned using a dry cloth or vacuum
cleaner.
• Disconnect the light fitting from the wall socket if it is not to be
used for a long time.
Troubleshooting guide
The light strip
• Check that there is power at the wall socket.
does not
• Make sure that the power cord is undamaged
shine.
and is properly connected to both the light
strip and the wall socket.
• Check that the light strip is not damaged
in any way.
Responsible disposal
This symbol indicates that the product should not be
disposed of with general household waste. This applies
throughout the entire EU. In order to prevent any harm to
the environment or health hazards caused by incorrect
waste disposal, the product must be handed in for
recycling so that the material can be disposed of in
a responsible manner. When recycling the product, take
it to your local collection facility or contact the place of
purchase. They will ensure that the product is disposed
of in an environmentally sound manner.
Specifications
Mains adapter
Power supply
220−240 V AC, 50/60 Hz
Output
24 V, 0.5 A
Light strip
Power cord
1.5 m
Light strip length
5 m
Power LED
14.5 W
Colour temperature
3000 K
Luminous flux
1200 lm
F
Energy efficiency class
Replaceable control gear by an end user.
Non-replaceable light source.
