MAJOR REPAIRS
(continued)
26
Series 20 – Axial Piston Motors
Service Manual and Repair Instructions
Disassembly and Assembly
Changing the cylinder block kit, the swash plate and the motor shaft (assembly)

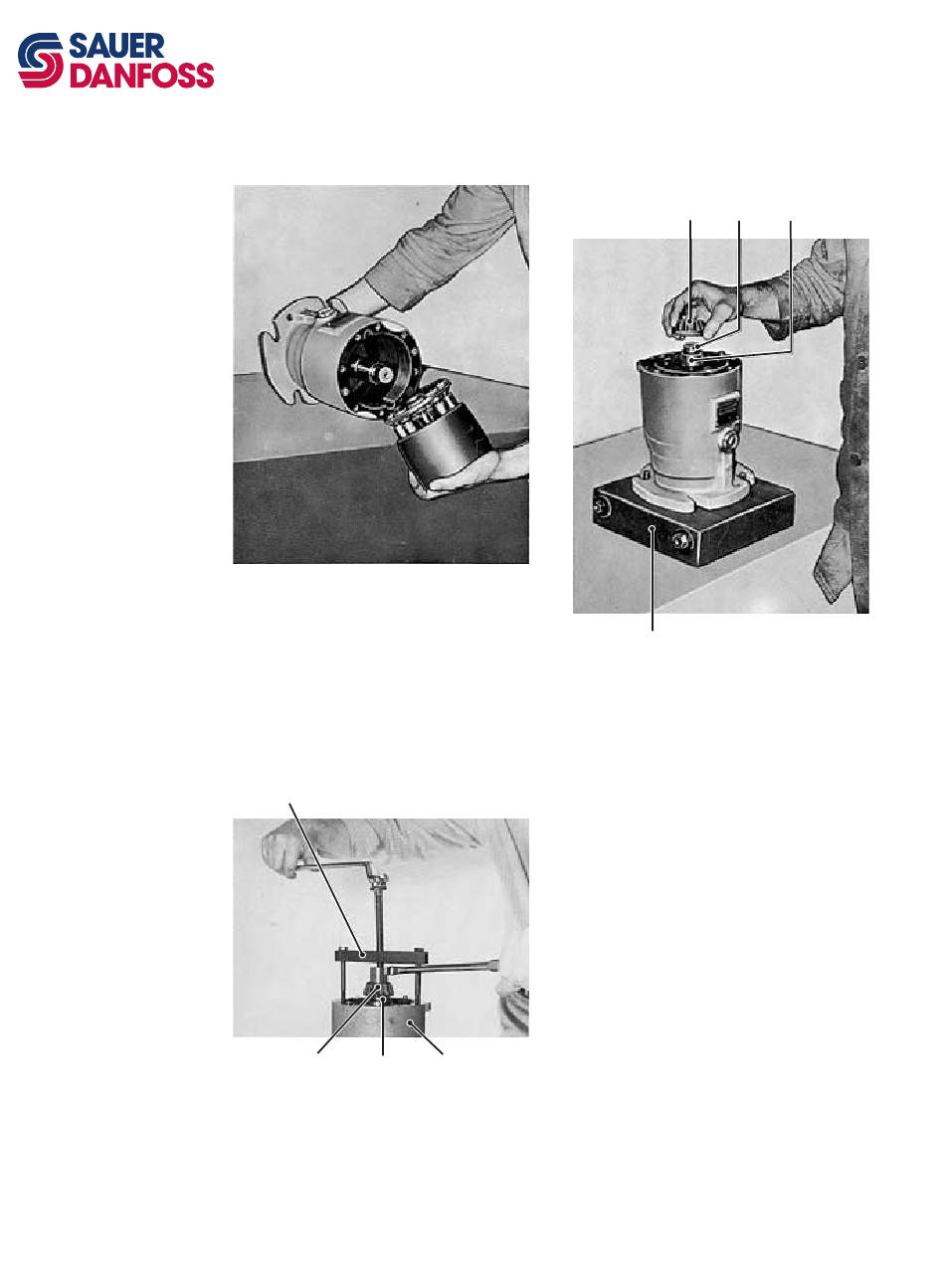

Lubricate the swash plate, slippers,
pistons and bores with clean oil. Hold
the shaft on the external end, align the
missing shaft tooth with the missing
ball guide tooth using the locating pin
hole as a guide. Slide the cylinder block
assembly onto shaft and against swash
plate face.
Bearing puller
13 30
Cone bearing
DKMH.PS.330.C1.02 520L0534
F000 146
see page 14
Set the motor vertically and install the
spacer in the center before of the
cylinder block.
An alternate method of installing this
bearing is to use the bearing puller bar
and press the bearing onto the shaft
with the center screw of the puller bar. A
spacer must be used between the center
screw and the bearing.The bearing must
be pressed on until it rests on the
shoulder of the shaft to insure adequate
bearing clearance.
To check the shaft end play, assemble the
shaft and bearings housing, end cap and
gasket (see pages 23, 24, 19 and 18).The
F000 148
shaft end play should be from 0.08 to
35
0.18 mm [0.003 - 0.007 in] for frame sizes
033 - 089 and from 0.15 to 0.3 mm [0.006
- 0.012 in] for frame sizes 119 - 334. If
adjustment is necessary, a shim can be
placed under the bearing race in the end
cap.
13
Cone bearing 30 20
F000 147
