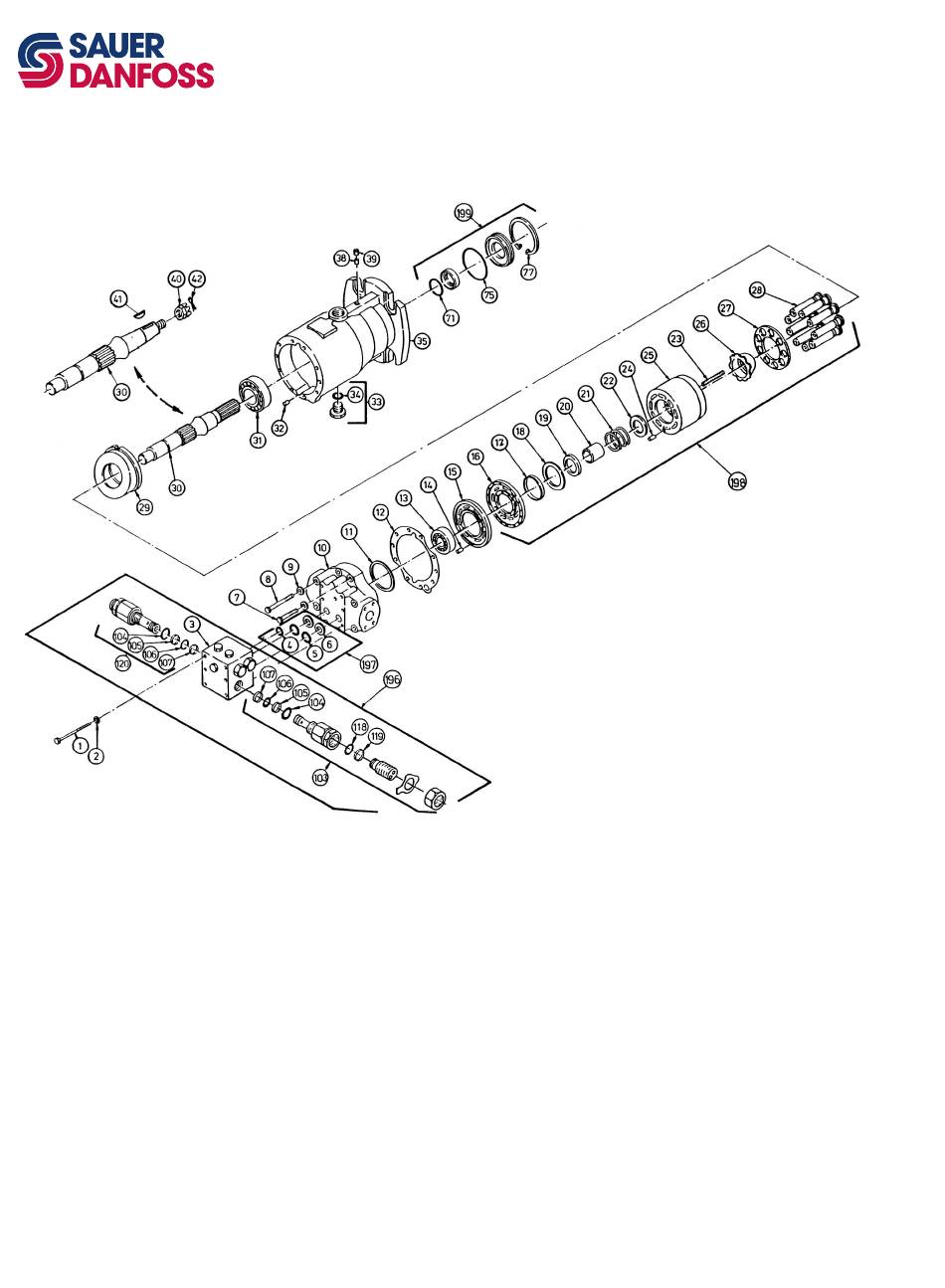

EXPLODED VIEW

16
Series 20 – Axial Piston Motors
Service Manual and Repair Instructions
Disassembly and Assembly
Description of parts:
1 Hexagonal screw
2 Washer
3 Kit manifold valve
4 O-ring
5 O-ring
6 Back up ring
7 Hexagonal screw
8 Hexagonal screw
9 Washer
10 End cap
11 Shim
12 Gasket
13 Bearing
14 Cylindrical pin
15 Valve plate
16 Bearing plate
17 Bearing plate pilot ring
18 Ring retaining
DKMH.PS.330.C1.02 520L0534
19 Retainer spring 39 Plug-pipe
20 Spring guide 71 O-ring
21 Spring 75 O-ring
22 Spring seat 77 Ring retaining
23 Retainer spring 103 High pressure valve assembly
24 Cylindrical pin 104 O-ring
25 Cylinder block 105 Back up ring
26 Retainer guide 106 O-ring
27 Slipper retainer 107 Back up ring
28 Piston assembly 118 O-ring
29 Swash plate 119 Back up ring
30 Shaft 120 High pressure valve assembly
31 Bearing 196 Compl. manifold assembly
32 Cylindrical pin 197 Seal kit
33 Plug 198 Cylinder block kit
34 O-ring 199 Shaft seal kit
35 Motor housing
38 Cylindrical pin
P005 117
