INSPECTION
INSTRUCTIONS
(continued)
PREPARATION FOR
ASSEMBLY
14
Series 20 – Axial Piston Motors
Service Manual and Repair Instructions
Trouble Shooting

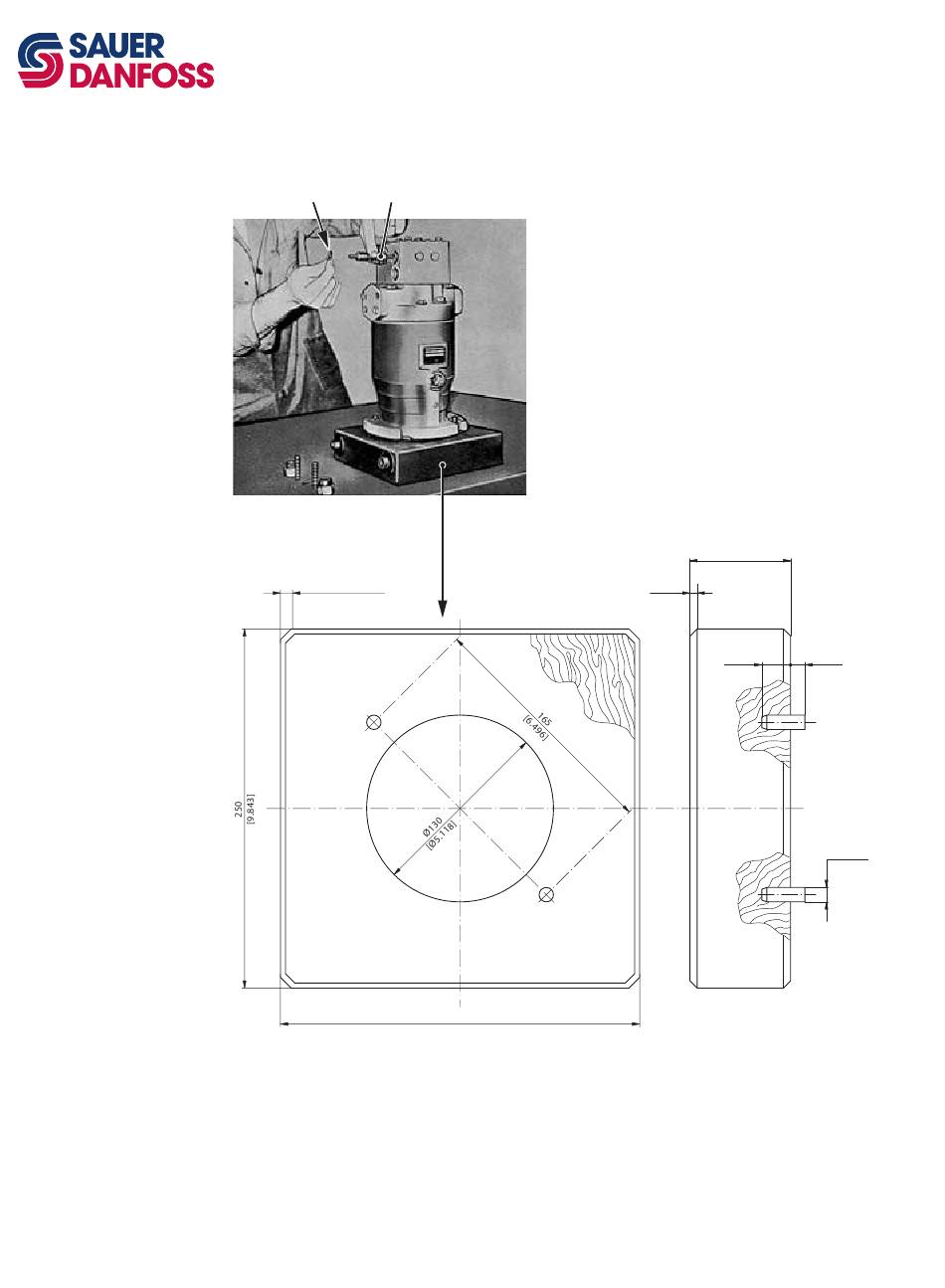

Checking the shuttle valve

Washer Shuttle spool

Mounting block

ca. 5 mm Chamfer
[ca. 0.2 in]
The areas of repair indicated may be serviced, following the procedures in this manual,
without invalidating the warranty.
When using a lifting device, the hooks at the end of the slings, are to be fastened in the
rings fitted at the front and rear of the motor body.
It is recommended that an mounting block should be used in order to facilitate a profes-
sional operation.
DKMH.PS.330.C1.02 520L0534
The shuttle spool must be easily movable
in the bore.
Any wear, dirt or cracks, indicate that
the complete valve block needs to be
replaced, the spool and manifold are
matched and cannot be replaced separa-
tely (see page 20).
F000 081
250
[9.843]
70
[2.756]
5x45˚
20 10
[0.787] [0.394]
Ø10 Pin
[Ø0.394]
P005 112E
