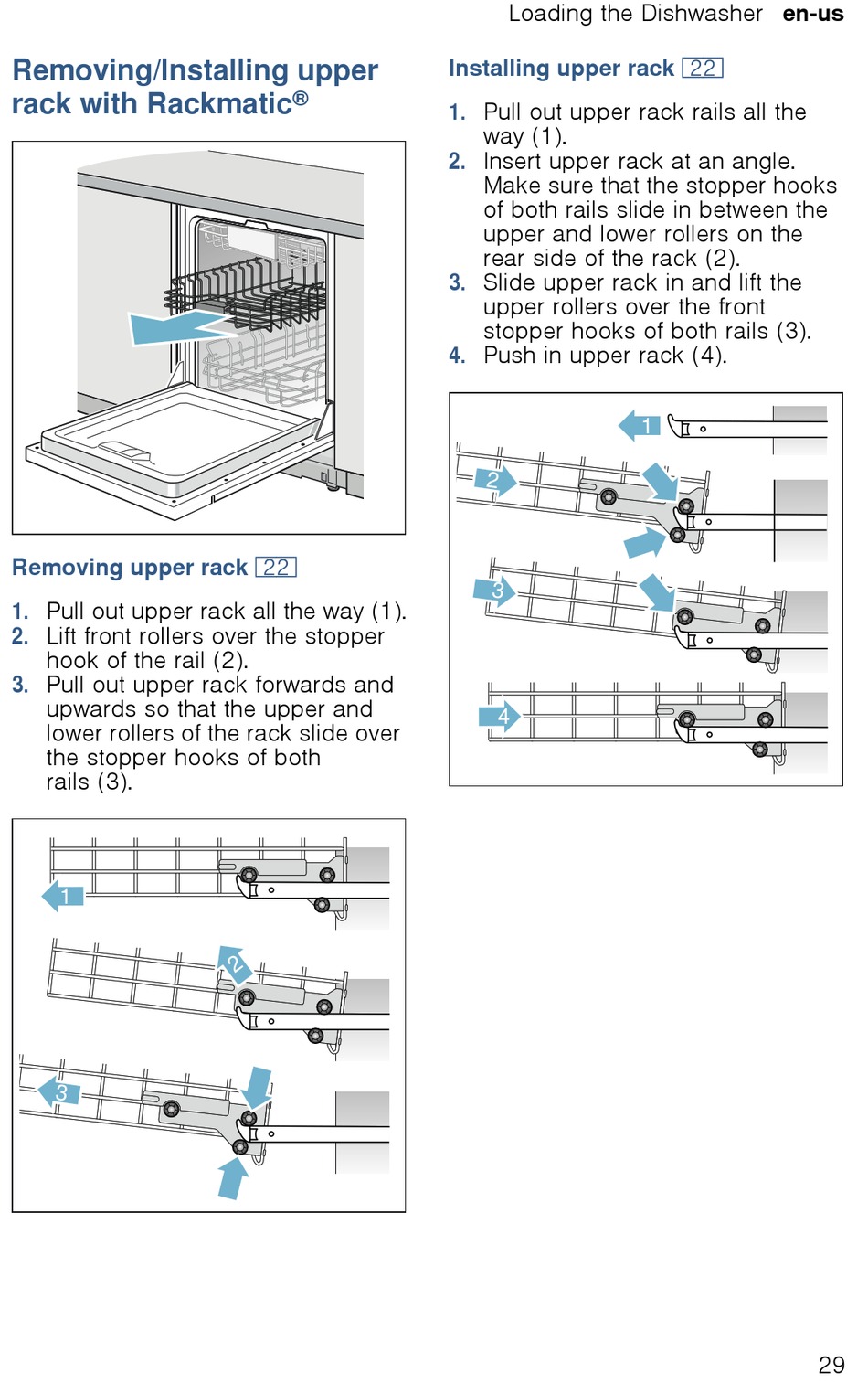

Removing/Installing upper
rack with Rackmatic
Removing upper rack 12
Pull out upper rack all the way (1).
1.
Lift front rollers over the stopper
2.
hook of the rail (2).
Pull out upper rack forwards and
3.
upwards so that the upper and
lower rollers of the rack slide over
the stopper hooks of both
rails (3).
Installing upper rack 12
®
1.
2.
3.
4.
Loading the Dishwasher en-us
Pull out upper rack rails all the
way (1).
Insert upper rack at an angle.
Make sure that the stopper hooks
of both rails slide in between the
upper and lower rollers on the
rear side of the rack (2).
Slide upper rack in and lift the
upper rollers over the front
stopper hooks of both rails (3).
Push in upper rack (4).
