- Page 1 O p e r a t i n g I n s t r u c t i o n s Boiler G.C No E22S 41-310-12 E32S 41-310-13 E22C 47-310-13 E32C 47-310-14 CE PIN 0063BR3405...
-
Page 2: Table Of Contents
Adjustments ............ 14 Important! It is in your own interest that we should know that you have an ATAG boiler. Please fill out the warranty card completely and send it back to us. Then we can be fully at your service. -
Page 3: Introduction
These operating instructions describe functioning and the operating of the ATAG E boilers. This manual is for the end user. For installation and servicing there is an installation & servicing instructions manual for the installer. Read this manual fully before operating the boiler. In case of doubt or errors contact your installer. - Page 4 The Benchmark Scheme ATAG Heating UK Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance.
-
Page 5: Safety
Checking the water pressure Check the water pressure in the central heating installation regularly. Use only potable water for filling. Use additives only after clearance by ATAG. Contact your installer if in any doubt. -
Page 6: Description Of The Boiler

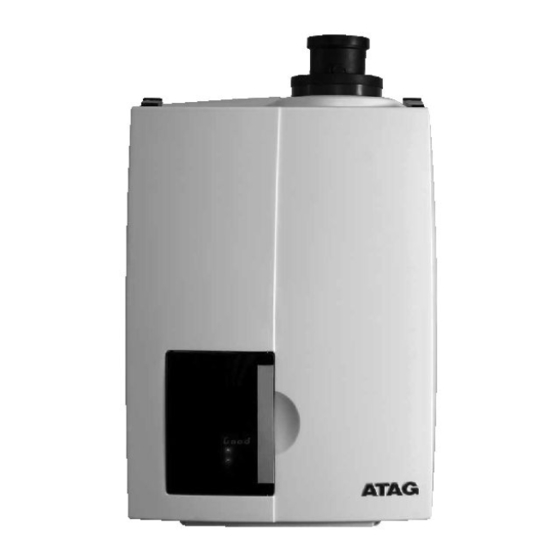

Description of the boiler The ATAG E boiler is a room sealed, condensing and modulating central heating boiler, with or without an integrated hot water facility. The boiler is provided with a compact stainless steel Room sealed boiler The boiler retreives its heat exchanger with smooth tubes. - Page 7 SEDBUK Class A Example SEDBUK ClassA rated. When the boiler is connected to an ATAG BrainQ a lot of information can be retrieved from the boiler. For more information about the ATAG thermostats. Please refer to the user manuals.
-
Page 8: Explanation Of The Function Keys And Display
Explanation of the function keys and display Display Indication L.E.D.'s Step key Scrolling Central heating on/off Mode key Selecting chapters Domestic Hot water on/off Reset key Pump program Unlocking the boiler on/off On/off key Central heating. When 'on' the indication L.E.D. is illuminated. On/off key Domestic hot water (DHW) When 'on' the indication L.E.D. -
Page 9: The Boiler Display
The boiler display The boiler display can be set to read in two ways: The Good reading During this reading the display will only show what is necessary. Under normal circumstances the display will give a Good reading. If a fault is detected the boiler will be blocked. -
Page 10: Water Pressure In The Central Heating System
ATAG the Good reading: thermostat. Press the Step key once briefly. On the display of the ATAG The water pressure will be shown. Brain Q as well as the ATAG Smart a low water pressure can be indicated. -
Page 11: Replenishing The Central Heating
Replenishing the central heating system The central heating installation needs to be filled with potable (drinking) water. For topping up the installation you use the filling loop according to the following procedure: (If in any doubt please contact your dealer) 1 Switch all functions off (heating, DHW and pump);... -
Page 12: Turning The Boiler Off
Turning the boiler off Holiday period: Holiday The ATAG BrainQ room Adjust the thermostat to the holiday period. See thermostat is provided with the user thermostat manual. The hot water facility a holiday program. -
Page 13: Error Codes, Maintenance And Warranty
Error, maintenance and warranty If a fault is detected the boiler will be blocked. This will be reflected, by an alternate display of Good, with an for Error or a BL for Blocking and a number code. You can try to reset the boiler by pressing the Reset key once. -
Page 14: Adjustments
Adjustments The boiler has a large number of settings options. We advise you to contact your installer for adjusting the boiler to your required settings. Adjusting the flow water temperature (CH) Press the Mode key briefly (from the Technical reading). The display will show PARA . - Page 15 Adjusting the type of installation The boiler is designed in such a way that it will adjust itself automatically to what is necessary for a normal heating system. In some cases the Step installation may have convectors or complete underfloor heating. Mode One can easily choose heating installation Reset...
- Page 16 Phone number outside business hours: ATAG Heating UK Ltd. • Unit 3 • Beaver Trade Park • Quarry Lane • Chichester • West Sussex • PO19 8NY Phone: 01243 815 770 • Fax 01243 839 596 • E-mail: info@atagcommercial.co.uk • Internet: www.atagcommercial.co.uk...
