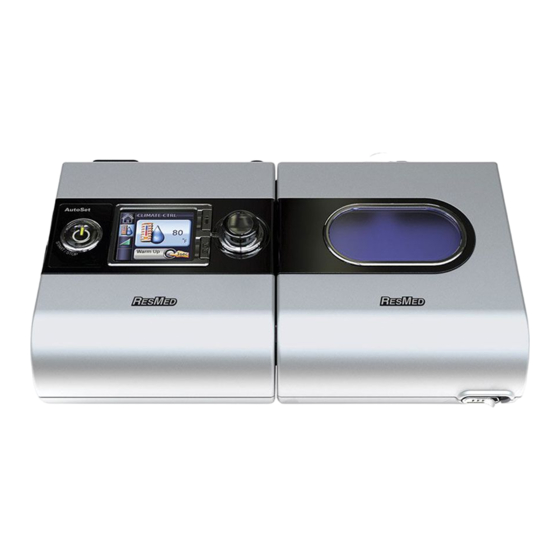

English S9 Escape indications for use The S9 Escape CPAP system is indicated for the treatment of obstructive sleep apnoea (OSA) in patients weighing more than 30 kg. The S9 Escape CPAP system is intended for home and hospital use.
Troubleshooting If there is a problem, try the following suggestions. If the problem cannot be solved, contact your equipment supplier or ResMed. Do not attempt to open this device. Problem/Possible cause Solution No display Power is not connected. Ensure the power cable is connected and the power outlet (if available) is on.
Page 3
Turn the humidifier setting down and empty the water from resulting in accumulation of water in the air tubing. the air tubing. Displays error message: Check ResMed 30/90W Power Supply Unit and fully insert the connector The DC plug is partially inserted into Fully insert the DC plug.
Page 4
Technical specifications Operating pressure range 4 to 20 cm H Maximum single fault steady state 30 cm H pressure Pressure measurement tolerance ±0.5 cm H O ± 4% of the measured reading Flow measurement tolerance ±6 L/min or 10% of reading, whichever is greater DECLARED DUAL-NUMBER NOISE EMISSION VALUES in accordance with ISO 4871: Sound pressure level 24 dBA as measured according to ISO 17510-1:2002...
Page 5
Products page under Service and Support. Click on the PDF file for your language. Aircraft use ResMed confirms that the S9 Escape meets the Federal Aviation Administration (FAA) requirements (RTCA/DO-160) for all phases of air travel. IEC 60601-1 classification...
If you need information on these disposal systems, please contact your local waste administration. The crossed-bin symbol invites you to use these disposal systems. If you require information on collection and disposal of your ResMed device please contact your ResMed office, local distributor or go to www.resmed.com/environment.
• Portable diagnostic/screening devices This warranty is only available to the initial consumer. It is not transferable. If the product fails under conditions of normal use, ResMed will repair or replace, at its option, the defective product or any of its components.
Page 8
ResMed shall not be responsible for any incidental or consequential damages claimed to have resulted from the sale, installation or use of any ResMed product. Some regions or states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
Page 9
• Only use the ResMed 90W or 30W power supply unit. Use the 90W power supply unit to power the system comprising the device, H5i, air tubing, DC/DC converter and battery pack. The 30W power supply unit is designed to power the device only and recommended for traveling.
Page 10
• Do not open the device enclosure. There are no user serviceable parts inside. Repairs and servicing should only be performed by an authorised ResMed service agent. • Do not use bleach, chlorine, alcohol, or aromatic-based solutions, moisturising or antibacterial soaps or scented oils to clean the device, humidifier or air tubing.
