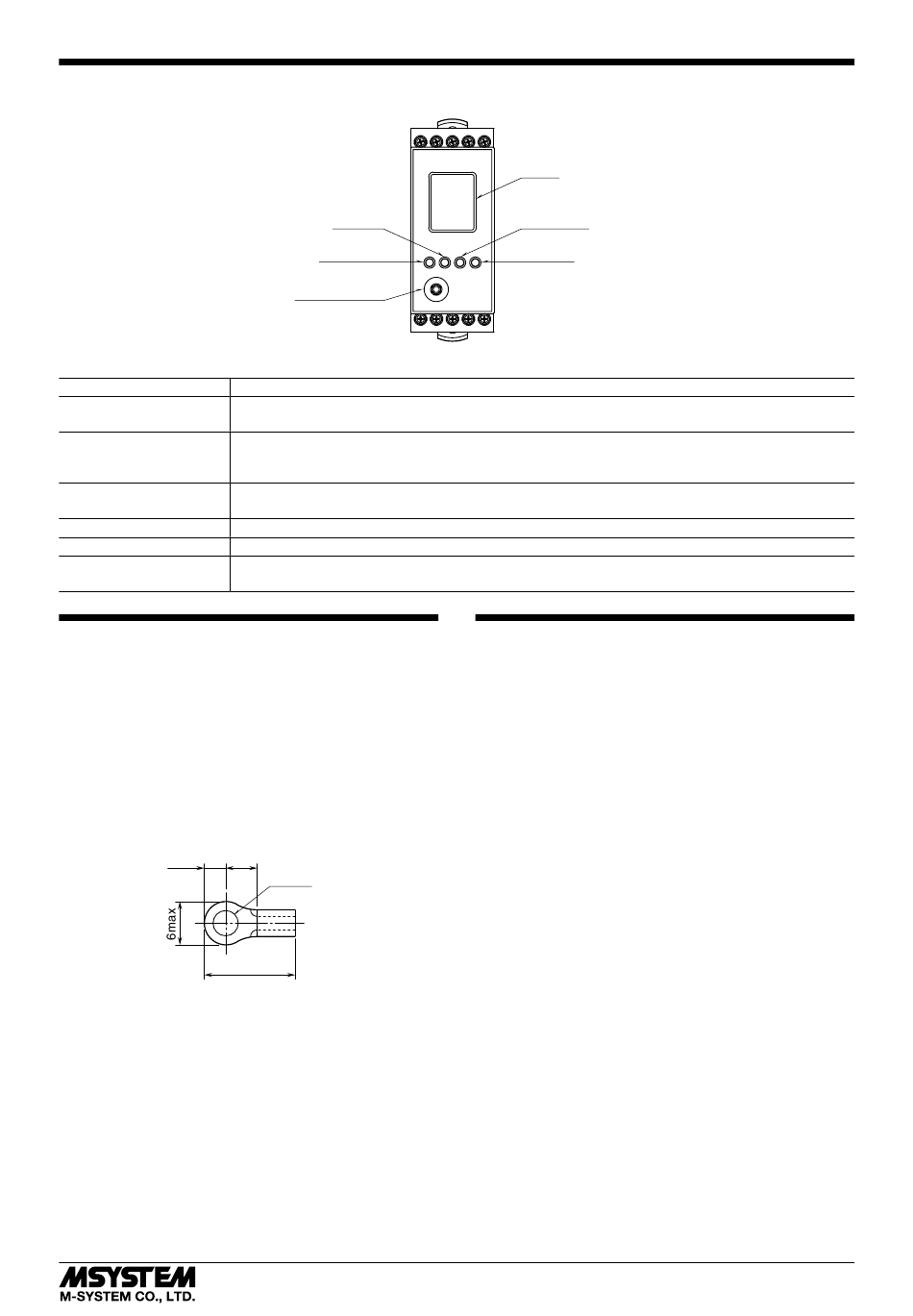

EXTERNAL VIEWS

COMPONENT
Display
Mode button
Set button
Up button
Down button
Configurator Jack
WIRING INSTRUCTIONS FOR BASE
■ SCREW TERMINAL
Torque: 0.5 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable.
Recommended manufacturer: Japan Solderless Terminal
MFG.Co.Ltd, Nichifu Co.,ltd (Solderless terminals with in-
sulation sleeve do not fit)
Applicable wire size: 0.25 to 1.65 mm
3max 4min
12max
Up Button
Mode Button
Configurator Jack
FUNCTION
Indicates present values, setting values and abnormal information. Two types of present values at up-
per and lower are displayed by setting.
Used to shift from measuring mode to each setting mode. Destination to shift is changed by the time
pressing and holding the button. Used to return from each setting mode to measuring mode (press and
hold for 2 sec. or more).
Used to change setting value of setting parameter. When at setting changeable state, used to enter
(save) the setting value. Used to move on through digits of setting value at setting changeable state.
Used to shift through setting parameter, and to increase or select setting value.
Used to shift through setting parameter, and to decrease or select setting value.
Used to configure with M1E configurator software (model: M1ECFG). At the same time, set the lockout
setting of the unit to 'lock'.
2
3.2 dia.
(mm)
