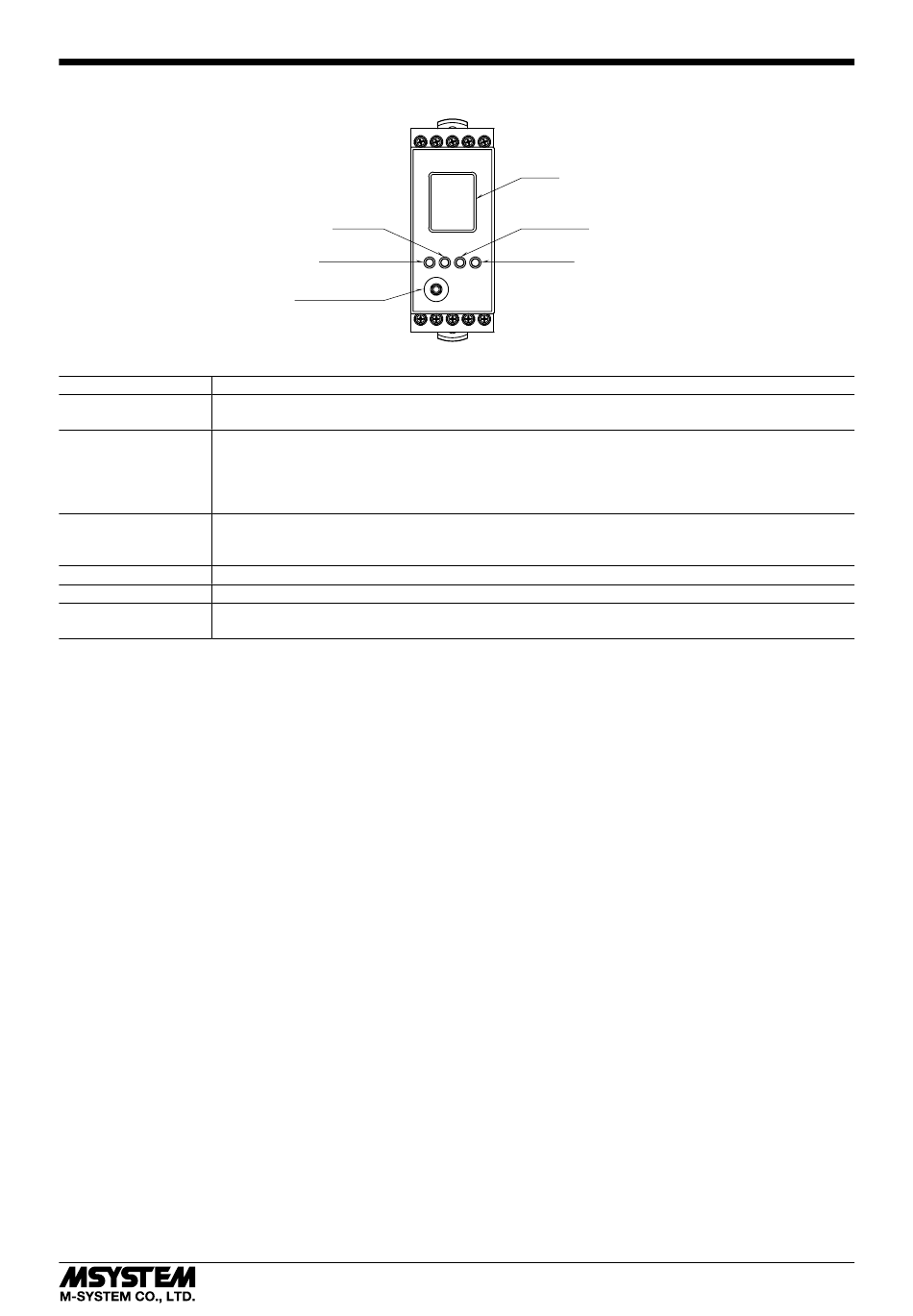

EXTERNAL VIEWS

COMPONENT FUNCTION
Display Indicates present values, setting values and abnormal information.
Two types of present values are displayed respectively at the upper and lower parts according to setting.
Mode button Shifts from Measuring mode to each setting mode.
The destination changes depending on how long the button is held down.
While in each setting mode, pressing Mode button shift to the setting mode for the next channel.
Pressing Mode button for ≥ 2 seconds returns to Measuring mode from each setting mode.
In Measuring mode, shortly pressing the button shifts to the next screen.
Set button Shifts the setting value of each setting parameter item to a setting changeable state.
When at setting changeable state, used to move through the digits of setting value and to enter (save)
the setting value.
Up button Shifts through setting parameter items and to increase or select the setting value.
Down button Shifts through setting parameter items and to decrease or select the setting value.
Configurator Jack Used to perform configuration with M1E configurator software (model: M1ECFG).
When using the software, set the Lockout setting of the unit to 'Lock'.
Up Button
Mode Button
Configurator Jack
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
Display
Down Button
Set Button
M1EXV-4
EM-6040-B Rev.2 P. 5 / 37
