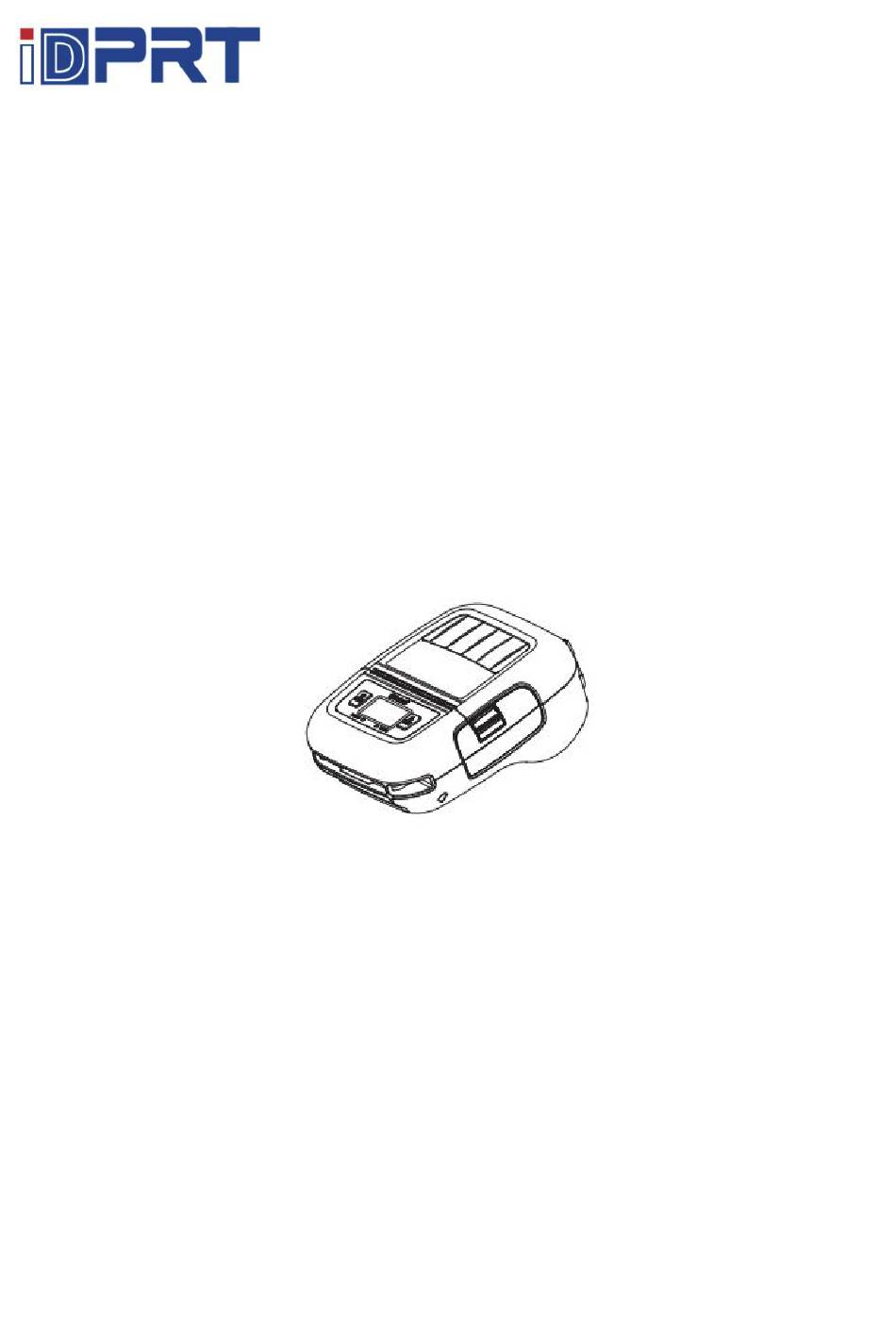

Mobile Printer
iMOVE T3Pro
USER MANUAL
Rev.1.0
Xiamen Hanin Electronic Technology Co.,Ltd.
ADD: 5F, 10# Building, Aide Airport Industrial Park, Huli District, Xiamen, China
TEL: +86-(0)592-5932525
WEB: www.idprt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMOVE T3Pro and is the answer not in the manual?

Questions and answers

Related Manuals for iDPRT iMOVE T3Pro

Summary of Contents for iDPRT iMOVE T3Pro

  • Page 1 Mobile Printer iMOVE T3Pro USER MANUAL Rev.1.0 Xiamen Hanin Electronic Technology Co.,Ltd. ADD: 5F, 10# Building, Aide Airport Industrial Park, Huli District, Xiamen, China TEL: +86-(0)592-5932525 WEB: www.idprt.com...
  • Page 2 Caution Symbol Never touch the thermal head immediately after the printer has been used. Let the thermal head cool for a few minutes before touching it. This symbol is indicate that it is easily damaged. Observe the precautions for handling electrostatic sensitive devices.
  • Page 3  Using the Printer Some semiconductors can be damaged by static electricity. Be sure to turn off the printer when inserting or removing the battery pack. Do not drop the printer or hit it against a hard object. Do not open the printer cover while the printer is printing. Before you open the printer cover, make sure that printing data is not being sent to the printer.
  • Page 4  Operating Environment for the Printer Before actually unpacking the printer, remember the following points when doing this. Do not use the printer in an environment in which it will be subject to strong shaking while it is printing. Be careful to ensure that the printer is not exposed to direct sunlight. The appropriate environment for using the printer is described below.

  • Page 5: Table Of Contents

    Contents 1. Product Overview............................1 1.1 Printer & Accessories..........................2 1.2 Appearance and Components....................... 3 2. Setup................................4 2.1 Battery Pack............................4 2.1.1 Inserting into the Printer......................4 2.1.2 Charging the Battery........................5 2.2 Bluetooth And Wi-Fi..........................8 2.3 Loading Paper............................9 2.4 Menu Settings............................12 2.5 Belt Clip..............................17 2.5.1 Install the Belt Clip........................17 2.5.2 Using the Belt Clip........................
  • Page 6 9. Windows Driver Instruction.......................... 33 9.1 Operating System..........................33 9.2 Windows Driver Preparation....................... 33 9.3 Windows Driver Installation........................ 33 9.4 Detailed Windows Driver Setting......................37 9.4.1 Printing Preferences......................... 37 9.4.2 Other Settings..........................46 9.5 Uninstalling the Driver.........................48 10. Utility Tool Instruction..........................50 10.1 Operating System (OS) Environment....................50 10.2 Utility Tool Preparation........................50 10.3 Using Utility Tool..........................51...

  • Page 7: Product Overview

    T3Pro User Manual 1. Product Overview This printer is perfect for mobile banking systems, retail, POS (point of sale) terminals and other forms of mobile computing. The characteristics of this printer are listed below: •Light (150x120x70mm) •Extremely light and mobile (630g including Battery pack) •Very silent printing thru direct thermal printing method...

  • Page 8: Printer & Accessories

    T3Pro User Manual 1.1 Printer & Accessories The printer is packaged with the following accessories. If any of these accessories is broken or missing, please contact the dealer that you bought the product. Note: 1) The AC adapter vary by local or region.

  • Page 9: Appearance And Components

    T3Pro User Manual 1.2 Appearance and Components...

  • Page 10: Setup

    T3Pro User Manual 2. Setup 2.1 Battery Pack 2.1.1 Inserting into the Printer 1. Make sure that the printer has been turned off before you insert or remove the battery pack. 2. Insert the battery pack into the back of the printer as in the figure shown below, following the direction of the arrow.

  • Page 11: Charging The Battery

    T3Pro User Manual 2.1.2 Charging the Battery Insert the battery pack into the printer to charge it. Plug in socket with USB charging. When battery pack runs out of power, the battery icon will flash. It powers off automatically when continues printing.
  • Page 12 T3Pro User Manual Notes about the Battery Pack  General Battery Characteristics The battery is a consumable and its performance over time gradually decreases.  While not in use, the battery will slowly discharge itself.  Prepare a battery pack that has been charged relatively recently (1 to 2 days earlier).
  • Page 13 T3Pro User Manual  Notes about Storing the Battery Pack If you do not intend to use the battery pack for a long time, be sure to remove it from the printer.  Keep the battery out of the reach of children. In addition, be careful that children do not remove the ...

  • Page 14: Bluetooth And Wi-Fi

    Star Utility. To obtain this utility, please contact with your dealer. b) Another is Bluetooth 4.0(BLE) without PIN for iOS system. 2.iMOVE T3Pro changes the Bluetooth mode automatically by host system. 3.Pairing sets one by one in order, otherwise it can‘t figure out which one succeeds in pairing.

  • Page 15: Loading Paper

    T3Pro User Manual 2.3 Loading Paper 1) Press the cover open button to open the paper cover. 2) Load the roll paper in the orientation shown in the figure below.
  • Page 16 T3Pro User Manual 3) Pull the end of the roll straight toward you. Then press down on both sides of the printer cover to close it firmly. When you close the printer cover, make sure that it is closed on both sides.
  • Page 17 T3Pro User Manual Caution Symbol Never touch the thermal head immediately after the printer has been used. Also, even when the thermal head is not hot, do not touch it, because static electricity can damage the devices inside the thermal head.

  • Page 18: Menu Settings

    T3Pro User Manual 2.4 Menu Settings Change the Menu settings by following operations. 1. Press and hold the MODE button for approx. 2 seconds, and printer is turned on. 2. Press and hold both the MODE & FEED. Release the buttons after printer displays “Enter Menu Mode”, then you can configure the settings.
  • Page 19 T3Pro User Manual Example When you want to change the settings of the printer mode as shown below, Item Factory Setting Configuration Example 1 Density 0(Medium) 1(Low) 2 Standby Time 0060(Sec) 0080(Sec) 3 Auto Off Time 0120(Min) 1120(Min) 4 Paper Type...
  • Page 20 T3Pro User Manual Please use at a room temperature if you want to set the density to ‘3 Special’. Some type of the paper are not suitable for use in low temperature environment. Press the MODE button once to switch the menu item--Standby Time.
  • Page 21 T3Pro User Manual →Press the MODE button twice to input the number:1, then press and hold FEED button to confirm the new setting and return to the previous menu. (The paper type has set to BM(3inch)) 4(Label) →1(BM(3inch)) Press the MODE button 4 times to switch the menu item--Set Language.
  • Page 22 T3Pro User Manual Menu Setting Table First-level menu Second-level menu Third-level menu Default 1 Print Press Feed To Print 2 Calibrate Please press feed key to calibrate... 1 Self Test 3 Hex Dump Mode Hex Dump Mode 4 Previous Menu...

  • Page 23: Belt Clip

    T3Pro User Manual 2.5 Belt Clip 2.5.1 Install the Belt Clip Follow the procedure below to attach the belt clip to the printer. 1. Make sure that you are attaching the belt clip in the right orientation, then screw the screw that comes with the belt clip into the designated screw hole to attach the belt clip to the printer.

  • Page 24: Printer Features

    T3Pro User Manual 3. Printer Features 3.1 Control Panel 3.1.1 Button 1) MODE Button: ①Pressing and holding the MODE button for 2 seconds or more will turn the power on or off. ②Pressing and holding MODE & FEED buttons for 5 seconds will put the printer into Menu Setting mode.

  • Page 25: Panel Lamp

    T3Pro User Manual 3.1.2 Panel Lamp 1) POWER (Green): Printer is ON and ready to receive data. 2) ERROR (Red): Indicates an error has occurred. (Eg: Paper Out, Cover Open, etc) Status Lamp Display Screen Buzzer Printer Ready Power...

  • Page 26: Lcd Indication

    T3Pro User Manual Status Lamp Display Screen Buzzer Bluetooth Try to Bluetooth icon is Connect flashing Bluetooth Connection Bluetooth icon is Succeeds always ON Bluetooth is not No display Configured 3.1.3 LCD Indication LCD will display most of the printer status.

  • Page 27: Buzzer Description

    T3Pro User Manual 3.1.4 Buzzer Description Buzzer Status No ring Low battery Once Begin charging/Press button/Cover close Twice Paper out/Cover open Three USB disconnected...

  • Page 28: Self Test

    T3Pro User Manual 3.2 Self Test You can use self test to check the printer’s settings. Before you start the self test, make sure that roll paper has been properly loaded into the printer. Self Test Procedure: 1)Turn on the power while holding down FEED button.

  • Page 29: General Specification

    T3Pro User Manual 4. General Specification Product Model iMOVE T3Pro Print Method Direct thermal printing Resolution 203dpi Print Print Width Max.72mm/576 dots Print Speed Max.80mm/s Programming Language ZPL, CPCL Thermal receipt paper (including black mark), Paper Type thermal receipt paper...
  • Page 30 T3Pro User Manual TPH Life 50km Reliability Levels of Protection IP42, IEC60529 specification Drop Test Standard 1.5m machine drop test, follow GB/T 2423.8 Environmental Operation 0℃ to 55℃, 10% to 85%RH, non-condensing Parameters Storage -10℃ to 65℃, 5% to 90%RH, non-condensing...

  • Page 31: Detailed Specification

    T3Pro User Manual 5. Detailed Specification Item Specification Hardware specification MCU: 32bits RISC, FLASH : 256K bytes, RAM: 48K Bytes Bluetooth highest frequencies 2.4 GHz Bluetooth module basic clocking 26MHz Bluetooth output 2.34mW (3.7dBm)

  • Page 32: Interface

    6. Interface 6.1 USB for Battery Charge iMOVE T3Pro printer has a USB interface for Battery charging and is connected by means of 5pin micro USB socket. In the following table, the signals present on the micro USB socket are listed.

  • Page 33: Bluetooth

    Data Transmission Rate 115200bps adjustable Data Bit 8 data bit fixed Parity Bit No parity fixed Stop Bit 1 stop bit fixed Compatible PIN code: 1234 as default Device Name: iMOVE T3Pro -XXXX (XXXX is the last digits of the Bluetooth address)

  • Page 34: Specifications Of Accessories

    T3Pro User Manual 7. Specifications of Accessories 7.1 Battery Pack 7.4V, 2000mAh Rechargeable Lithium-ion Safety Approvals: PSE 7.2 Belt Clip...

  • Page 35: Troubleshooting Procedure

    T3Pro User Manual 8. Troubleshooting Procedure When a trouble occurs, confirm its phenomenon, locate a defective part in accordance with "8.1 Troubleshooting Guide", and troubleshoot as described below. Phenomenon: Find a trouble phenomenon in this column. If there are multiple phenomena, take all the corresponding items into consideration.

  • Page 36: Troubleshooting Guide

    T3Pro User Manual 8.1 Troubleshooting Guide 8.1.1 Power Supply Failure Phenomenon Cause Check Method Remedy The battery is not connected Connect the specified battery No Power The battery is discharged Battery level Charge the battery ≤7.4V 8.1.2 Printing Failure...

  • Page 37: Faulty Sensor

    T3Pro User Manual 8.1.3 Faulty Sensor Phenomenon Cause Check Method Remedy Check whether the ERROR Replace the Mechanism Faulty paper sensor. lamp flickers when paper is Unit. out. Foreign substance is Check whether any foreign Does not detect Remove the foreign...

  • Page 38: Error Message(Printer Status Indication On The Lcd)

    T3Pro User Manual 8.1.5 Error Message(Printer Status indication on the LCD) Message Description of failure message Remark Cover Open Printer cover is not closed properly. Close printer cover properly. Out of Paper Empty paper Replace the roll paper. High Is recovered with the automatic which Thermal Head is overheat.

  • Page 39: Windows Driver Instruction

    T3Pro User Manual 9. Windows Driver Instruction 9.1 Operating System The following operating systems are supported for usage. Microsoft Windows 10 (32 bit/64 bit)  Microsoft Windows 8 (32 bit/64 bit)  Microsoft Windows 7 SP1 (32 bit/64 bit) ...
  • Page 40 T3Pro User Manual 3. Choose “I accept the agreement” and click “Next”. 4. Click “Next”.
  • Page 41 1. If printer is already connected with computer by USB port, it only needs to click “Install”, then it will be installed automatically. Otherwise, proceed to the next step. 2. There are two types of iMove T3Pro, you can choose iMove T3Pro(ZPL) or iMove T3Pro(CPCL) as need.
  • Page 42 T3Pro User Manual 6. Finish the installation. 7. After installation, the icon will be found in “Start” → “Devices and Printers”. NOTE: If you already installed the driver (No matter what kind of port), when you connect the printer with...

  • Page 43: Detailed Windows Driver Setting

    T3Pro User Manual 9.4 Detailed Windows Driver Setting 9.4.1 Printing Preferences 1. Click “Start” → “Devices and Printers”. Right click “HPRT iMOVE T3Pro” and choose “Printing preferences”.
  • Page 44 T3Pro User Manual 2. According to different needs, set up the paper.
  • Page 45 T3Pro User Manual • Click “Paper Name”, and choose the paper type.
  • Page 46 T3Pro User Manual • Click “Custom ” and then click “New”. Set up the custom paper.
  • Page 47 T3Pro User Manual • Choose “Rotate” or “Effect”, showed in the “Preview”. For example, choose “Mirror” effect, showed as below:...
  • Page 48 T3Pro User Manual • Click “Advanced” to set up “Save Paper”, “Custom Command”, “Density” and “Media Type”. Save Paper: Custom Command:...
  • Page 49 T3Pro User Manual Density: Media Type:...
  • Page 50 T3Pro User Manual 3. Set up the watermark.
  • Page 51 T3Pro User Manual 4. Set up halftone. 5. After finishing all the settings of printing preferences, click “OK” to save it.

  • Page 52: Other Settings

    T3Pro User Manual 9.4.2 Other Settings Click “Start” → “Devices and Printers”. Right click “HPRT iMOVE T3Pro” and choose “Printer properties”. 2. Click “General”→“Print Test Page”, and printer will print labels with current settings.
  • Page 53 T3Pro User Manual Click “Advanced” and set up as need.

  • Page 54: Uninstalling The Driver

    T3Pro User Manual 9.5 Uninstalling the Driver Double click the driver icon , choose “Uninstall printer driver” and click “Next”. 2. Click “Next”.
  • Page 55 T3Pro User Manual Choose “Yes”. 4. Click “OK” to finish uninstalling.

  • Page 56: Utility Tool Instruction

    T3Pro User Manual 10. Utility Tool Instruction 10.1 Operating System (OS) Environment iMOVE T3Pro Utility Tool is applicable to the following operating system: Microsoft Windows 10 (32 bit/64 bit)  Microsoft Windows 8 (32 bit/64 bit)  Microsoft Windows 7 SP1 (32 bit/64 bit) ...

  • Page 57: Using Utility Tool

    T3Pro User Manual 10.3 Using Utility Tool Warning: Under different operating system, the screen has slight difference. Please operate it according to the tips. Take Windows 7 as example. Unzip the compressed package file, then open the folder, click...

  • Page 58: Add Printer

    T3Pro User Manual 10.3.1 Add Printer Click “Add Printer”.
  • Page 59 T3Pro User Manual 2. Choose the right printer model and port type, then click “OK”. 3. “Add printer” is finished.

  • Page 60: Modify Printer

    T3Pro User Manual 10.3.2 Modify Printer Choose the printer which you want to modify in the list, then click "Modify Printer".
  • Page 61 T3Pro User Manual Choose the new model and new port, then click “OK”. 3. “Modify Printer” is finished.

  • Page 62: Delete Printer

    T3Pro User Manual 10.3.3 Delete Printer Choose the printer which you want to delete in the list, then click "Delete Printer". 2. Click “OK ”, then the printer is deleted.

  • Page 63: Connection Test

    T3Pro User Manual 10.3.4 Connection Test 1. Click “Connection Test”. If the connection is successful, it will appear the following window. If the connection is unsuccessful, please connect the printer with computer. Note: Make sure printer is connected with computer and power on.

  • Page 64: Functions

    T3Pro User Manual 10.4 Functions The function of this printer utility is as follows. Click the button and printer will execute the appropriate action. Note: The following display differs depending on the model you connected.

  • Page 65: Print Text

    T3Pro User Manual 10.4.1 Print Text . Click “Print Text”and type in the print ext, then click “Print”.

  • Page 66: Print Self Information

    T3Pro User Manual 10.4.2 Print Self Information 1. Click “Print self information” to print out the printer information. 10.4.3 Download Fonts Click “Download Fonts” , select the font from the local file and click “Download”.

  • Page 67: Parameter Config

    T3Pro User Manual 10.4.4 Parameter Config Click “Parameter Config” .
  • Page 68 T3Pro User Manual 2. Set up the following items as needed, and click “Set” to save it. After resetting, please restart the printer.

  • Page 69: Command Test

    T3Pro User Manual 10.4.5 Command Test 1. Click “Command Test”. 2. Load file or input the data in the input box and click “Send” to print the test text.

  • Page 70: Wifi Configuration

    T3Pro User Manual 10.4.6 WIFI Configuration 1. Click “WIFI Config”. 2. When choose “Enable” for “WIFI State”, “AP” for “WIFI Mode”, it shows as below. In AP mode, “WIFI Name” is “T3PRO_AP-XXXX”, password can be set as need (at least 8 digits) and IP address is “192.168.1.1”.

  • Page 71: Download Vector Fonts

    T3Pro User Manual 3. When choose “Enable” for “WIFI State”, “STA” for “WIFI Mode”, it shows as below. Type in “WIFI Name”, “Default gateway” and “Password” as needed. 4. Click “Set” to save the setting, and the printer will shut down automatically and restart.
  • Page 72 T3Pro User Manual 3. Select the font from the local file and click “Download”, then input the test text and click “Print Text” .

  • Page 73: Firmware Update

    T3Pro User Manual 10.5 Firmware Update 1. Click “Firmware Update”.
  • Page 74 T3Pro User Manual 2. Select the existing file and click “Download”. 3. Update succeed and the printer will be restarted.
