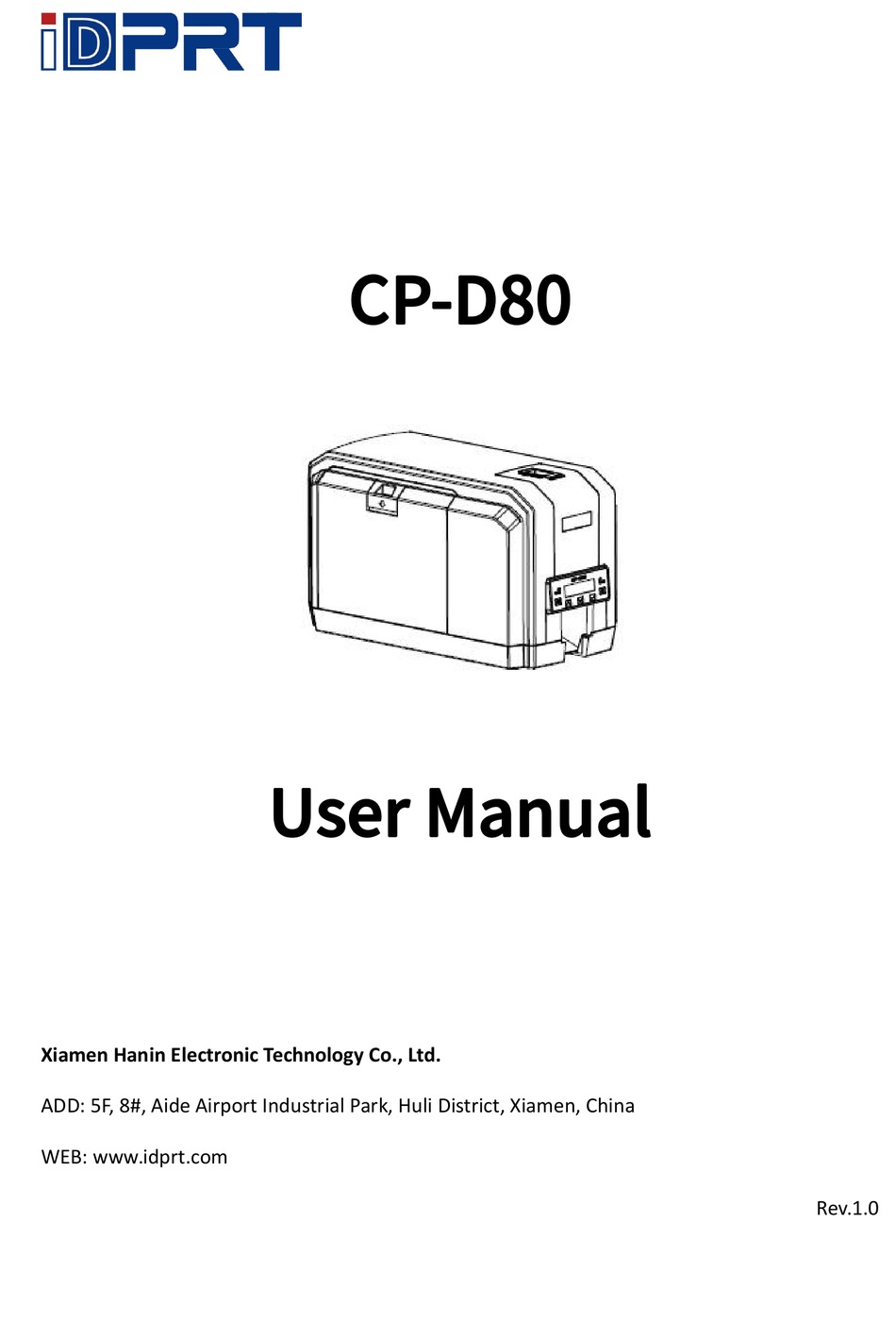

- Page 1 CP-D80 User Manual Xiamen Hanin Electronic Technology Co., Ltd. ADD: 5F, 8#, Aide Airport Industrial Park, Huli District, Xiamen, China WEB: www.idprt.com Rev.1.0...
- Page 2 Changes Record Rev. Date Description Edited by Checked by 2021.01.12 Baochun Lin Tang...
-
Page 3: Table Of Contents
CONTENT Important Safety Instructions ......................1 Chapter 1 Introduction ........................4 1.1 Packing List ........................4 1.2 Appearance and Components ...................5 1.3 Dimension ......................... 6 Chapter 2 Installation & Usage ......................7 2.1 Media Loading ........................7 2.1.1 Loading the Ribbon .................... 7 2.1.2 Loading the Duplex Print Module .............. - Page 4 5.1 Connect the printer to PC driver (USB) ................34 5.2 Connect the printer to PC driver (Ethernet) ..............40...
- Page 5 Statement This manual content may be altered without permission, and our company reserves the rights to make changes without notice in technology, spare parts, hardware and software of the products. If more information is needed about the products, please contact our company. Without any written permission from our company, any section of this manual is prohibited to be copied or transferred in any form.
-
Page 6: Important Safety Instructions
CP-D80 User Manual Important Safety Instructions Before using the appliance, please carefully read the following safety regulations in order to prevent any hazard or material damage. 1. Safety warning Warnings: The print head will become very hot during printing; avoid contact with the print head after printing has finished. - Page 7 CP-D80 User Manual Note: Violating following instructions may cause slight damage of the appliance. 1) If you observe a strange smoke, odour or noise from the printer, unplug it before taking following measures. • Switch off the printer and unplug the set from the mains.
- Page 8 CP-D80 User Manual 3. Other Precautions The copyright for this user manual and various other manuals is property of our company. Any copying or conversion into electronic form and saving of this material without the express written permission is strictly prohibited. Use of the information contained in this manual is not subject to any patent liability.
-
Page 9: Chapter 1 Introduction
CP-D80 User Manual Chapter 1 Introduction 1.1 Packing List 1. Unpack the printer and keep the packing material in case you need to ship the printer in the future. 2. Any damages exist, please contact the local dealer. Note: The packing materials are based on the order. -
Page 10: Appearance And Components
CP-D80 User Manual 1.2 Appearance and Components ￭ Front View ￭ Side View ￭ Rear View Note: The views above are for your reference. Ports vary by your choice. -
Page 11: Dimension
CP-D80 User Manual 1.3 Dimension Unit: mm... -
Page 12: Chapter 2 Installation & Usage
CP-D80 User Manual Chapter 2 Installation & Usage 2.1 Media Loading 2.1.1 Loading the Ribbon 1.Place the printer on a table and press the latch button manually to open the ribbon cover. 2.After opening the ribbon cover, lift the ribbon latch lever to release the ribbon bracket group. - Page 13 CP-D80 User Manual 4.Align the ribbon with the ribbon spindle, stick the front edge of the ribbon on the ribbon rewind spindle. And rotate the ribbon rewind spindle anticlockwise according to the direction shown in the figure. 5.After the ribbon is installed, assemble the ribbon bracket group back to printer, and then...
-
Page 14: Loading The Duplex Print Module
CP-D80 User Manual 2.1.2 Loading the Duplex Print Module 1.Press the side cover by hand and push it down to remove it. 2.Insert the FPC into the cable connector, and then insert the positioning slot into the positioning pin. (Please unplug the AC adapter before installing) -
Page 15: Power Connection
CP-D80 User Manual 2.2 Power Connection 1.Connect the AC adapter to power receptacle. 2.Connect the power cord to AC adapter. 3.Connect the other end of power cord to the outlet. Caution： 1.Use the original power adapter only. Avoid the damage caused by charging improperly. -
Page 16: Operation Panel
CP-D80 User Manual 2.3 Operation Panel 2.3.1 Panel Introduction (1) Power button: Use the POWER button to power off and power on the printer. To power off the printer, press the button for 1 to 2 seconds until the printer begins to shut down. - Page 17 CP-D80 User Manual (4) Main Menu: The LCD panel displays the menu system of the printer and displays the information of the printer. When the printer is in the ready state, the LCD will display the model of the printer.
- Page 18 CP-D80 User Manual Note: When "ready" is displayed on line 1 of the LCD panel, you can access the menu system. • The printer returns ready after 30 seconds of inactivity, and unapplied changes are lost. • To keep the selection without changing the value, press the up or down button until the display exits, and then press OK.
-
Page 19: Error Information Table
CP-D80 User Manual 2.3.2 Troubleshooting Problem Description Solution Close and lock doors Print head is not closed Close the cover Press and hold the MENU Request not supported Task request not supported button Press and hold the MENU Job could not complete... - Page 20 CP-D80 User Manual No. Error Description Method Continue after closing the Close cover to continue Close the cover cover Cover opened during Cover opened during job Close the cover Press and hold the MENU Magstripe not available Magstripe not available...
- Page 21 CP-D80 User Manual No. Error Description Method When the printing is finished or abnormal, the Check the track, press and Card coming out failed card does not exit to the hold the MENU button exit slot The temperature of the...
-
Page 22: Printing Test
CP-D80 User Manual 2.3.3 Printing Test The printer contains a test card that does not use drivers or other card data sources to verify that the printer is working properly. 1) The printer is ready and the status light is yellow. -
Page 23: Chapter 3 Maintenance & Adjustment
CP-D80 User Manual Chapter 3 Maintenance & Adjustment Dust, foreign matter, sticky substance stick to the print head or the contaminants in the printer can reduce print quality. Clean the print head in the following way when it is dirty. -
Page 24: Chapter 4 Windows Driver Usage Instructions
CP-D80 User Manual Chapter 4 Windows Driver Usage Instructions 4.1 Driver instructions The following operating systems are supported: Microsoft Windows 10 (32 bit/64 bit) Microsoft Windows 8 (32 bit/64 bit) Microsoft Windows 7 SP1 (32 bit/64 bit) ... -
Page 25: Installation Preparation
CP-D80 User Manual 4.2 Installation Preparation Note: Under different operating systems, the screen may be slightly different. Take Windows 7 as example. To avoid the prevention, recommend to close the security software before installation. 1.Select one interface to connect your printer to computer. - Page 26 CP-D80 User Manual 6. Choose the printer model, then click "Next". Note: If you have already installed the driver (No matter what kind of ports), it will generate a USB port automatically when connecting the printer to computer. 7. Click "Finish".
- Page 27 CP-D80 User Manual 8. You can see the printer icon in start → devices and printers. Note: If you have already installed the driver (No matter what kind of ports), it will generate a USB port automatically when connecting the printer to computer.
-
Page 28: Usage
CP-D80 User Manual 4.3 Usage 4.3.1 Printing Preferences 1.Click “Start” → “Devices and Printers”. Right click icon and choose “Printing preferences”. - Page 29 CP-D80 User Manual 2.According to different needs, set up the page.
- Page 30 CP-D80 User Manual 3.Click “Advanced”. 1) Duplex color printing “Color mode” is selected for both front and back options.
- Page 31 CP-D80 User Manual 2) Single sided color printing The color mode of the front option is "Color Mode", and the back option is "Single Color Mode" or "Do Not Print".
- Page 32 CP-D80 User Manual 3) Single sided monochrome printing The color mode of the front option is "Single Color Mode", and the back option is "Do Not Print". Note: the magnetic stripe or chip area on the card is not printed, as shown in the figure.
-
Page 33: Printer Properties
CP-D80 User Manual 4.3.2 Printer Properties 1.Click “Start” → “Devices and Printers”. Right click the icon and choose “Printer properties”. - Page 34 CP-D80 User Manual 2.Click “General” → “Print Test Page”, and printer will print labels with current settings.
- Page 35 CP-D80 User Manual 3. Click port to select the type of port you want. (please refer to Chapter 5 Windows Driver Instruction for specific operation)
- Page 36 CP-D80 User Manual 4.Click “Advanced” to set the available time for printer.
-
Page 37: Removing
CP-D80 User Manual 4.4 Removing Note: Please turn off the printer or unplug the USB cable before removing the driver. 1.Double click Windows Driver. 2.Choose “Uninstall printer driver”, then click “Next”. - Page 38 CP-D80 User Manual 3.Choose the printer driver name needed to uninstall, then click “Next”.
-
Page 39: Chapter 5 Windows Driver Instruction
CP-D80 User Manual Chapter 5 Windows Driver Instruction 5.1 Connect the printer to PC driver (USB) Note: Under different operating systems, the screen may be slightly different. Take Windows 7 as example. Please make sure that the driver has been installed. - Page 40 CP-D80 User Manual 2. Select "device manager" in the window, then find the USB controller and click "USB printing support"...
- Page 41 CP-D80 User Manual 3. Select "USB print support", right-click and select "Properties", - "Details" - "Property" - "Bus relations". After selecting, you can find the USB port number in the value options. For example, the port number is 003 in the figure.
- Page 42 CP-D80 User Manual...
- Page 43 CP-D80 User Manual 4. Click “Start” → “Devices and Printers”. Right click the icon and choose “Printer properties”.
- Page 44 CP-D80 User Manual 5. Click "port", find the corresponding USB port number, select and click “apply”.
- Page 45 CP-D80 User Manual 5.2 Connect the printer to PC driver (Ethernet) Note: Under different operating systems, the screen may be slightly different. Take Windows 7 as example. Make sure the printer and PC are in the same LAN.
- Page 46 CP-D80 User Manual 3. Select “Standard TCP/IP Port”, and then click “New port”.
- Page 47 CP-D80 User Manual 4. Click “Next”. 5. Enter the printer name or IP address and click “Next”.
- Page 48 CP-D80 User Manual 6. Click “Next”.
- Page 49 CP-D80 User Manual 7. Click “Finish”. 8. Return to the port page, select the port you have added, and click “Apply”.
- Page 50 CP-D80 User Manual 9. Click “General”, and select “Print test page” to test whether the printer is connected to the computer.
