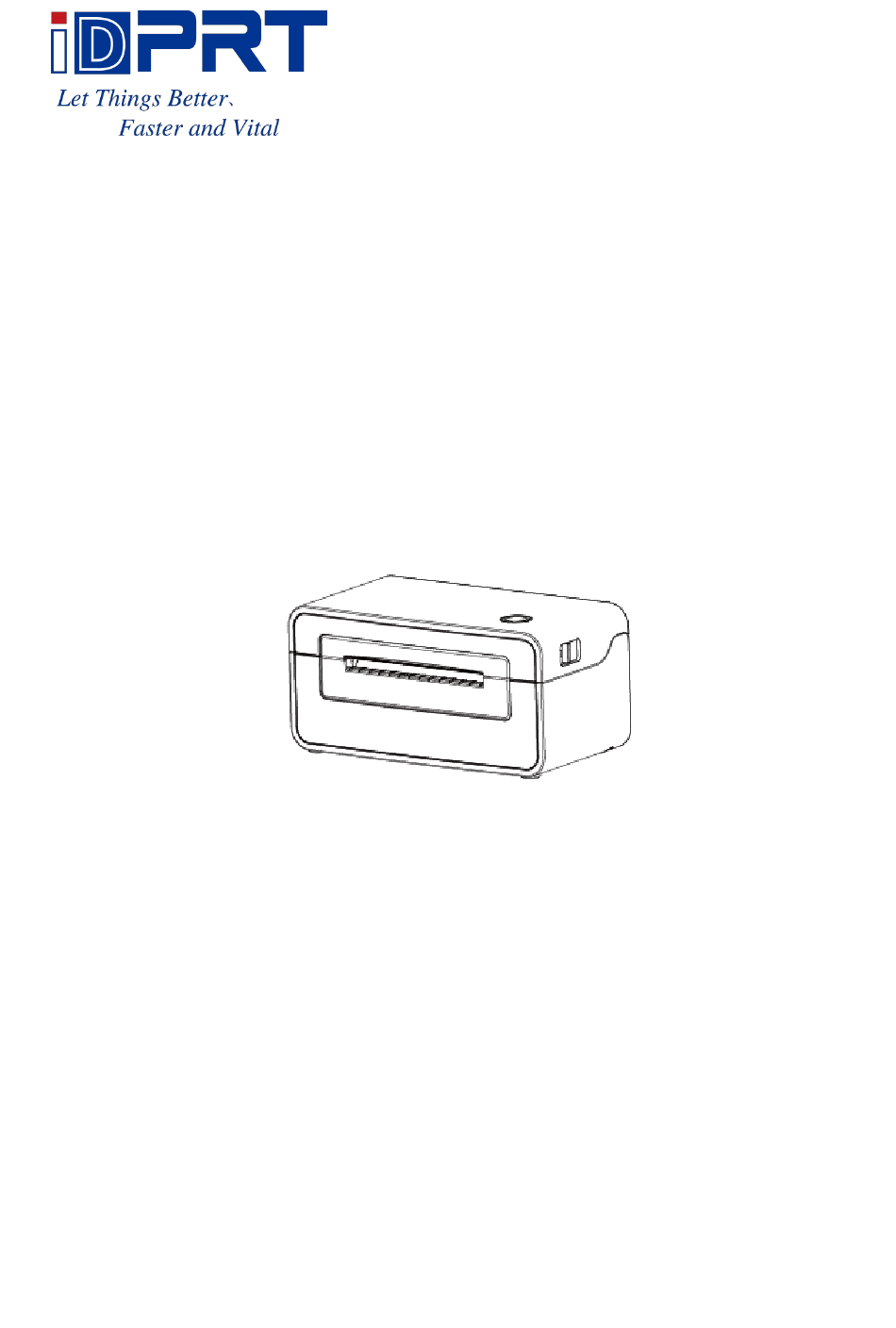

- Page 1 SP410 User Manual Xiamen Hanin Electronic Technology Co., Ltd. ADD: 5F, 8#, Aide Airport Industrial Park, Huli District, Xiamen, China Web: www.idprt.com...
- Page 3 CONTENT Chapter 1 Introduction ........................1 1.1 Packing List ........................1 1.2 Appearance and Components ................... 2 Chapter 2 Installation & Usage ......................3 2.1 Media Loading ........................3 2.2 Power Connection ......................7 2.3 Operation Panel ......................... 8 CHAPTER 3 WINDOWS DRIVER INSTRUCTION ................9 3.1 Installation Preparation .....................
- Page 4 SP410 User Manual CHAPTER 1 INTRODUCTION 1.1 Packing List Note: 1.Unpack the printer and keep the packing materials in case you need to ship the printer in the future. 2.Any damages exist, please contact the local dealer. ■Standard ■Optional Note ： The packing materials are based on the order.
- Page 5 SP410 User Manual 1.2 Appearance and Components ￭ Front View ￭ Rear View ￭ Inside View Note ： The views above are for your reference. Ports vary by your choice.
- Page 6 SP410 User Manual CHAPTER 2 INSTALLATION & USAGE 2.1 Media Loading 2.1.1 Paper Roll Loading ■ Folding Paper Loading 1.Turn the power on, adjust the paper guides to fit the width of paper. 2.Insert the paper into the entry slot.
- Page 7 SP410 User Manual ■ External Paper Roll Loading NOTE: 1) When the printer is power on, the paper will be inhaled into the path automatically. 2) The external paper roll holders need to be aligned with the hooks at the bottom of the...
- Page 8 SP410 User Manual 2.1.2 Paper Jam 1. Press the cover open levers and hold upwards. 2. Open the printer cover. 3. Take out the jammed paper, then clean up the print head and platen, then reload a new paper.
- Page 9 SP410 User Manual 2.1.3 Loading the external paper roll...
- Page 10 SP410 User Manual 2.2 Power Connection 1. Make sure the printer’s power switch is in the off position. 2. Connect the power cord to printer. 3. Connect the other end of power cord to the outlet. NOTE: 1.Use the original power adapter only, in case that the damage caused by charging improperly.
- Page 11 SP410 User Manual 2.3 Operation Panel 1.Feed Button: ◼ Turn on In the shutdown state, turn on the power switch behind the printer, then the indicator will be light on. ◼ Turn off When the power switch is turned off, the printer shuts down and the indicator light is off. In the power-on state, turn off the power switch behind the printer, then the indicator will be light off.
- Page 12 CHAPTER 3 WINDOWS DRIVER INSTRUCTION 3.1 Installation Preparation Download Windows Driver application program in CD. E.g. iDPRT Label Printer Driver-v-2.7.2.7 3.2 Installation Warning: There are some differences under different operating system. Please operate it according to the tips. Recommend to close security software before installation in case of preventing installation.
- Page 13 SP410 User Manual 5.Select the default installation port name of printer driver, then click “Next”. 6.Click"Finish".
- Page 14 SP410 User Manual 7.After installation, the icon will be found in “Start” → “Devices and Printers”. Note: 1.If you have already installed the driver (No matter what kind of ports), it will generate a USB port automatically when connecting the printer to computer.
- Page 15 SP410 User Manual 3.3 Usage 3.3.1 Printing Preferences 1.Click “Start” → “Devices and Printers”. Right click the icon and choose “Printing preferences”.
- Page 16 SP410 User Manual 2.According to different needs, set the page.
- Page 17 SP410 User Manual ●Click “Paper Name”, then choose the paper type.
- Page 18 SP410 User Manual ●Click “Manager” to add a new stock. ●Choose “Rotate” or “Effect”, it will be showed in the “Preview”.
- Page 19 SP410 User Manual ●Click “Advanced” to set “Save Paper”, “Density”, “Speed”, “Test”, “Media Handing”, “Media Type”. 1) Save Paper 2) Density...
- Page 20 SP410 User Manual 3) Speed 4) Test...
- Page 21 SP410 User Manual 5) Media Handing 6) Media type...
- Page 22 SP410 User Manual 3.Click “Watermark”, it recommends to use BMP format.
- Page 23 SP410 User Manual 4.Click “Halftone”.
- Page 24 SP410 User Manual 3.3.2 Printer Properties 1.Click “Start” → “Devices and Printers”. Right click the icon and choose “Printer properties”.
- Page 25 SP410 User Manual 2.Click “General” → “Print Test Page”, and printer will print labels with current settings.
- Page 26 SP410 User Manual 3.Click “Ports”, then choose the port needed.
- Page 27 SP410 User Manual 4.Click “Advanced” to set the available time for the printer.
- Page 28 SP410 User Manual 3.4 Removing Note: Please turn off the printer or unplug the USB cable before removing the driver. 1.Double click Windows Driver. 2.Choose “Uninstall printer driver”, then click “Next”.
- Page 29 SP410 User Manual 3.Choose the printer driver name needed to uninstall, then click “Next”. 4.Click"Yes".
- Page 30 The driver of the installation file name is “iDPRT-SP410-printer-driver-v1.3.0” 4.2 Driver Installation for macOS Warning: Under different operating system, the screen has slight difference. Please operate it according to the tips. Take SP410 (macOS 10.15) as example. 1. Double click the Driver, click “Continue”.
- Page 31 SP410 User Manual 2. Select a destination and click “Continue”.
- Page 32 SP410 User Manual 3. Choose “Installation Type” and click “Continue”-> “Install”.
- Page 33 SP410 User Manual 4. Type in the password of your computer. 5. The installation was successful.
- Page 34 SP410 User Manual 6. Turn on the printer and connect it to your computer (for example: via USB cable) 7. Click: Launchpad -> System Preferences -> Printers & Scanners. 8. Under “Printer & Scanner”, printer SP410 is available.
- Page 36 Xiamen Hanin Electronic Technology Co., Ltd. ADD: 5F, 8#, Aide Airport Industrial Park, Huli District, Xiamen, China Web: www.idprt.com...
