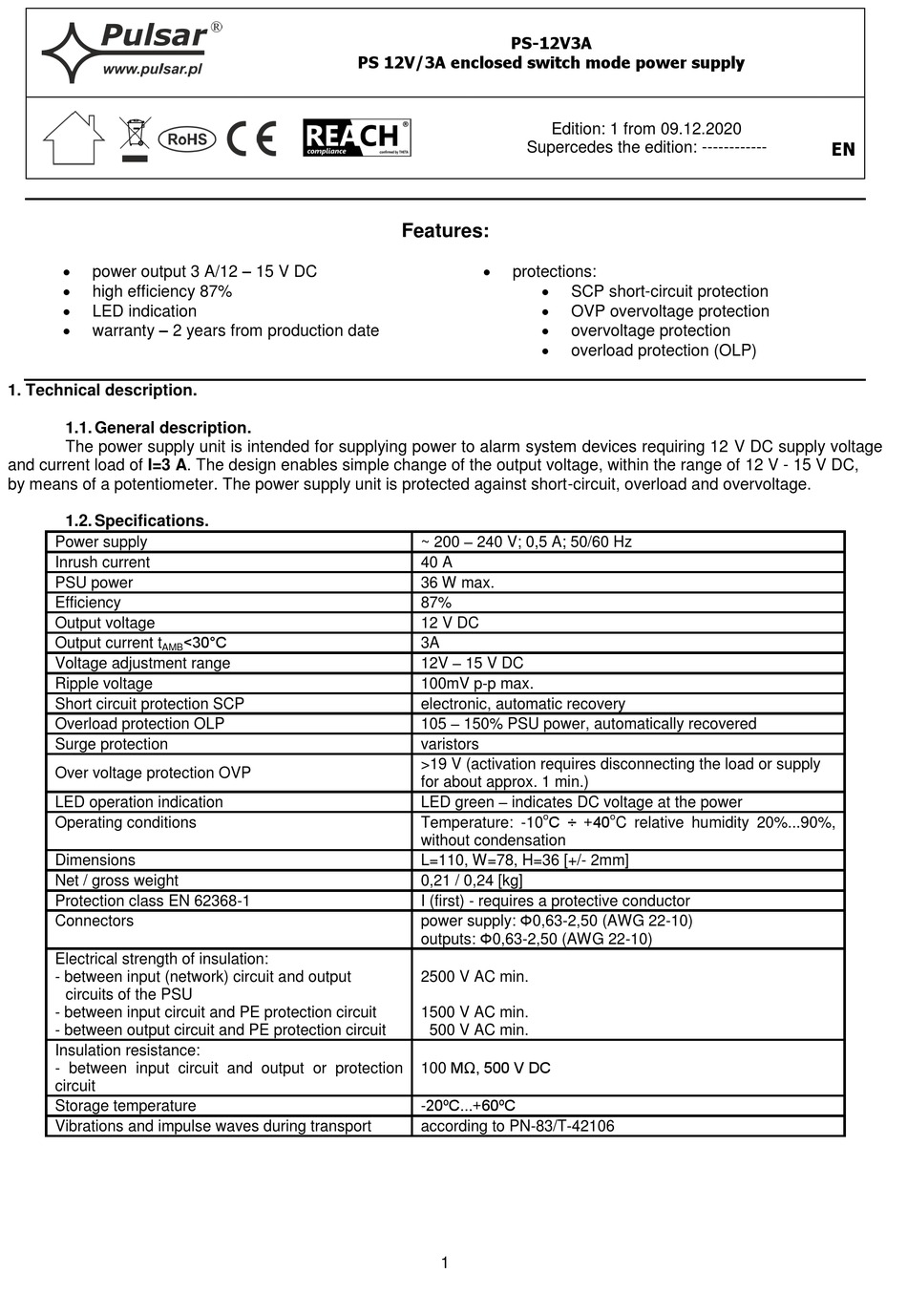

Pulsar PS-12V3A Manual


power output 3 A/12 – 15 V DC

high efficiency 87%

LED indication

warranty – 2 years from production date
1. Technical description.
1.1. General description.
The power supply unit is intended for supplying power to alarm system devices requiring 12 V DC supply voltage
and current load of I=3 A. The design enables simple change of the output voltage, within the range of 12 V - 15 V DC,
by means of a potentiometer. The power supply unit is protected against short-circuit, overload and overvoltage.
1.2. Specifications.
Power supply
Inrush current
PSU power
Efficiency
Output voltage
Output current t
AMB
Voltage adjustment range
Ripple voltage
Short circuit protection SCP
Overload protection OLP
Surge protection
Over voltage protection OVP
LED operation indication
Operating conditions
Dimensions
Net / gross weight
Protection class EN 62368-1
Connectors
Electrical strength of insulation:
- between input (network) circuit and output
circuits of the PSU
- between input circuit and PE protection circuit
- between output circuit and PE protection circuit
Insulation resistance:
- between input circuit and output or protection
circuit
Storage temperature
Vibrations and impulse waves during transport
<30°C
PS-12V3A
PS 12V/3A enclosed switch mode power supply
Features:

protections:
~ 200 – 240 V; 0,5 A; 50/60 Hz
40 A
36 W max.
87%
12 V DC
3A
12V – 15 V DC
100mV p-p max.
electronic, automatic recovery
105 – 150% PSU power, automatically recovered
varistors
>19 V (activation requires disconnecting the load or supply
for about approx. 1 min.)
LED green – indicates DC voltage at the power
Temperature: -10
without condensation
L=110, W=78, H=36 [+/- 2mm]
0,21 / 0,24 [kg]
I (first) - requires a protective conductor
power supply: Φ0,63-2,50 (AWG 22-10)
outputs: Φ0,63-2,50 (AWG 22-10)
2500 V AC min.
1500 V AC min.
500 V AC min.
100 MΩ, 500 V DC
-20ºC...+60ºC
according to PN-83/T-42106
1
Edition: 1 from 09.12.2020
Supercedes the edition: ------------

SCP short-circuit protection

OVP overvoltage protection

overvoltage protection

overload protection (OLP)
o o
C ÷ +40
C relative humidity 20%...90%,
EN
