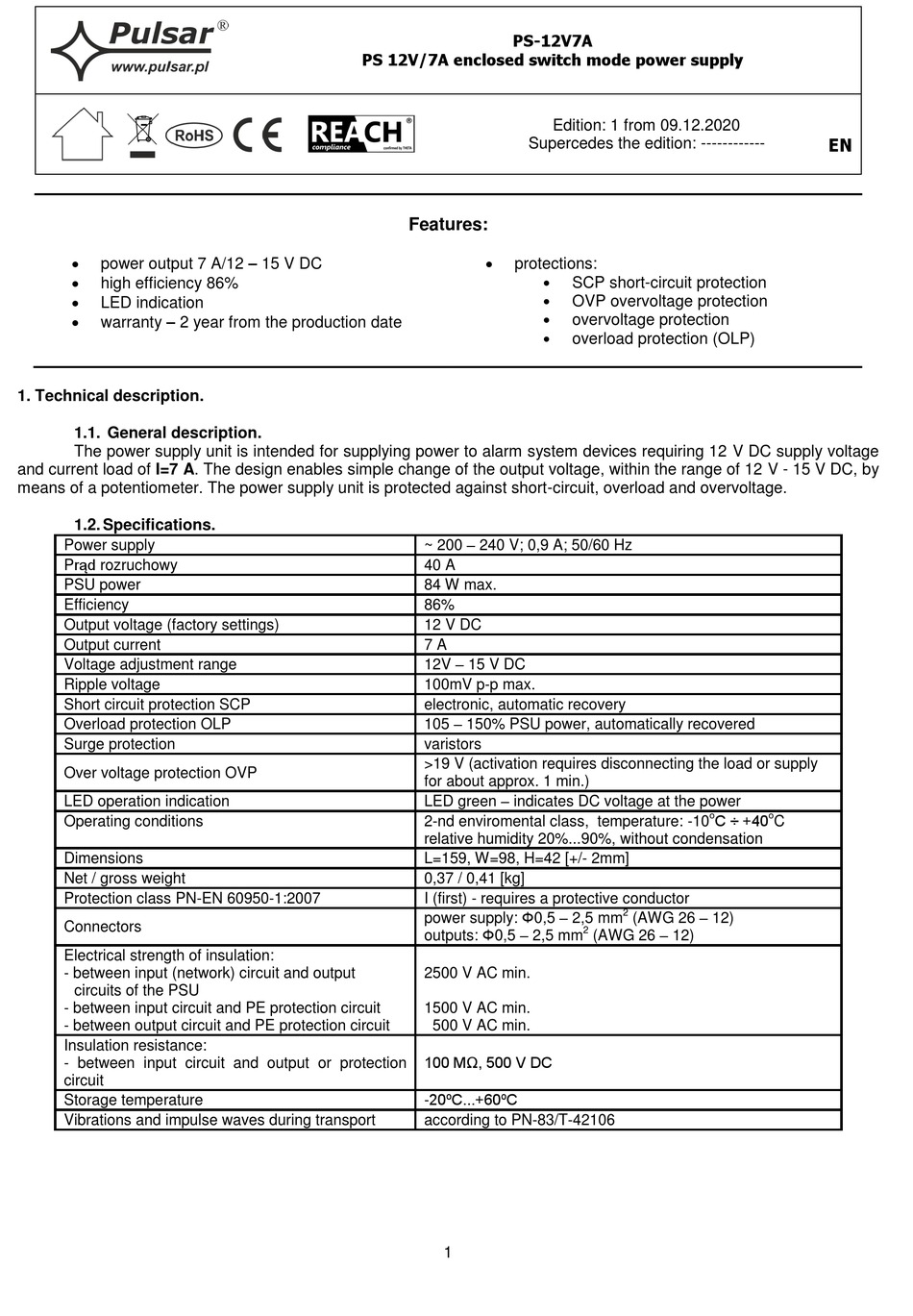

Pulsar PS-12V7A Quick Start Manual


power output 7 A/12 – 15 V DC

high efficiency 86%

LED indication

warranty – 2 year from the production date
1. Technical description.
1.1. General description.
The power supply unit is intended for supplying power to alarm system devices requiring 12 V DC supply voltage
and current load of I=7 A. The design enables simple change of the output voltage, within the range of 12 V - 15 V DC, by
means of a potentiometer. The power supply unit is protected against short-circuit, overload and overvoltage.
1.2. Specifications.
Power supply
Prąd rozruchowy
PSU power
Efficiency
Output voltage (factory settings)
Output current
Voltage adjustment range
Ripple voltage
Short circuit protection SCP
Overload protection OLP
Surge protection
Over voltage protection OVP
LED operation indication
Operating conditions
Dimensions
Net / gross weight
Protection class PN-EN 60950-1:2007
Connectors
Electrical strength of insulation:
- between input (network) circuit and output
circuits of the PSU
- between input circuit and PE protection circuit
- between output circuit and PE protection circuit
Insulation resistance:
- between input circuit and output or protection
circuit
Storage temperature
Vibrations and impulse waves during transport
PS-12V7A

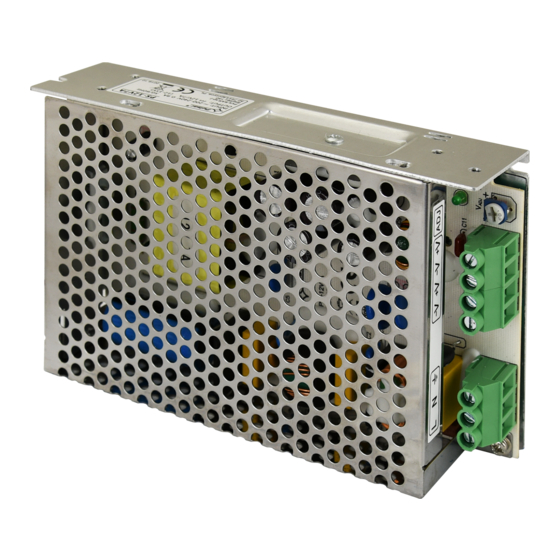

PS 12V/7A enclosed switch mode power supply
Supercedes the edition: ------------
Features:

protections:
~ 200 – 240 V; 0,9 A; 50/60 Hz
40 A
84 W max.
86%
12 V DC
7 A
12V – 15 V DC
100mV p-p max.
electronic, automatic recovery
105 – 150% PSU power, automatically recovered
varistors
>19 V (activation requires disconnecting the load or supply
for about approx. 1 min.)
LED green – indicates DC voltage at the power
2-nd enviromental class, temperature: -10
relative humidity 20%...90%, without condensation
L=159, W=98, H=42 [+/- 2mm]
0,37 / 0,41 [kg]
I (first) - requires a protective conductor
power supply: Φ0,5 – 2,5 mm
outputs: Φ0,5 – 2,5 mm
2500 V AC min.
1500 V AC min.
500 V AC min.
100 MΩ, 500 V DC
-20ºC...+60ºC
according to PN-83/T-42106
1
Edition: 1 from 09.12.2020

SCP short-circuit protection

OVP overvoltage protection

overvoltage protection

overload protection (OLP)
o
2 (AWG 26 – 12)
2 (AWG 26 – 12)
EN
o
C ÷ +40
C
