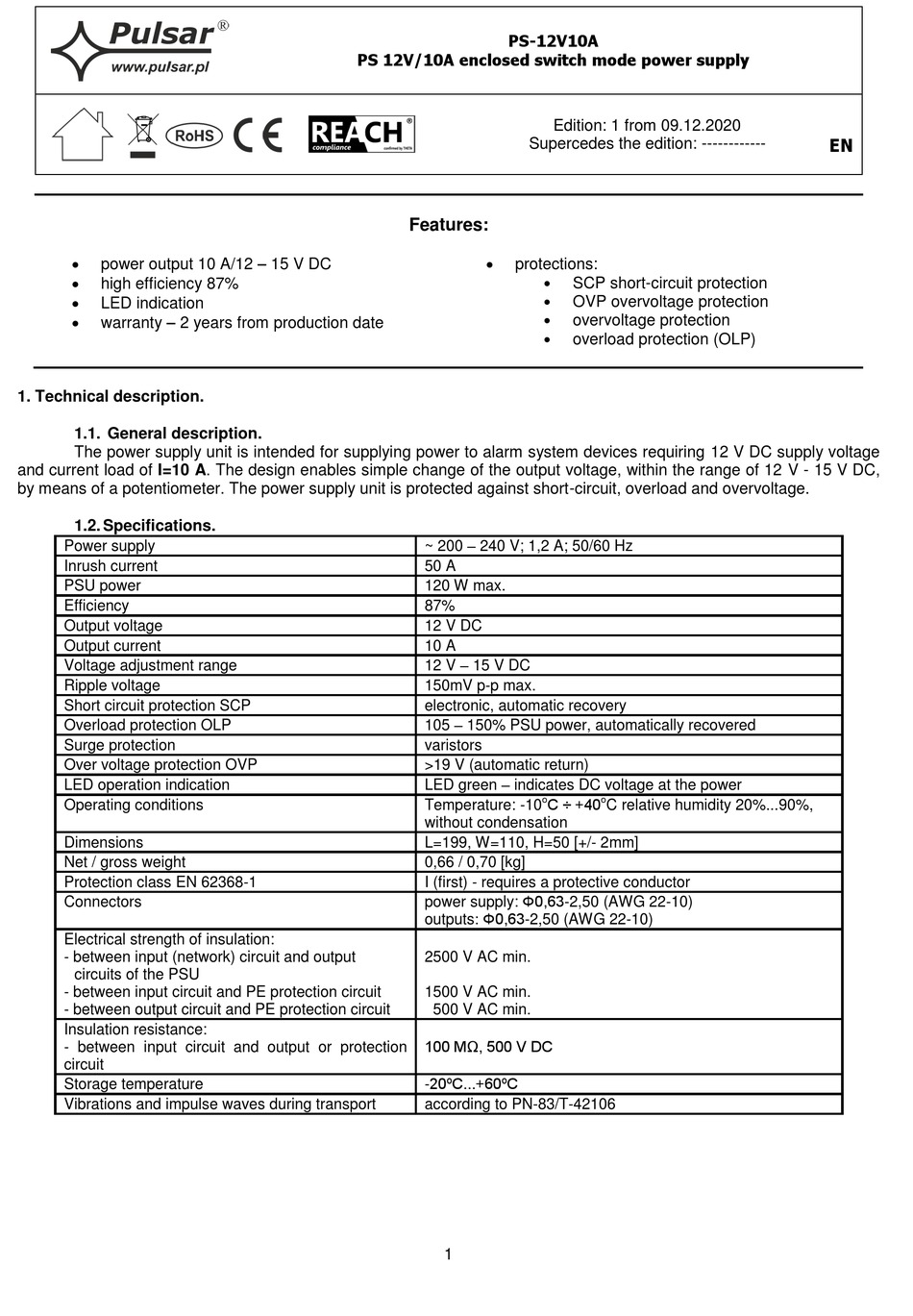

Pulsar PS-12V10A Manual


power output 10 A/12 – 15 V DC

high efficiency 87%

LED indication

warranty – 2 years from production date
1. Technical description.
1.1. General description.
The power supply unit is intended for supplying power to alarm system devices requiring 12 V DC supply voltage
and current load of I=10 A. The design enables simple change of the output voltage, within the range of 12 V - 15 V DC,
by means of a potentiometer. The power supply unit is protected against short-circuit, overload and overvoltage.
1.2. Specifications.
Power supply
Inrush current
PSU power
Efficiency
Output voltage
Output current
Voltage adjustment range
Ripple voltage
Short circuit protection SCP
Overload protection OLP
Surge protection
Over voltage protection OVP
LED operation indication
Operating conditions
Dimensions
Net / gross weight
Protection class EN 62368-1
Connectors
Electrical strength of insulation:
- between input (network) circuit and output
circuits of the PSU
- between input circuit and PE protection circuit
- between output circuit and PE protection circuit
Insulation resistance:
- between input circuit and output or protection
circuit
Storage temperature
Vibrations and impulse waves during transport
PS-12V10A

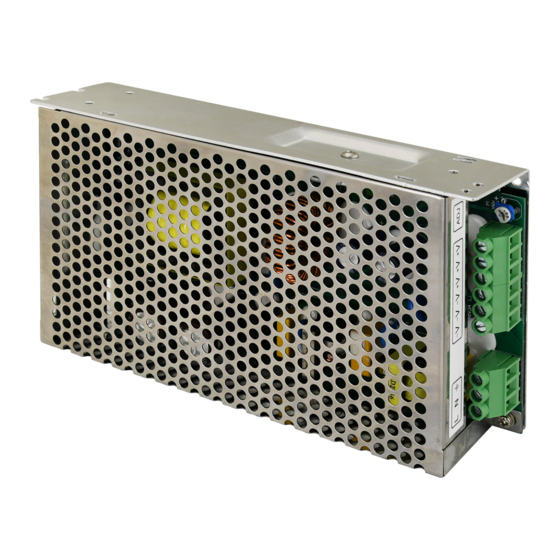

PS 12V/10A enclosed switch mode power supply
Features:

protections:
~ 200 – 240 V; 1,2 A; 50/60 Hz
50 A
120 W max.
87%
12 V DC
10 A
12 V – 15 V DC
150mV p-p max.
electronic, automatic recovery
105 – 150% PSU power, automatically recovered
varistors
>19 V (automatic return)
LED green – indicates DC voltage at the power
Temperature: -10
without condensation
L=199, W=110, H=50 [+/- 2mm]
0,66 / 0,70 [kg]
I (first) - requires a protective conductor
power supply: Φ0,63-2,50 (AWG 22-10)
outputs: Φ0,63-2,50 (AWG 22-10)
2500 V AC min.
1500 V AC min.
500 V AC min.
100 MΩ, 500 V DC
-20ºC...+60ºC
according to PN-83/T-42106
1
Edition: 1 from 09.12.2020
Supercedes the edition: ------------

SCP short-circuit protection

OVP overvoltage protection

overvoltage protection

overload protection (OLP)
o C ÷ +40 o
C relative humidity 20%...90%,
EN
