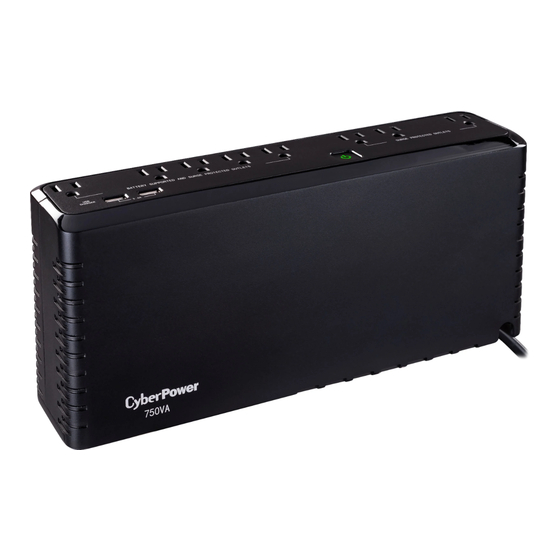

CyberPower SL700U User Manual

YOUR ULTIMATE ALLY IN POWER
SLIM BATTERY BACKUP UPS SERIES
SL700U / SL750U / SL900UC
USER MANUAL
9
5

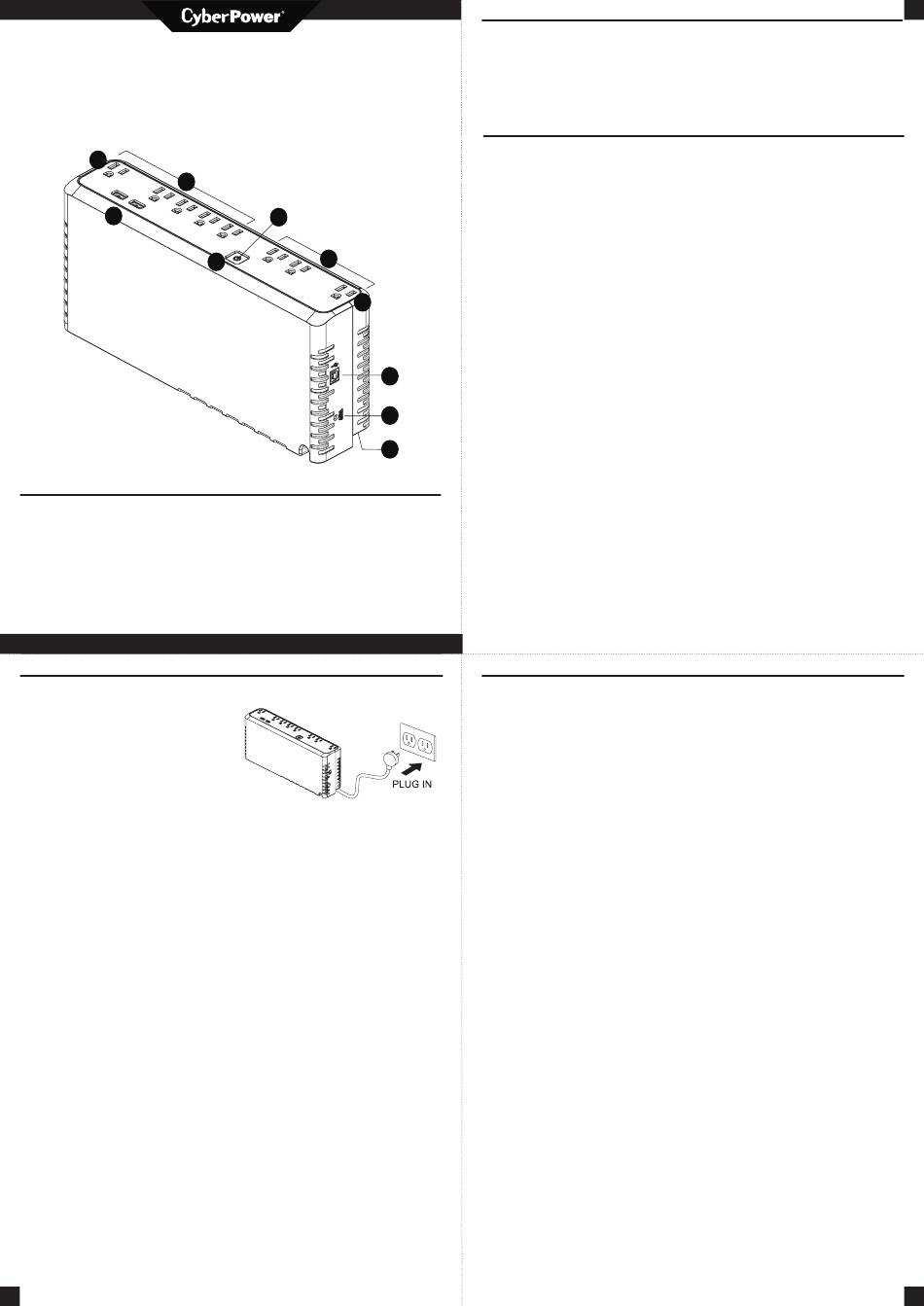

FEATURES
1. Power On Switch
2. Power On Indicator (green)
3. Battery and Surge Protected Outlets
4. Full-Time Surge Protection Outlets
5. USB Charging Ports
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt.
The box should contain the following:
(a) UPS unit
(b) User's manual
(c) USB device cable
DETERMINE THE POWER
REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into
the outlet does not exceed the UPS unit's
rated capacity (700VA/370W for SL700U,
750VA/375W for SL750U, 900VA/450W
for SL900UC). If the rated capacities of the
unit are exceeded, an overload condition
may occur and cause the UPS unit to shut
down or the circuit breaker to trip.
2. There are many factors that can affect
the amount of power that your electronic
equipment will require. For optimal system
performance keep the load below 80% of
the unit's rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately
upon receipt. However, after receiving a
new UPS, to ensure the battery's maximum
charge capacity, it is recommended that
you charge the battery for at least 8 hours.
Your UPS is equipped with an auto-charge
feature. When the UPS is plugged into an
AC outlet, the battery will automatically
charge whether the UPS is turned on or
turned off.
2. With the UPS unit turned off and unplugged,
connect your equipment requiring
battery backup into the battery power
supplied outlets. Plug the other peripheral
equipment (printer, scanner, speakers) into
the full-time surge protection outlets.
DO NOT plug a laser printer, paper
shredder, copier, space heater, vacuum,
sump pump or other large electrical
device into the "Battery and Surge
Protected Outlets". The power demands
of these devices will overload and possibly
damage the unit.
3
3
2
4
1
6. Circuit Breaker
7. USB Port to PC
8. Wiring Fault Indicator (red)
9. Widely-Spaced Outlets
3. Plug the UPS into a 2-pole, 3-wire grounded
receptacle (wall outlet). Make sure the
wall branch outlet is protected by a fuse
or circuit breaker and does not service
equipment with large electrical demands
(e.g. air conditioner, refrigerator, copier,
etc...). The warranty prohibits the use of
extension cords, outlet strips, and surge
strips.
4. Press the power switch to turn the unit on.
The Power On indicator light will illuminate
green and the unit will "beep" twice.
5. If an overload is detected, an audible alarm
will sound and the unit will emit one long
beep. To correct this, turn the UPS off and
unplug at least one piece of equipment
from the battery power supplied outlets.
Make sure the circuit breaker is depressed
and then turn the UPS on.
6. To maintain optimal battery charge,
leave the UPS plugged into an AC outlet
at all times.
7. To store the UPS for an extended period
of time, cover it and store with the battery
fully charged. While in storage, recharge
the battery every three months to ensure
optimal battery life.
8. Ensure the wall outlet and UPS are located
near the equipment being attached for
proper accessibility.
9. Lay the UPS horizontally or use the key-
hole mounting slots to affix the UPS to the
wall in the proper orientation.
PRODUCT REGISTRATION
Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed
power protection, operation, and performance during the lifetime of the product. Please take a
few minutes to register your product at: www.CyberPowerSystems.com/registration.
Registration certifies your product's warranty, confirms your ownership in the event of a product
loss or theft, and entitles you to free technical support. Register your product now to receive the
benefits of CyberPower ownership.
IMPORTANT SAFETY WARNINGS
This manual contains important safety instructions. Please read and follow all instructions carefully
during installation and operation of the unit. Read this manual thoroughly before attempting to
unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or
electric shock, install in a temperature and
humidity controlled indoor area free of
conductive contaminants. (Please see
specifications for acceptable temperature
and humidity range).
CAUTION! To reduce the risk of electric shock,
do not remove the cover. There are no user-
9
serviceable parts inside.
CAUTION! Hazardous live parts inside can be
energized by the battery even when the AC
input power is disconnected.
CAUTION! The UPS must be connected to an
7
AC power outlet with fuse or circuit breaker
protection. Do not plug into an outlet that is
not grounded. If you need to de-energize this
equipment, turn off and unplug the unit.
8
CAUTION! To avoid electric shock, turn off the
unit and unplug it from the AC power source
6
before installing a computer component.
CAUTION! To reduce the risk of fire, connect
only to a circuit provided with 20 amperes
maximum branch circuit over current
protection in accordance with the National
Electric Code, ANSI/NFPA 70.
CAUTION! Not for use in a computer room as
defined in the Standard for the Protection of
Electronic Computer / Data Processing
Equipment, ANSI/NFPA 75.
BASIC OPERATION
1. Power On Switch
To turn the UPS on, press the power button
for approximately 2 seconds - you will hear
a constant tone (1 second) - and release
after a short beep.
To turn the UPS off, press the power button
for approximately 2 seconds - you will hear
a constant tone (1 second) - and release
after two short beeps.
Alarm setting: The audible alarm can be
turned OFF or ON by quickly pressing the
POWER button twice. The default setting
is for the Alarm On. To turn the Alarm Off,
quickly press the power button twice. You
will hear two short beeps when the Alarm
is turned off. To turn the Alarm back ON,
quickly press the power button twice. You
will hear a single short beep when the
Alarm is turned on.
*When the Alarm is turned off, there will
be no audible notification when the UPS
reaches a low battery state.
2. Power On Indicator (green)
This LED is illuminated when the utility
power is normal and the UPS outlets are
providing power, free of surges and spikes.
3. Battery and Surge Protected Outlets
The unit has five battery powered
and surge protected outlets to ensure
temporary uninterrupted operation of your
equipment during a power failure.
(DO NOT plug a laser printer, paper
shredder, copier, space heater, vacuum
cleaner, sump pump, or other large
electrical device into the "Battery and
Surge Protected Outlets." The power
demands of these devices will overload
and possibly damage the unit.)
(SAVE THESE INSTRUCTIONS)
CAUTION! Do not dispose of batteries in a fire.
The batteries may explode.
CAUTION! Do not open or mutilate batteries.
Released electrolyte is harmful to the skin and
eyes. It may be toxic.
DO NOT USE FOR MEDICAL
OR LIFE SUPPORT EQUIPMENT!
CyberPower Systems does not sell products
for life support or medical applications.
DO NOT use in any circumstance that would
affect operation and safety of life support
equipment, any medical applications or
patient care.
DO NOT USE WITH OR NEAR AQUARIUMS!
To reduce the risk of fire or electric shock,
do not use with or near an aquarium.
Condensation from the aquarium can cause
the unit to short out.
DO NOT USE THE UPS
ON ANY TRANSPORTATION!
To reduce the risk of fire or electric shock, do
not use the unit on any transportation such
as airplanes or ships. The effect of shock or
vibration caused during transit and the damp
environment can cause the unit to short out.
4. Full-Time Surge Protection Outlets
The unit has three surge suppression outlets.
5. USB Charging Ports
SL750U/SL700U: Two USB-A ports,
5V 2.4A power output
SL900UC: One USB-A port (5V 2.4A),
one USB-C port (5V 18W)
6. Circuit Breaker
Located on the side of the UPS, the circuit
breaker serves to provide overload and
fault protection.
7. USB Port to PC
The port allows connection and
communication between the USB port on
the computer and the UPS unit. The UPS
communicates its status to the PowerPanel®
Personal software.
8. Wiring Fault Indicator (red)
This LED indicator will illuminate to
warn the user that a wiring problem exists,
such as bad ground, missing ground or
reversed wiring. If this is illuminated,
disconnect all electrical equipment from
the outlet and have an electrician verify
the outlet is properly wired. The UPS will
not provide surge protection without being
plugged into a grounded and properly
wired wall outlet.
9. Widely-Spaced Outlets
The UPS unit has two widely-spaced
outlets, so AC power adapters can be
plugged into the UPS without overlapping
or blocking adjacent outlets.
