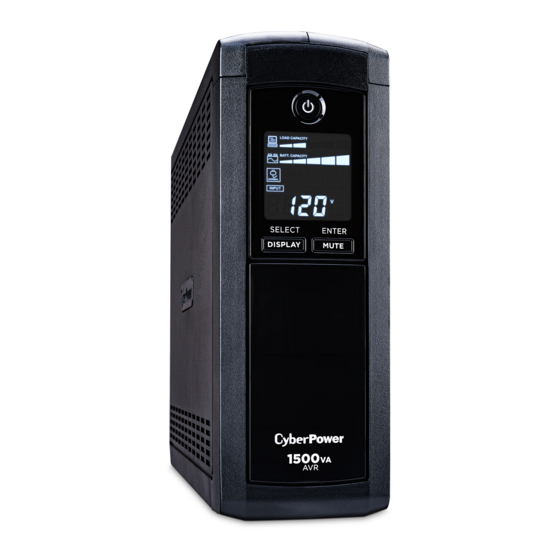

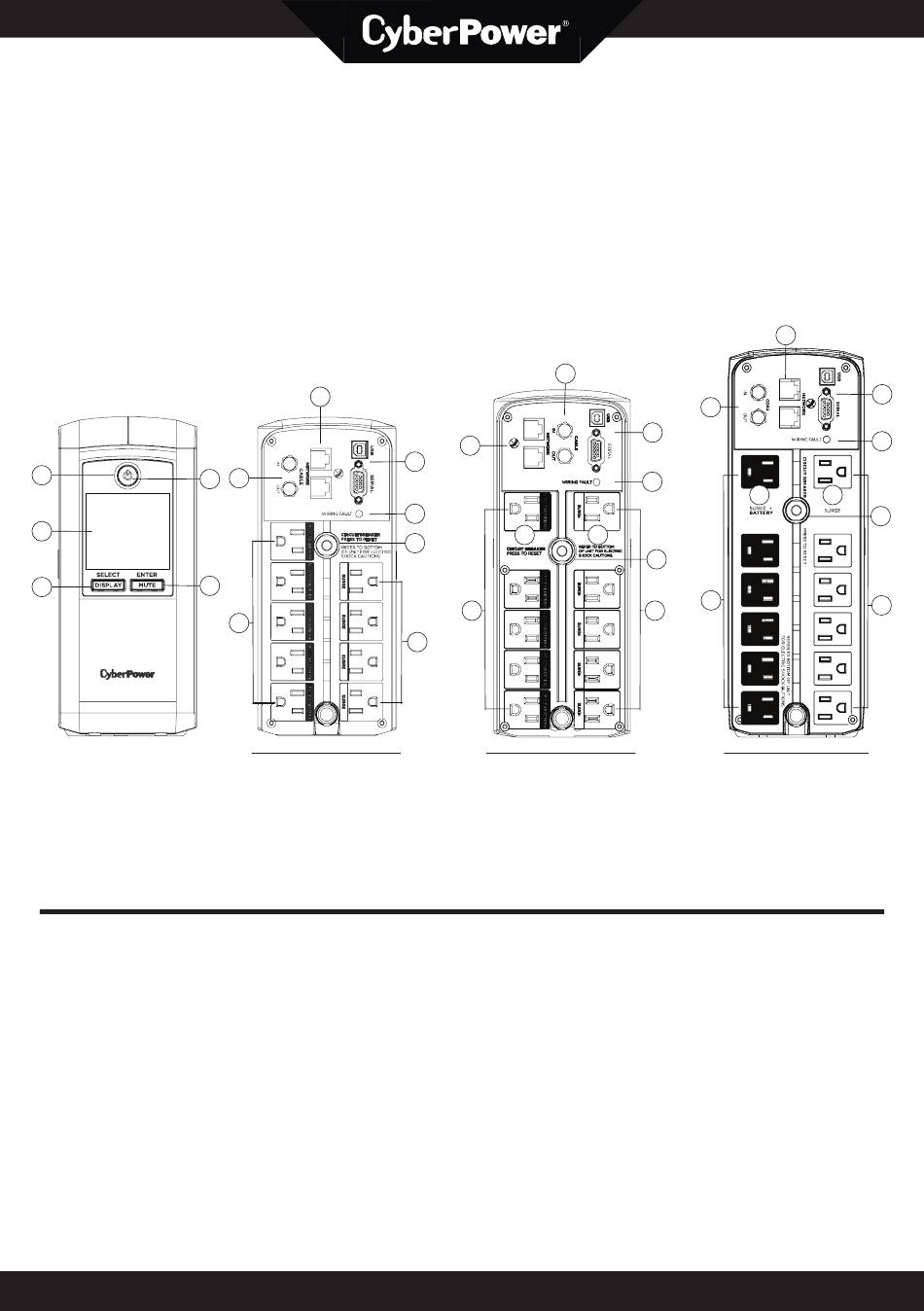

FEATURES
1.
Power Switch
2. Power On Indicator
3. LCD Module Display
4. Display/Select Button
5. Mute/Enter Button
6. Battery and Surge Protected Outlets
7. Full-Time Surge Protection Outlets
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
YOUR ULTIMATE ALLY IN POWER
INTELLIGENT UPS SERIES
CP850/1000/1350/1500AVRLCD
USER MANUAL
10
12
6
CP850/1000AVRLCD
Cyber Power Systems (USA), Inc.
12
10
9
11
13
8
6
7
CP1350AVRLCD
8. Circuit Breaker
9. DB9/USB Ports
10. Communication Protection Ports
11. Wiring Fault Indicator (red)
12. Coax/Cable/DSS Surge Protection
13. Widely-spaced Outlets
12
9
11
13
13
8
6
7
CP1500AVRLCD
10
9
11
13
8
7
Advertisement
Table of Contents
Related Manuals for CyberPower INTELLIGENT UPS Series
Summary of Contents for CyberPower INTELLIGENT UPS Series
- Page 1 YOUR ULTIMATE ALLY IN POWER INTELLIGENT UPS SERIES CP850/1000/1350/1500AVRLCD USER MANUAL CP1350AVRLCD CP1500AVRLCD CP850/1000AVRLCD FEATURES Power Switch 8. Circuit Breaker 2. Power On Indicator 9. DB9/USB Ports 3. LCD Module Display 10. Communication Protection Ports 4. Display/Select Button 11. Wiring Fault Indicator (red) 5.
-
Page 2: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed power protection, operation, and performance during the lifetime of the product. Please take a few minutes to register your product at: www.CyberPowerSystems.com/registration. Registration certifies your product’s warranty, confirms your ownership in the event of a product loss or theft, and entitles you to free technical support. -
Page 3: Installing Your Ups System
However, after receiving a PowerPanel® Personal software is available new UPS, to ensure the battery’s maximum on our website. Please visit www.cyberpower- charge capacity, it is recommended that systems.com and go to the Software Section you charge the battery for at least 8 hours. -
Page 4: Basic Operation
INSTALLING YOUR UPS SYSTEM - continued extension cords, outlet strips, and surge 6. To maintain optimal battery charge, leave the strips in conjunction with the UPS unit. UPS plugged into an AC outlet at all times. 4. Press the power switch to turn the unit on. 7. -
Page 5: Replacing The Battery
1. When replacing batteries, replace with the same number of the following batteries. Released material is harmful battery: CyberPower / RB1290 for the to the skin and eyes. It may be toxic. CP850/1000AVRLCD; CyberPower / 5. CAUTION: A battery can present a risk... - Page 6 REPLACING THE BATTERY - continued 6. Disconnect the battery wires from the batteries. 7. Remove the batteries from the compartment. 8. CP850/1000AVRLCD: Install the replacement batteries by connecting the red wire (+) and black wire (-) to the same color connectors. 9.
-
Page 7: Definitions For Illuminated Lcd Indicators
This displays the run time estimate of the This icon appears if there is a problem with UPS with current battery capacity and load. the UPS. Contact CyberPower Systems for further help and support. 4. NORMAL icon: E01: Charger Fault – Overcharge This icon appears when the UPS is working (Contact CyberPower Systems for support.) -
Page 8: Troubleshooting
The UPS will not turn on. Contact CyberPower Systems The battery is worn out. about replacement batteries at: cyberpowersystems.com/support. Contact CyberPower Systems at: Mechanical problem. cyberpowersystems.com/support. Connect the USB cable to the UPS The USB cable is not connected. unit and an open USB port on the back of the computer. -
Page 9: Technical Specifications
Net Weight 15.0lbs / 6.8kg 22.2lbs / 10.1kg 25lbs / 11.3kg CyberPower / CyberPower / Battery Type CyberPower / RB1290 RB1290X2 RB1290X2 Typical Battery Recharge 8 hours Time Typical Battery Life 3 to 6 years, depending on number of discharge/recharge cycles... -
Page 10: Fcc Compliance Statement
State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov. © 2021 CyberPower Systems (USA), Inc. PowerPanel® Personal is a trademark of Cyber Power Systems(USA) Inc. All rights reserved. All other trademarks are the property of their respective owners.
