Pacific Casual Griffith Park 14H0405CS-B1 Assembly Instructions

5-piece conversation set

P C

Paciﬁc

Casual

Griffith Park 5-Piece Conversation Set

Before you start

Please take out the table parts, and carefully remove wrapping

materials. Be careful not to get glass broken.

Check the part list and make sure you have all of the parts before

starting to assemble the products.

Before you start, make sure that you have the right tools in hand.

Keep the assembly instructions for future reference.

Assembly Instructions

LLC

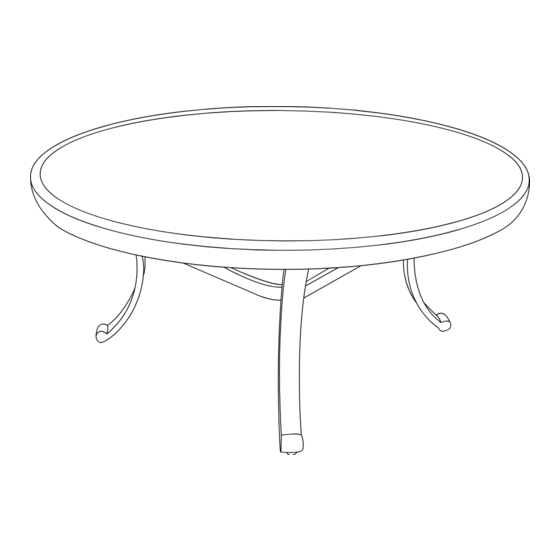

(48in. Round Chat Table)

Item#: 14H0405CS-B1

Page 1 of 4

Table of Contents

Do you have a question about the Griffith Park 14H0405CS-B1 and is the answer not in the manual?

Page 1 Paciﬁc Casual Assembly Instructions Griffith Park 5-Piece Conversation Set (48in. Round Chat Table) Item#: 14H0405CS-B1 Before you start Please take out the table parts, and carefully remove wrapping materials. Be careful not to get glass broken. Check the part list and make sure you have all of the parts before starting to assemble the products.
Page 2 Part List Ref# Description Illustration Table Rim Table Leg Connector Bracket Bolt(M6x15) Bolt(M6x25) Metal Washer Bolt Cap Wrench Page 2 of 4...
Page 3 Step 1 : Attach four table legs (B) to leg connector bracket (C) with eight washers (F) and eight bolts (E) to form a table base. Hand tighten bolts only until the end of step 2. Step 2 : Place the table top (A) upside down on a flat, smooth surface. Attach each table leg (B) to the table top (A) with two washers (F) and two bolts (D).
Page 4 Call between 7:30am to 4:30pm P.S.T Adjust the foot glides to level the table. (Monday to Friday ) Your table is now ready for use. Pacific Casual LLC 1060 Avenida Acaso, Camarillo, Ca 93012 Toll Free Number: (888) 445-7757 CustomerService@PacificCasual.com...
