Pacific Casual Rushreed 143-0349D-B3 Assembly Instructions

9 piece patio dining set

Download this manual

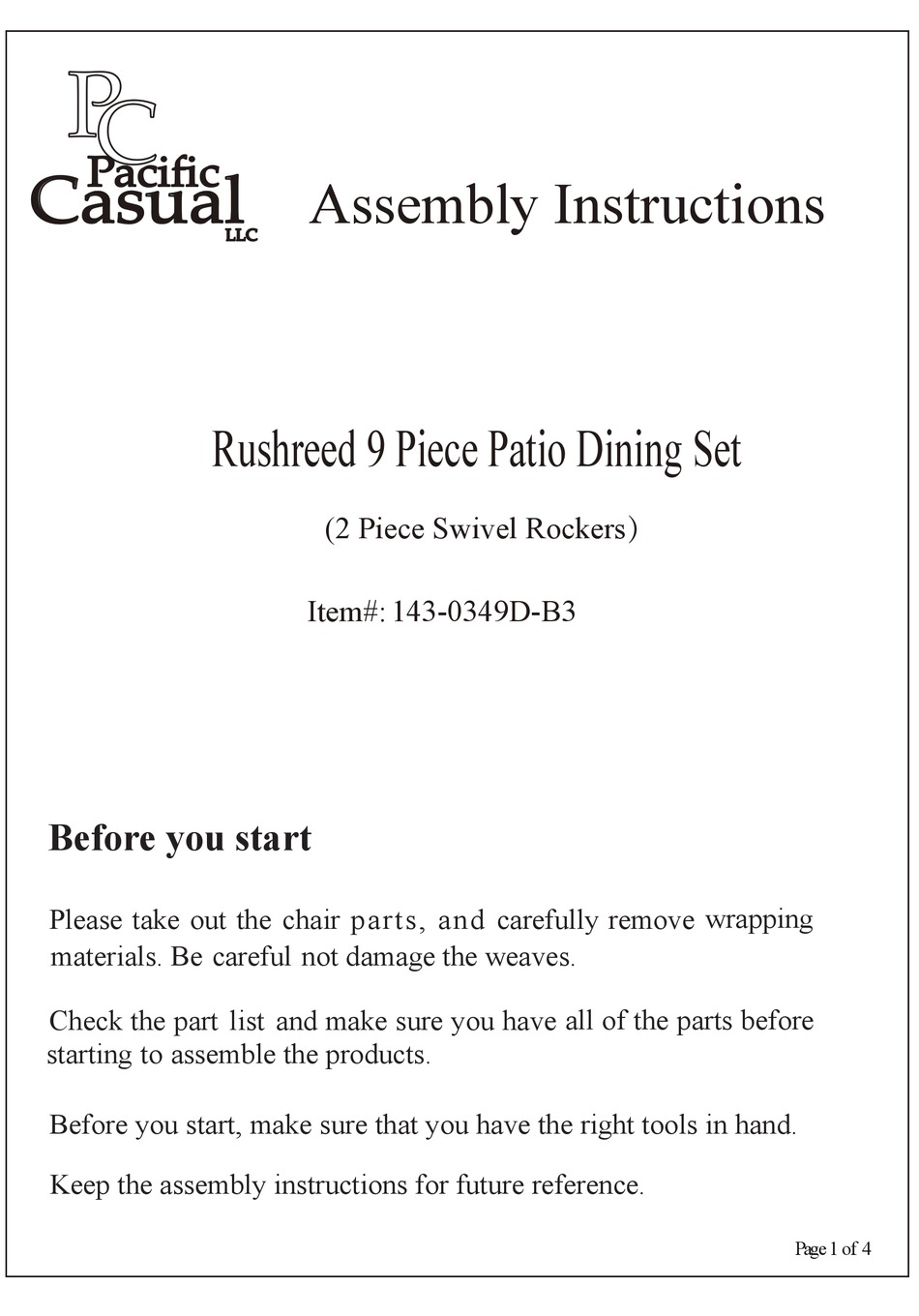

P C

Paciﬁc

Casual

Before you start

Please take out the chair parts, and carefully remove wrapping

materials. Be careful not damage the weaves.

Check the part list and make sure you have all of the parts before

starting to assemble the products.

Before you start, make sure that you have the right tools in hand.

Keep the assembly instructions for future reference.

Assembly Instructions

LLC

Rushreed 9 Piece Patio Dining Set

(2 Piece Swivel Rockers）

Item#: 143-0349D-B3

Page 1 of 4

Page 1 Paciﬁc Casual Assembly Instructions Rushreed 9 Piece Patio Dining Set (2 Piece Swivel Rockers） Item#: 143-0349D-B3 Before you start Please take out the chair parts, and carefully remove wrapping materials. Be careful not damage the weaves. Check the part list and make sure you have all of the parts before starting to assemble the products.
Page 2: Parts List
Parts List Ref# Description Illustration Seat and Back Chair Base with FRP Plate Bolt （N8x45） Washers Washer Plate Spring Washer Wrench Bolt Cap Nut Cap Wrench Page 2 of 4...
Page 3 Step 1 : Place the chair base (B) upside down on a smooth flat surface. Step 2 : From under the U-bar (2) of the chair base (B) attach seat and back (A) to the chair base (B) with washer plates (E), washers (D), spring washers (F) and bolts (C) from below U-bar (1) of the seat and back (A), and with washers plates (E), washers (D), spring washers (F) and nuts (G) from above U-bar (1).
Page 4: Customer Service
Turn the chair upright. Repeat step 1 to 3 for the other chair. Customer Service: Call between 7:30am to 4:30pm P.S.T (Monday to Friday ) Pacific Casual LLC 1060 Avenida Acaso, Camarillo, Ca 93012 Toll Free Number: (888) 445-7757 CustomerService@PacificCasual.com...
