Pacific Casual 183-W5A-DT1-V1-ST Assembly Instructions

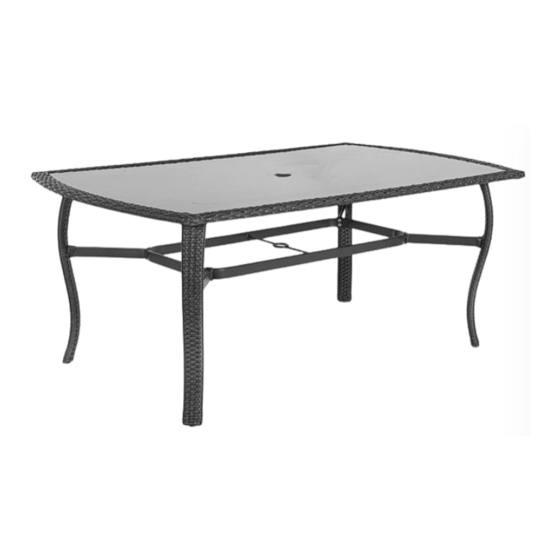

Tiara garden 68'' x 40'' rect. shaped dining table

ASSEMBLY INSTRUCTIONS

ITEM NUMBER: 183-W5A-DT1-V1-ST

ITEM NAME: Tiara Garden 68'' x 40'' Rect. Shaped Dining Table

Customer Service:

Toll Free: 888-445-6690 (7:30 am to 4:30 pm PST, Monday to Friday)

Supplier: Pacific Casual L.L.C.

Address: 1060 Avenida Acaso, Camarillo, CA 93012 E-Mail:

customerservice@pacificcasual.com

1/4

Table of Contents

Need help?

Do you have a question about the 183-W5A-DT1-V1-ST and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS ITEM NUMBER: 183-W5A-DT1-V1-ST ITEM NAME: Tiara Garden 68'' x 40'' Rect. Shaped Dining Table Customer Service: Toll Free: 888-445-6690 (7:30 am to 4:30 pm PST, Monday to Friday) Supplier: Pacific Casual L.L.C. Address: 1060 Avenida Acaso, Camarillo, CA 93012 E-Mail:...
Page 2 PRE-ASSEMBLY PREPARATION: THIS PACKAGE MAY CONTAIN SMALL ITEMS WHICH SHOULD BE KEPT AWAY FROM CHILDREN • Please check that all parts and hardware are included before beginning assembly. Save all packing materials until assembly is complete to avoid accidentally discarding smaller •...
Page 3 STEP-BY-STEP ASSEMBLY: Description Part No. Illustration Quantity Table Rim Table Leg Leg Connector Glass Top Hex wrench Bolt Cover B olt M6X20MM B olt M6X30MM Washer STEP-BY-STEP ASSEMBLY: Remove the glass top (D) and put it aside out of children’s reach. Place table rim (A) upside down on a flat, smooth surface.
Page 4 STEP-BY-STEP ASSEMBLY: Place leg connector (C) among four table legs (B) and make sure they line up properly. Secure leg connector (C) on table legs (B) with washers (J) and bolts (I) using hex wrench (E). Fully tighten all the bolts (H) and (I) and cover them with bolt covers (F).
