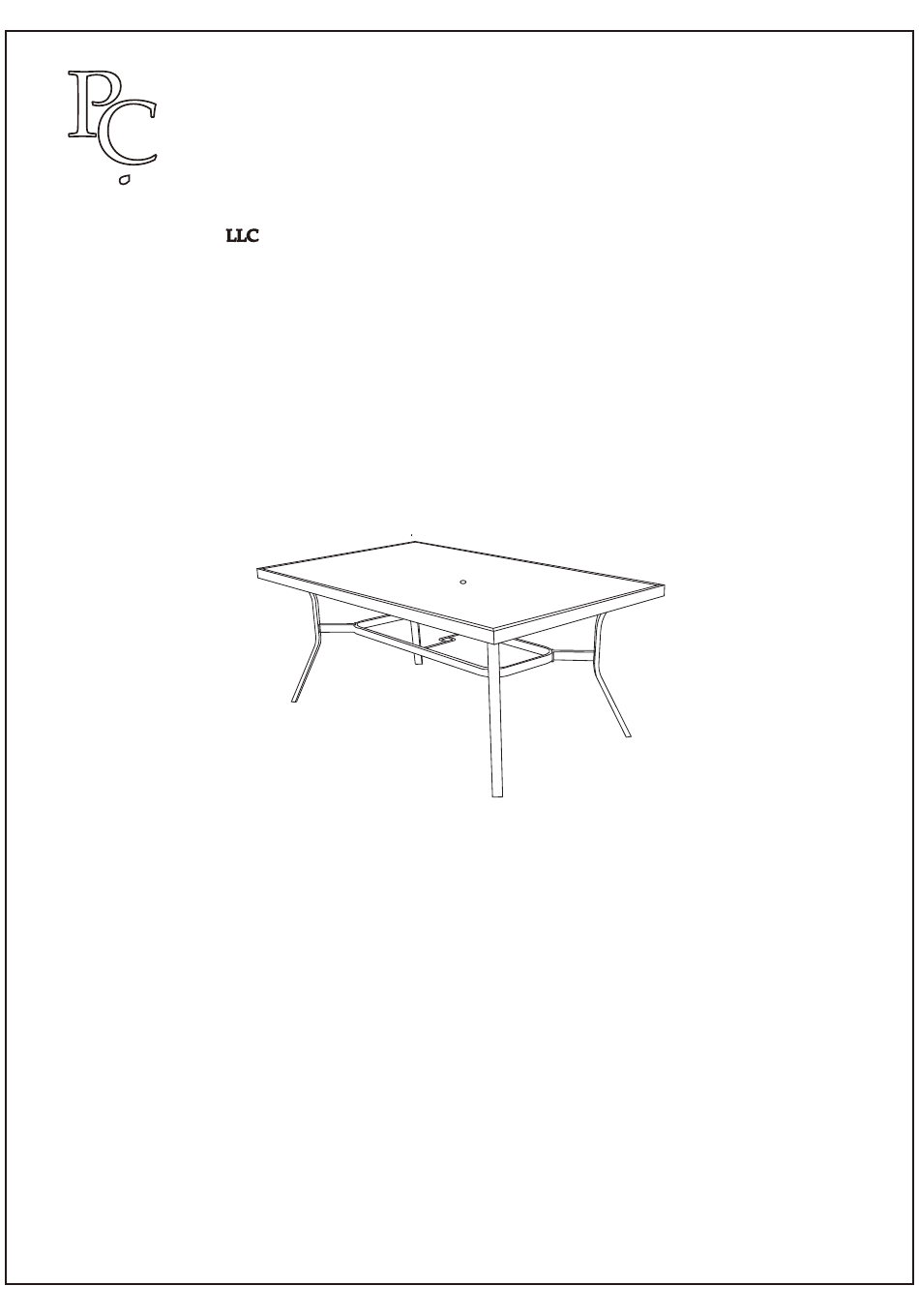

Pendleton II 7pc Cushioned Dining Set

Before you start

Please take out the table parts, and carefully remove wrapping

materials. Be careful not to damage the finish or the glass.

Check the part list and make sure you have all of the parts before

starting to assemble the products.

Before you start, make sure that you have the right tools in hand.

Keep the assembly instructions for future reference.

Assembly Instructions

LLC

(Rectangular Glass Top Dining Table)

Item #: 146-054-7DB1

Page 1 of 4

Page 1 Paciﬁc Assembly Instructions Casual Pendleton II 7pc Cushioned Dining Set (Rectangular Glass Top Dining Table) Item #: 146-054-7DB1 Before you start Please take out the table parts, and carefully remove wrapping materials. Be careful not to damage the finish or the glass. Check the part list and make sure you have all of the parts before starting to assemble the products.
Page 2 Parts List Ref# Description Illustration Table Rim Leg Connector Bracket Glass Table leg Washer Bolt (M6x25) Bolt cap Wrench Page 2 of 4...
Page 3 Step 1 : Remove the glass (C) from the table rim (A) and set it aside. Place the table rim (A) upside down on a flat, smooth surface. Attach table legs (D) to the table rim (A) with washers (E) and bolts (F). Do not fully tighten bolts until the end of step 2.
Page 4 Please have an umbrella base ready before you set an umbrella in the center of the table. Customer Service: Call between 7:30am to 4:30pm P.S.T (Monday to Friday ) Pacific Casual LLC 1060 Avenida Acaso, Camarillo, Ca 93012 Toll Free Number: (888) 445-7757 CustomerService@PacificCasual.com...
