Model # 217-H40-7D
USE AND CARE GUIDE

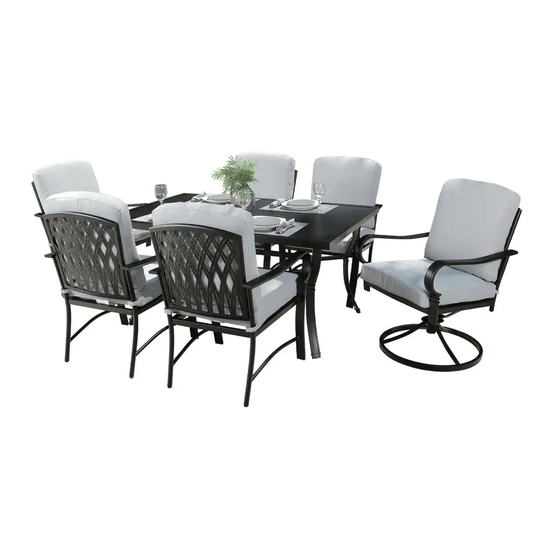

Sarasota 7pc Cushioned Dining Set
(4 Dining Chairs and 2 Swivel Chairs)
Questions, problems, missing parts? Before returning to the store,
call Our Customer Service
7.30 a.m. ~4.30p.m.PST, Monday - Friday,
888-445-6690
CustomerService@PacificCasual.com
Ver: 2-23-2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pacific Casual 217-H40-7D
Summary of Contents for Pacific Casual 217-H40-7D
- Page 1 Model # 217-H40-7D USE AND CARE GUIDE Sarasota 7pc Cushioned Dining Set (4 Dining Chairs and 2 Swivel Chairs) Questions, problems, missing parts? Before returning to the store, call Our Customer Service 7.30 a.m. ~4.30p.m.PST, Monday - Friday, 888-445-6690 CustomerService@PacificCasual.com...
- Page 2 Table of Contents Pre-Assembly..............3 Table of Contents ............2 Planning Assembly ..............3 Important Safety Instructions ..........2 Hardware Included..............3 ..............2 Care & Cleaning Package Contents ..............4 Assembly................. Important Safety Instructions SAVE THESE INSTRUCTIONS IMPORTANT: Please check the tightness of the bolts CAUTION: Use the table and chairs on flat ground only.
- Page 3 Pre-Assembly PLANNING ASSEMBLY It will take two people about 60 minutes to complete the assembly process. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Hardware for Four Dining Chairs Part Description Quantity Bolt cap (M6) Bolt (M6x32) Washer (M6) Hex wrench Hardware for Two Swivel Chairs Part...
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Four Dining Chairs Part Description Quantity Back panel Seat panel Right armrest Left armrest Back cushion Seat cushion PACKAGE CONTENTS Two Swivel Chairs Part Description Quantity Back panel Seat panel Right armrest Left armrest U-bar Chair base Back cushion Seat cushion...
- Page 5 Assembly (Dining Chairs) Attaching armrests □ Place the right armrest (C) on its side on a flat, smooth surface. □ Align the seat panel (B) to the right armrest (C). IMPORTANT: You IMPORTANT: You will need to align the seat panel (B) to the proper armrest by lining up the bolt holes on each part.
- Page 6 Assembly (Dining Chairs) Attaching bolt caps □ Cover all bolts (BB) with bolt caps (AA). Placing cushions □ Place cushions (1 and 2) on the chair and secure the seat cushion to the frame with hook and loop straps. □ Repeat steps 1 through 4 for the other dining chairs.
- Page 7 Assembly (Swivel Chairs ) Assembling the chair seat □ Place the right armrest (C1) on its side on a flat, smooth surface. □ Align the seat panel (B1) to the right armrest (C1). IMPORTANT: You IMPORTANT: You will need to align the seat panel (B1) to the proper armrest by lining up the bolt holes on each part.
- Page 8 Assembly (Swivel Chairs) DDCC FF AA Attaching the U-bar to the seat □ Attach the U-bar (E1) to the bottom of the seat panel (B1) with washers (DD)， lock washers (CC) and bolts (FF) using hex wrench (EE). □ Once all the bolts are in place and fully tightened. Cover them all with bolt caps (AA).
