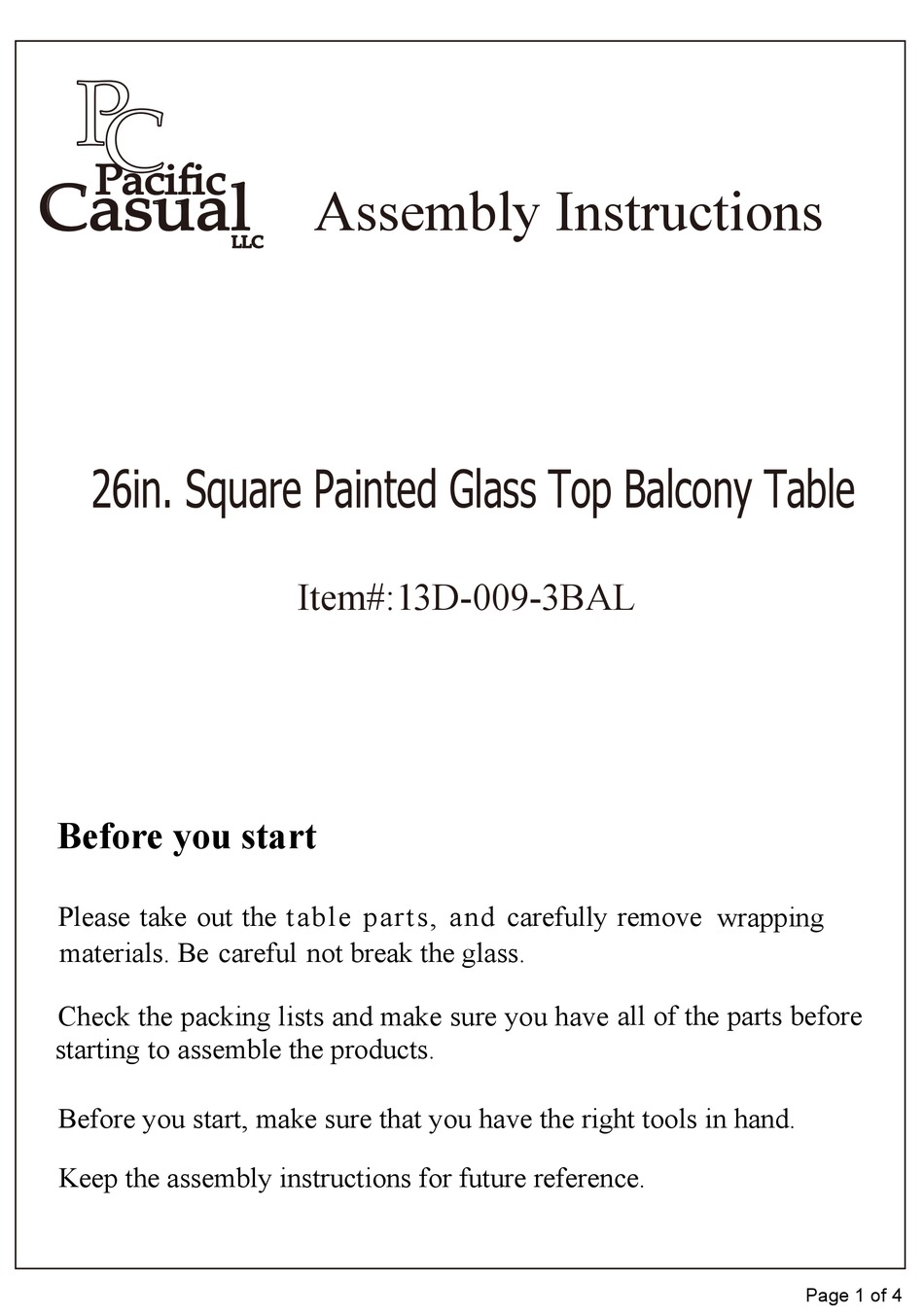

Pacific Casual 13D-009-3BAL Assembly Instructions

26in. square painted glass top balcony table

P C

Paciﬁc

Casual

Assembly Instructions

LLC

26in. Square Painted Glass Top Balcony Table

Item#:13D-009-3BAL

Before you start

Please take out the table parts, and carefully remove wrapping

materials. Be careful not break the glass.

Check the packing lists and make sure you have all of the parts before

starting to assemble the products.

Before you start, make sure that you have the right tools in hand.

Keep the assembly instructions for future reference.

Page 1 of 4

Table of Contents

Do you have a question about the 13D-009-3BAL and is the answer not in the manual?

Page 1 Paciﬁc Casual Assembly Instructions 26in. Square Painted Glass Top Balcony Table Item#:13D-009-3BAL Before you start Please take out the table parts, and carefully remove wrapping materials. Be careful not break the glass. Check the packing lists and make sure you have all of the parts before starting to assemble the products.
Page 2 Part List Illustration Decription Ref # Table Rim Table Leg Leg Connector Bracket Glass Top Bolt, M6x15 Washer Bolt Cap Hex Wrench Page 2 of 3...
Page 3 Step Step 1: : : : Step Attach the 4 table legs (B) to the leg connector bracket (C) with washers (F) and bolts (E) to form a table base. Do not tighten bolts (E) until step 2. Step 2 : : : Step Place the glass top (D) aside from the table rim (A).
Page 4 Inset the glass top (D) into the table rim (A) to Call between 7:30am to 4:30pm P.S.T. complete the assemby of the table. (Monday to Friday) Pacific Casual LLC 1060 Avenida Acaso, Camarillo, Ca 93012 Toll Free Number: (888) 445-7757 CustomerService@PacificCasual.com...
