P/N 67961r2
Tsunami QuickBridge II T1/E1
Quick Install Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tsunami QuickBridge II T1/E1 and is the answer not in the manual?

Questions and answers

Related Manuals for Proxim Tsunami QuickBridge II T1/E1

Summary of Contents for Proxim Tsunami QuickBridge II T1/E1

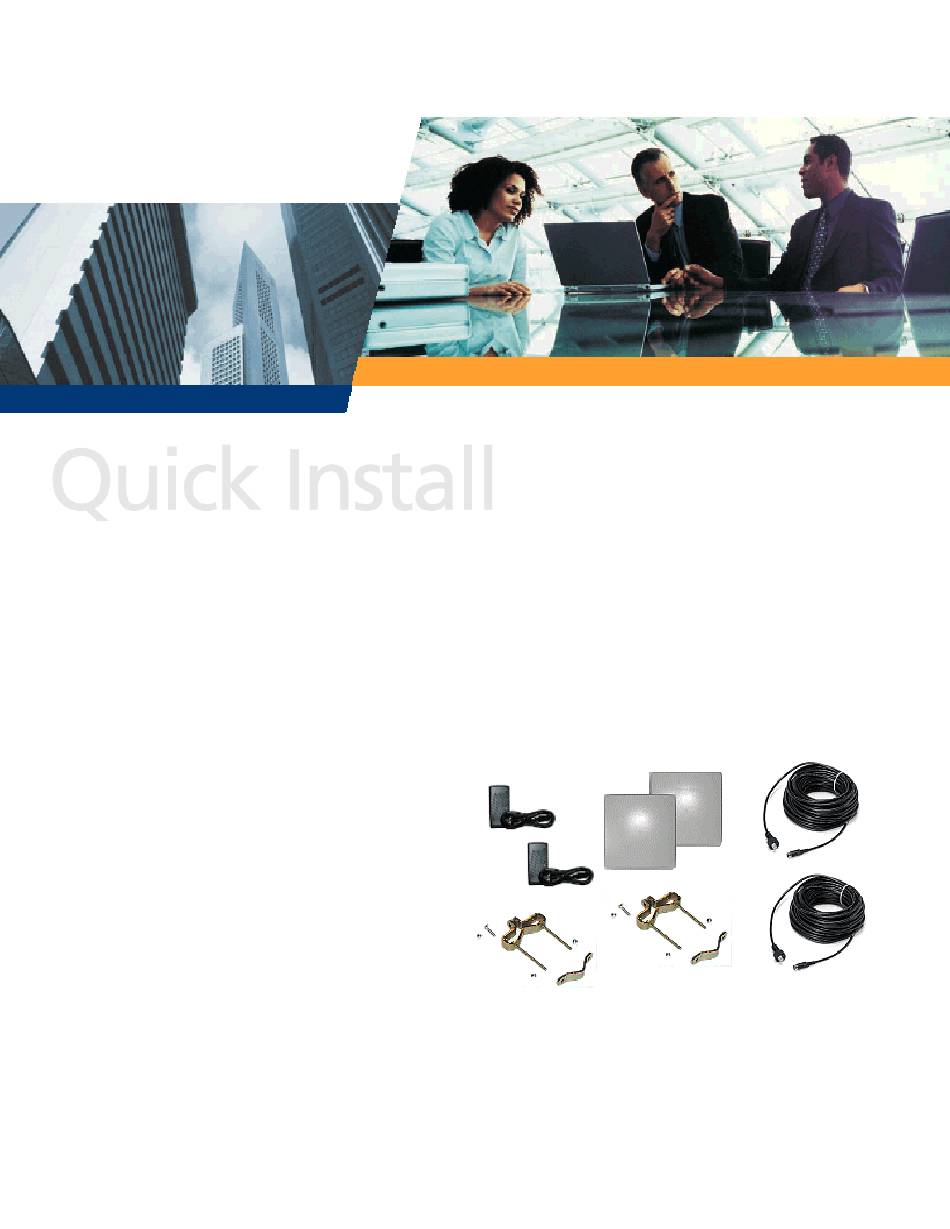

  • Page 1 P/N 67961r2 Tsunami QuickBridge II T1/E1 Quick Install Guide...
  • Page 2 Tsunami QuickBridge II T1/E1 Quick Install Guide Introduction The QuickBridge is a complete kit for enabling a wireless broad bandwidth link between two locations. The equipment is pre-configured at the factory to be mounted and connected to your LAN network. Both ends of the link are provided in this kit along with cables and mounting hardware.
  • Page 3 The Tsunami QuickBridge II T1/E1 Quick Install Guide and a Documentation and Software CD also are included in the shipment. (Extra screw-on caps to seal unused connector ports are also provided.) Contact Technical Support regarding any missing or damaged parts.
  • Page 4 Tsunami QuickBridge II T1/E1 Quick Install Guide STEP 3. PRE-ASSEMBLE HARDWARE Proxim recommends that you pre-assemble the radio mounting hardware on the ground to familiarize yourself with the equipment and check for any possible damaged or missing components before mounting the radios.

  • Page 5: Step 4. Connect The Cables

    Tsunami QuickBridge II T1/E1 Quick Install Guide 4. Place the other mounting bracket section on the two bracket mounting screws and loosely secure them with the bolts supplied. These bolts are used later to mount the radio unit to a pole (as shown in the second figure below).
  • Page 6 Tsunami QuickBridge II T1/E1 Quick Install Guide 3. Connect the RJ45 connector on the interface cable to the RJ45 port on the back of the radio. Hand-tighten the connector nut; do not use the wrench to tighten the connector. Connect the other end of the interface cable to the Power &...

  • Page 7: Step 5. Test Radios Back-To-Back

    STEP 5. TEST RADIOS BACK-TO-BACK Before mounting the radios, Proxim recommends a back-to-back test of the radio pair, using one PC per radio. Back-to-back testing is a simple way to verify that the radios are fully operational before they are installed.

  • Page 8: Step 6. Install The Software

    Tsunami QuickBridge II T1/E1 Quick Install Guide OLYPROPYLENE IBER OUND BSORPTION STEP 6. INSTALL THE SOFTWARE The QuickBridge II includes configuration software (the QuickBridge Manager), which provides basic setup and operating capabilities. Before installing the software, be sure you have configured the radios as described in “Step 4.

  • Page 9: Step 7. Set Up For Configuration

    Tsunami QuickBridge II T1/E1 Quick Install Guide 4. The Choose Install Folder screen is displayed. The recommended installation directory is C:\Program Files\QuickBridge Manager 2.1. Click Next when you have made your selection or to accept the default folder. 5. The Choose Shortcut Folder screen is displayed; click Next when you have made your selections or to accept the default folder.
  • Page 10 Tsunami QuickBridge II T1/E1 Quick Install Guide 2. Connect the PC to the Master unit; start the Manager program by clicking on the QuickBridge Manager icon. You can connect to the Slave unit as well; however, this guide steps you through the initialization process by locally connecting to the Primary.
  • Page 11 For information about using the Receive Signal Quality feature to fine-tune alignment, see “Aligning Antennas with QuickBridge Manager” in Tsunami QuickBridge II T1/E1 Installation and Management. Note: When you finish aligning the radios, tighten down the U-bolt nuts and side bolt nuts to secure each radio in its aligned position.

  • Page 12: Establishing A Connection

    Tsunami QuickBridge II T1/E1 Quick Install Guide Configuring the QuickBridge Radios ESTABLISHING A CONNECTION From the Connection window, click on Discover Radio(s). The QuickBridge Manager program should discover all local radios and display the IP address of each discovered unit in the Radio(s) Available field.
  • Page 13 Tsunami QuickBridge II T1/E1 Quick Install Guide If the wireless link is established, you can select either the Local or Remote device to control from the Selected Radio box. Note: The Selected Radio box is available on all configuration windows. It indicates which radio is currently selected, Local or Remote.
  • Page 14 Tsunami QuickBridge II T1/E1 Quick Install Guide REVIEWING THE MASTER UNIT’S STATUS From the Link Status window, review the current status of both ends of the QuickBridge link; in this case, the locally connected radio (Master) and the remote radio (Slave). This window is updated as changes occur.

  • Page 15: Technical Support

    Proxim’s ServPak program delivers premium support services that complement your Tsunami QuickBridge standard warranty. Available services include, warranty extension, 24x7x365 technical phone support and priority response, and next day priority hardware replacement. For more information, contact Proxim or your Proxim authorized reseller.
