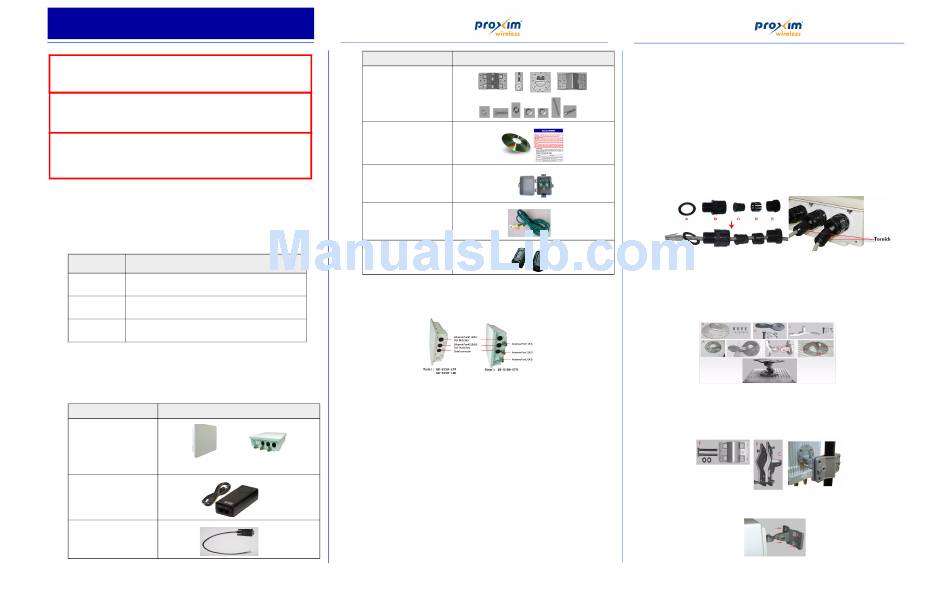

Tsunami QB-8100
Quick Installation Guide
CAUTION!
For Regulatory Information and latest product updates, including firmware
and the MIBs, Proxim recommends visiting the Proxim Support site at
http://support.proxim.com.
IMPORTANT
This device must be installed by a trained professional, value added reseller or
systems integrator who is familiar with RF planning issues and the regulatory
limits.
WARNING!
When connecting a device to the second Ethernet port (Eth2), Proxim
recommends to verify if it is a 802.3af compatible device. If you are planning to
use any other device, please insert a power splitter (not supplied) between the
second Ethernet port and the device, otherwise it may damage the device.
Introduction
The Tsunami QuickBridge 8100 is a wireless point-to-point networking solution for any
enterprise or small business markets. Two pre-configured bridges enable users to easily,
quickly, and economically install a wireless LAN extension between two locations,
eliminating the need for costly leased line or cable alternatives. The QuickBridge 8100 kit
contains everything you need to establish a point-to-point connection.
Products Covered in This Guide
Model Description
QB-8150-LNK Wireless Outdoor QuickBridge Link, Two Paired End Points
with Integrated Antenna, operating in 5 GHz band.
QB-8150-EPR Wireless Outdoor QuickBridge End Point with Integrated
Antenna operating in 5GHz Band.
QB-8100-EPA Wireless Outdoor QuickBridge End Point with 3 N-Type
connectors, operating in 2.4/5GHz Bands.
Package Contents
Each QuickBridge 8100 Product package includes the items listed in the following table.
Verify that you have received all parts of the product package.
Note: Ethernet cables are not included with the product package.
What's in the Kit Image
Unit
or
Integrated
Power Injector & Cord
RJ11 to DB9 serial connec-
tor
Version 1.1 P/N 77062 1 Copyrights © 2009 Proxim Wireless
What's in the Kit
Mounting Kit and Hardware
Installer CD and
Installation Guide
Gigabit Ethernet PoE Surge
Arrestor
Grounding Kit
EMI Toroid
Note: QB-8150-LNK Model contains two sets of the above accessories.
Unit's Hardware Description
Note: In the connectorized version, if you use Single Polarization antenna,
always use the antenna port A1. If you use Dual Polarization antenna,
use the antenna port A1 and A3.
Install the Documentation and Software
1. Insert the CD into the CD-ROM drive. The installer starts automatically. If it does not,
double-click on the setup.exe on the installation CD and wait for the installation to
complete.
The following documentation and software products are installed:
• Documentation (in DOCS subdirectory):
— Installation and Management Guide
Connectorized
— Quick Installation Guide
— Reference Manual
— Antenna Installation Guide
— Recommended Antennas Guide
• Help (in Help subdirectory) – double-click on index.htm to access
• Scan Tool (in ScanTool subdirectory)
• TFTP Server (in Extras subdirectory)
• Adobe Reader (in Extras subdirectory)
Note: You need Acrobat Reader to view the PDF documents, which is
distributed with the Software CD.
Quick
2
Assemble the Cables
The following steps explain how to weatherproof the RJ45 connectors:
1. Slide the sealing nut (E) over the bare end of the Cat5e/Cat6 cable.
2. Slide the tube-shaped compression washer (C) into the compression ring (D) and onto
the Cat5e/Cat6 cable.
3. Insert the flat washer (A) into the connector body (B) to make it waterproof and screw
the connector body into the Ethernet connector hole.
4. Terminate the RJ45 connectors to both ends of the Cat5e/Cat6 cable and test for
proper wiring (cable should be a straight-through cable).
5. Slide the Cat5e/Cat6 cable through the Ethernet connector body (B) in to the Ethernet
jack inside the enclosure. The cable connector should latch into the jack.
6. Thread the sealing nut (E) onto the connector body (B) and hand tighten it to make a
waterproof compression around the cable.
7. Open the notch on both sides of the toroid and fix it on Ethernet Cat5e/Cat6 cable as
shown in the figure. Then, lock the notch of the Toroid by pressing it.
Note: The steps 1-6 apply for assembling the weatherproofing kit for Serial
cable. It is mandatory that both ethernet cables should be attached with
toroids that are provided in the product package.
Assemble the Mounting Hardware
Attach the mounting plate (A) using the provided screws and washers (Torque 9 N.m/75 in-
lbs), such that the unit's antenna will be vertically and horizontally polarized when
mounted. Attach the extension arm (B) to mounting piece (A) with the screw, nut, and
washers provided, as shown below. The extension arm gives the unit more possible tilt,
letting you adjust for azimuth or elevation over a larger angle. Attach the mounting bracket
(C) to extension arm (B) with the screw, nut, and washers provided. Tighten the assembly
(Torque 15 N• m/130 in-lbs). The last figure shows the full assembly attached to the unit.
Note: This figure is for illustration only. Units should be mounted in square
position with connectors facing downward.
Mount the Unit
1. To pole-mount the unit, insert the provided screws through bracket (F). Fasten around
the pole to bracket (C) and secure (Torque 11 N.m/100 in-lbs).
2. To wall-mount the unit, mount the bracket to a wall using 4 screws (not provided), as
shown below.
