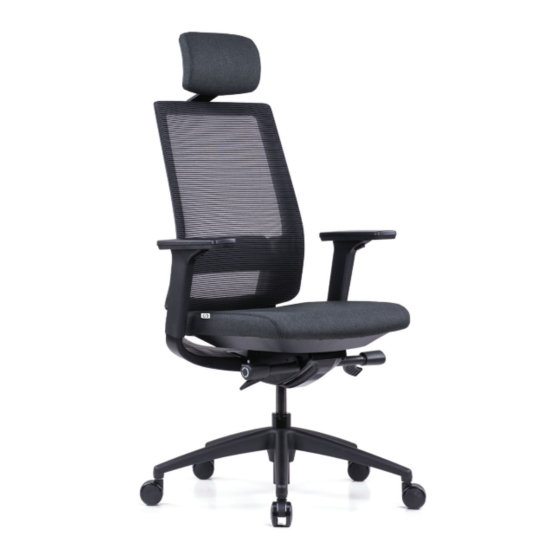

- Page 1 Model #:200HMFBK ASSEMBLY INSTRUCTIONS Name:Palma MODEL NO. 200HMFBK Descrip�on:High Back Mesh Task Chair Color:Black Assembly & Opera�ng Instruc�ons Please read the instruc�on sheets completely before assembly. Maximum Weight Load: 275lbs. OFFICESOURCE.COM Last Updated: 12/2022...
- Page 2 ASSEMBLY INSTRUCTIONS MODEL NO. 200HMFBK Assembly Notes 1.After opening the carton, please carefully check for missing parts and transportation damage and if needed, contact dealer immedi- ately. 2.Once installed, the gas lift will be difficult to remove. It is not recommended to remove the lift to avoid damage to other parts of the chair.
- Page 3 ASSEMBLY INSTRUCTIONS 200HMFBK assembly and operating instructions MODEL NO. 200HMFBK Parts list Seat with mechanism X1 Back X1 Armrest X1 KGS class 4 gas lift X1 Nylon Base X1 Casters X5 Headrest X1 List of screws ① ② M5×1PC M8*20×3PCS ③...
- Page 4 ASSEMBLY INSTRUCTIONS MODEL NO. 200HMFBK Installation steps STEP1 STEP2 ③×1PC ① ⑥×1PC ②×3PCS ⑥×3PCS ⑤×3PCS ①×1PC ⑥×1PC ③×1PC ①×1PC STEP3 STEP4 ④×2PCS ⑧ ⑦ F.×5PCS OFFICESOURCE.COM Last Updated: 12/2022...
- Page 5 ASSEMBLY INSTRUCTIONS MODEL NO. 200HMFBK Headrest / On the top of backrest To adjust, use both hands, hold rmly and slide up or down to desired position. Seat slider / Function lever located on the left hand side of the mechanism...
- Page 6 ASSEMBLY INSTRUCTIONS MODEL NO. 200HMFBK Tilt lock / Control rod on the left hand side of mechanism Rotate forward to engage tilt lock Rotate backwards to release tilt lock Tilt lock allows the user to sit in an upright position for keyboarding, while providing a comfortable rocking/reclining motion during work or break.
- Page 7 ASSEMBLY INSTRUCTIONS MODEL NO. 200HMFBK Lumbar support / At the back of the chair Pull up or down the lumbar support using both hands at the same time Lumbar support may provide relief of lower back pain especially during long working hours.
- Page 8 ASSEMBLY INSTRUCTIONS MODEL NO. 200HMFBK Height adjustment / Control rod on the right hand side of mechanism To raise the seat, shift your weight to your feet. Engage actuator. Chair will rise automatically To lower seat, place your full weight on the chair, and engage actuator lever.
