M-1264/M-1212E

FEATURES

1. Matrix mixing of mono and stereo inputs to up to six

separate outputs.

2. four true stereo inputs--one input knob controls both

left and right channels.

3. Mic/Line inputs with a built in compressor on each to

prevent input/output clipping.

4. High pass filter on mic inputs for speech applications.

5. Remote control of the Stereo and Group outputs using

momentary up/down switch contacts.

TOA PROFESSIONAL SOUND SYSTEM

STEREO-MIXER

Rack Mount

Stereo Mixers

6. Connectors include XLR for balanced in/outs and, RCA

and 1/4" for unbalanced in and outs.

7. Back panel switch for using either stereo output as a

sub-group or the Group out as additional sub input to

the Stereo output.

8. Front panel headphone jack.

9. Occupies only 2 rack spaces.

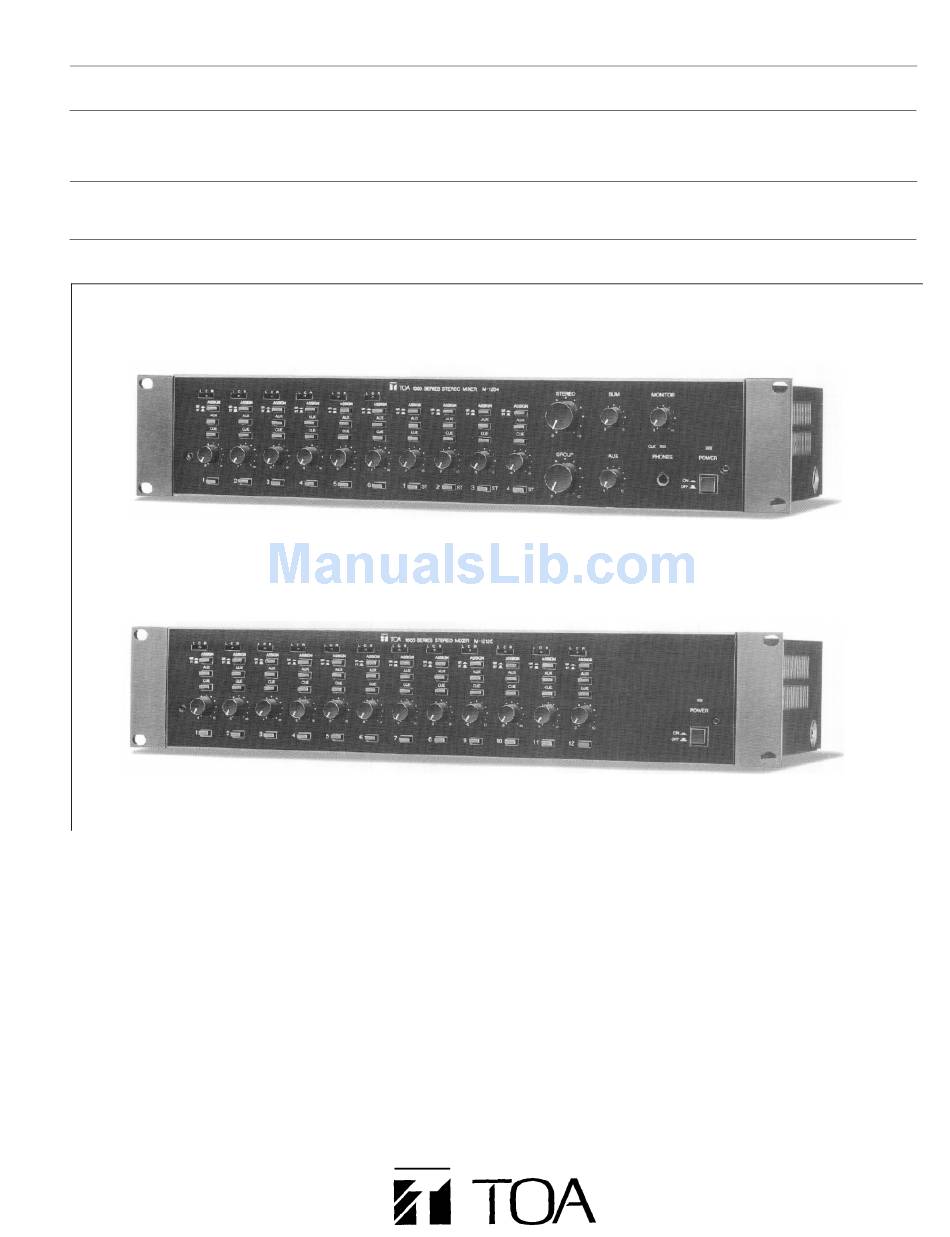

M-1264

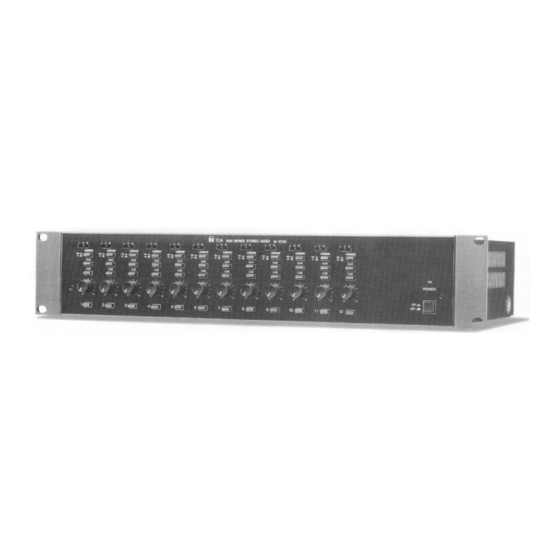

M-1212E

Table of Contents

Need help?

Do you have a question about the M-1212E and is the answer not in the manual?

Page 1 TOA PROFESSIONAL SOUND SYSTEM M-1264/M-1212E FEATURES 1. Matrix mixing of mono and stereo inputs to up to six separate outputs. 2. four true stereo inputs--one input knob controls both left and right channels. 3. Mic/Line inputs with a built in compressor on each to prevent input/output clipping.
Page 2 DESCRIPTION TOA’s M-1264 is a true stereo, matrix mixer only 2 rack spaces high, that is economical and simple to operate yet has a great deal of versatility. Its many unique features and functions solve some long-standing design problems in a...
Page 3: Specifications
No Grp/Stereo link Stereo o/p to Grp bus Grp o/p to Stereo bus Grp o/p to Stereo post Stereo level NOTE: 0dB=0,775V RMS M-1212E Mic/Line Under 0.15% Better than -62dB -60dB, 1k ohm (electronically, balanced) -10dB, 50k ohm (electronically, balanced)
Page 4: Architect's And Engineer's Specifications
0 to +5VDC depending on control position. A BUS LINK IN connector shall providing linking of all mixing buses, plus the cue control bus, between a TOA M-1212E Expansion Mixer and the M-1264. There shall be a fuse holder with a replaceable AC mains fuse.
Page 5: Block Diagram & Level Diagram
BLOCK DIAGRAM & LEVEL DIAGRAM DIMENSIONAL DIAGRAMS M-l 264 REAR VIEW FRONT VIEW WITHOUT SECURITY 3’) 6 (19 FRONT VIEW WITH SECURITY COVER SIDE VIEW SECURITY COVER/...
