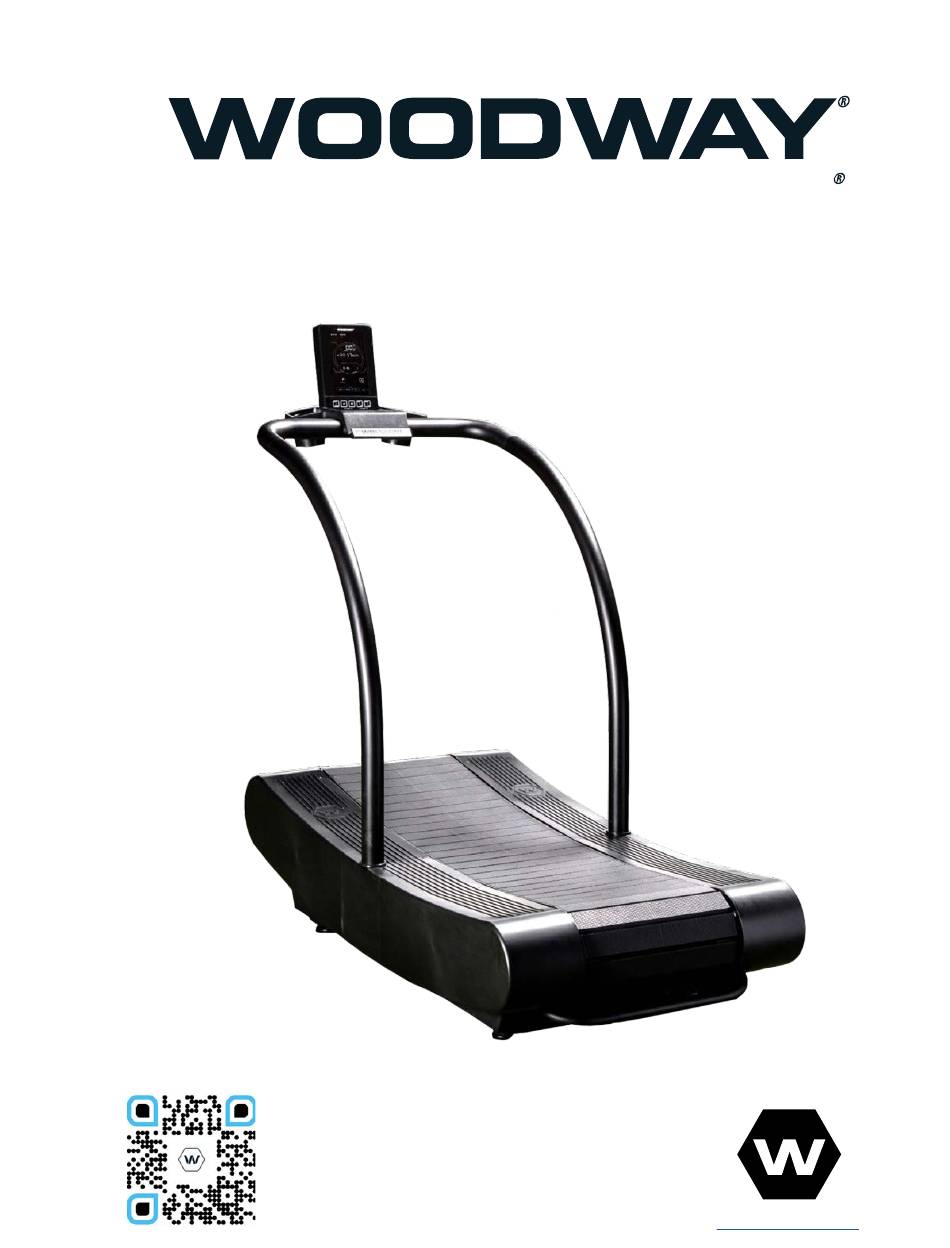

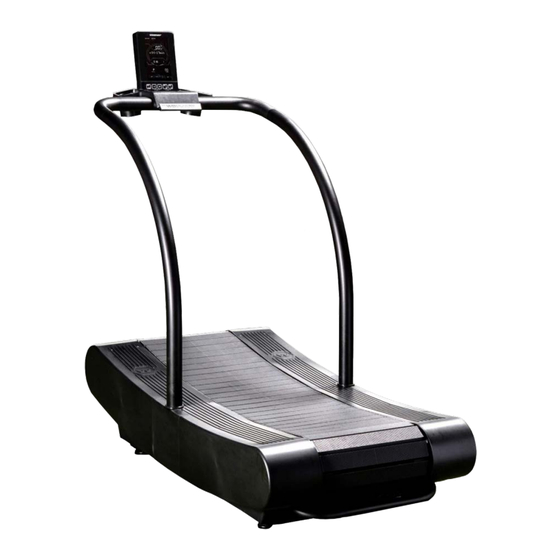

- Page 1 For The Long Run CURVE LTG - Assembly Guide Assembly Guide woodway.com 11. 1 7.23 AG-EN-V1...
-
Page 2: Table Of Contents
Upright Transportation ..............8 Transportation with Carrying Poles ..........9 Storage ..................9 Dimensions and Technical Specifications ....9 Curve LTG Model................10 Conditions for Use ............... 10 Setup and Placement ........10 General ..................10 Preparation and Placement ............11 Installation ............. - Page 3 Chapter Headers or any of the Sub-Chapter Headers in the Table of Contents will take the reader to the desired chapter. Clicking on the WOODWAY header at the top of the page will return the reader to the Table of Contents.
-
Page 4: Safety
It is imperative that all users familiarize themselves with the treadmill and its features. The Curve LTG belt moves freely, by stepping on the rear-most part of the running surface where it is rounded, there is a danger of falling, as the force of gravity can set the running surface in motion. - Page 5 • WOODWAY treadmills are built to handle runners weighing up to 800 lbs. (360 kg) at speeds between 0-4 MPH (0-6.5 km/h) and 400 lbs. (180 kg) at speeds greater than 4MPH (6.5 km/h).
- Page 6 NOTE: A safety sign has been included with your treadmill. It is the responsibility of the owner to post this sign in a visible area near the machine. 11. 1 7.23 OM-EN-V1...
- Page 7 EC Declaration of Conformity 11. 1 7.23 OM-EN-V1...
-
Page 8: Transportation And Storage
For further information please contact WOODWAY Customer Service. Flat Transportation The Curve LTG treadmill can be transported, partially or fully assemble on a flat surface using a commercial grade transport dolly that is 30”x18”. NOTE: Side covers MUST be removed before setting the unit on the dolly to avoid cover... -
Page 9: Transportation With Carrying Poles
Relative humidity: 20-95% (not condensed) • Air pressure: 700–1060 hPa Dimensions and Technical Specifications Note: Curve LTG treadmills have no drive motor. The display system is powered by an enclosed generator. Note: This equipment is not intended for use in damp locations. Running Surface 16.6”... -
Page 10: Curve Ltg Model
Before using the unit, operational and functional safety systems are to be tested, including correct installation and operator instructions. Check immediately upon delivery for any signs of transportation damage and immediately report any damages to the transport company and WOODWAY. ATTENTION Installing after Storage or Transport The formation of condensation on the cooled electronic parts may cause the treadmill to malfunction and damage to the electronics. -
Page 11: Preparation And Placement
Due to the heavy weight of the device, it is recommended to install the treadmill as close to its final location as possible. NOTICE The WOODWAY Curve LTG fitness treadmill uses Metric screws, bolts and nuts for fastening and assembly. The following further instructions for installation are to be observed: •... -
Page 12: Installation
When installing multiple treadmills ensure the distance between each unit is at least 20in (0.5 m). Installation Optional Tools The Curve LTG ships with small tolls for assembly, additional tools may aid in unpacking, and portions of assembly. • 1/2” or 13mm Socket Wrench •... -
Page 13: Included Tools And Hardware
Included Tools and Hardware Included small assembly tools: • 2mm, 2.5mm, 5mm and 6mm Allen Wrenches • 13mm Combination Wrench • 19mm Combination Wrench Notes: 11. 1 7.23 OM-EN-V1... -
Page 14: Unpacking
Unpacking • WARNING: To avoid injury, use caution when moving and lifting the Curve LTG during unpacking and assembly. • Move the boxed unit as close to the final installation location as possible, keeping in mind the specified required Safe Fall Area. - Page 15 4. Cut each corner of the shipping box and fold down the sides as shown. 5. Carefully remove the two plastic side covers from under the front of the unit, and set them aside with the accessory packages. Remove the supporting packing foam from the front of the unit.
-
Page 16: Placement
8. Take stock of Components: 1) Control Console 2) Control Console Support Hoop 3) Control Console Support Tray 4) Metal Console Support Plate 5) Hardware and Tool Blister Pack 6) Right and Left Side Covers 7) Handrail Grommets, Lithium Grease 8) Manuals 9) Right and Left Handrails Placement... -
Page 17: Main Chassis Assembly
Main Chassis Assembly 1. With the treadmill in position, assembly can begin by installing the handrails. Prepare the handrails for installation by sliding the supplied Handrail Grommets (1) onto the lower portion of the handrail as shown. 2. Position the Right Handrail as shown, pointing towards the front of the treadmill. - Page 18 4. The Two M8 x 55mm Socket Cap Bolts get installed into recessed holes on the side of the handrail. Use a 6mm Allen Wrench to guide the bolt. While turning the wrench, gently shift the handrail to align the bolt with the threads on the chassis.
- Page 19 7. With the handrails installed, and the bolts NOT Tightened, the next step is to prep the ends of the Control Console Support Hoop. Shipped with the treadmill is a small container of Lithium Grease, use a small amount to coat each end of the Support Hoop.
- Page 20 10. If the Hoop does not slide into the handrails easily, it can be gently tapped into position using a soft-blow rubber mallet. Tap the Support Hoop gently, alternating from Right to Left sides until it is seated completely into each of the handrails.
- Page 21 13. Align the tabs to the ports as shown, insert the tabs and push the cover into place. 14. Secure the bottom of the cover using Two M4 x 16mm Screws. Repeat the process for the other cover. 15. With the side covers installed, slide the Handrail Grommets down into position as shown.
-
Page 22: Control Console Assembly
Control Console Assembly 1. Prepare the Console Support Tray (1), by separating the Lower Cover (2) and Drink Holders (3) from the Main Support Tray. 2. Install the Control Console (1) into the Console Support Tray (2) as shown. Feed the Two wire harness’s through the rear slot in the Support Tray. - Page 23 Rotate the assembly to access the bottom side and install Two M3 x 25mm Screws, and Two M3 Washers securing the Control Console to the Support Tray. Install the Metal Console Support Plate (1) using Four M3 x 12mm Screws (2) and Four M6 x 15mm Socket Cap Bolts 5.
- Page 24 6. Set the assembled Control Console on top of the Support Hoop Rail Extensions (2) as shown and secure the assembly using Four M8 x 15mm Button Head Socket Cap Bolts. Tighten all Four bolts using a 6mm Allen Wrench. With the console attached, next connect the Wiring Harness (2) from the Support Hoop to the Control Console...
-
Page 25: Leveling Instructions
Leveling Instructions Since the Curve LTG’s running surface is curved, leveling the unit Front to Rear is done by ensuring the chassis is parallel to floor, use a measuring rule to ensure the chassis is the same distance from the floor surface at its furtherest points. The front wheels should be an 1/8”-1/4”...
