Default Login Information for DW Spectrum® IPVMS
Username: admin

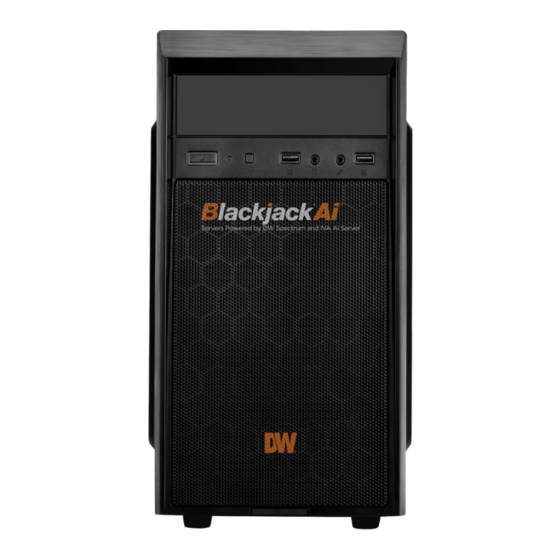

Blackjack Tower™
Ai server
Quick start guide
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/support-download/.
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable part
numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick start guides (QSG), software and firmware will appear in
the results.
Attention: This document is intended to serve as a quick reference for initial setup.
See the DW Spectrum® full manual for more information on features and functionality.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday through Friday
DW-BJAiMT24T
Password: admin12345
WHAT'S IN THE BOX
Keyboard and
1
mouse
1
Power Cable
DW-BJAiMT36T
DW-BJAiMT48T
Default login information for the server's OS
Username: dwuser
1 set
1
Quick Start Guide
Password: Dw5pectrum
Mini-DP to True
HD Adapter
digital-watchdog.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digital Watchdog Blackjack Ai DW-BJAiMT T Series
Summary of Contents for Digital Watchdog Blackjack Ai DW-BJAiMT T Series
- Page 1 Quick Start Guide DW-BJAiMT24T DW-BJAiMT36T DW-BJAiMT48T Default Login Information for DW Spectrum® IPVMS Default login information for the server’s OS Username: admin Password: admin12345 Username: dwuser Password: Dw5pectrum WHAT’S IN THE BOX Blackjack Tower™ Keyboard and Mini-DP to True 1 set Ai server mouse HD Adapter...
-
Page 2: Hardware Overview
HARDWARE OVERVIEW Power button/LED HDD LED Reset button (not used) USB 2.0 port Audio output Audio input Power supply on/off switch AC power socket USB 2.0 ports Type-C cable port BIOS FLBX USB 3.0 ports Network port (LAN/WAN) Line in, line out and Mic in Network port (cameras) 1x Mini DisplayPort Default Login Information for DW Spectrum®... -
Page 3: Setting Up The Server
*recommend to use 3000VA or higher. 3. Turn on the server if the server does not turn on automatically. (Press the Power Button on the front of the P-RACK. F2 on the diagram). SETTING UP THE E-RACK * Connecting the power cable to the live power source may turn on the server automatically Quick Start Guide STEP 1: Connect Peripherals, power and network... -
Page 4: Local Network (Lan)
STEP 3: Configure network Please have the following information ready before starting the network configuration. Camera network Local network (LAN) IP address Subnet mask / Netmask Default gateway / Gateway Not applicable DNS servers Not applicable * Camera network and local network cannot be on the same network. NOTE The Blackjack®... -
Page 5: Local Network
Quick Start Guide Local Network Right-click on the other Ethernet, the one with network cable unplugged, and click “Properties”. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Properties”. * Consult with your IT department if you do not know what IP ad 6. - Page 6 STEP 2: To rename the server Right-click on the server name listed on the resources then click server settings. Go to the general tab and enter the new server name in the name field. Click OK. STEP 3: To check for updates Click on the menu then click “System Administration”.
-
Page 7: Configure Recording
Quick Start Guide STEP 4: Enter and activate licenses Go to the system administration window and click on the license tab. Enter the license key and click “Activate License”. An Internet connection is required. Click on “Activate Trial License” if you have not purchased a valid license key. Click OK to when the license key is activated. - Page 8 Click “All” to apply the recording settings to the entire schedule. A red dot will appear next to the camera in the resource tree once recording is started.
- Page 9 Quick Start Guide STEP 6: Backup database 1. Go to the system administration window and click on the general tab. 2. Click “Create Backup…”. 3. Navigate to the folder you want to save the database and enter a name for the backup file. Click save. It is strongly recommend to backup your data to an external storage media as well.
- Page 10 1. DW Ai Server Configuration Tool While some camera settings can be configured through the DW Spectrum IPVMS Client, the DW Ai Server Configuration Tool can be used to provide a complete analytic user experience during the configuration process of the DW Ai Server. Setting Up the DW Ai Server Configuration Tool While some camera settings can be configured through the DW Spectrum IPVMS Client, the DW Ai Server Configuration Tool can Logging in with the DW Ai Server Configuration Tool...
- Page 11 Quick Start Guide 2) Once you are logged in and connected to the DW Ai Server through the DW Ai Server Configuration Tool, a list will show all added cameras in the left-side panel. 2) v panel. To view camera analytic rules and configuration, enable the DW Ai Server Plugin toggle. To view camera analytic rules and configuration, enable the DW Ai Server Plugin toggle.
- Page 12 • DW Ai (toggle): The DW Ai button toggles the camera list between showing all cameras on the DW Spectrum System or just the STEP 2: DW Ai Server List cameras that have the plug-in enabled. This toggle appears at the If multiple DW Ai Servers will be used, the additional DW Ai Server will need to be added.
-
Page 13: Configuration Tool
Quick Start Guide 3.DW Ai Server Licenses To use the analytic features of a DW Ai Server, a license is required. Licenses can be managed through the DW Ai Server Configuration Tool program. 3.DW Ai Server Licenses STEP 3: DW Ai Server Licenses To view the licenses, select “Licenses”... - Page 14 New Licenses ▪ License Key: Enter the alphanumeric DW Ai license key then The New Licenses area of the menu, server tabs (Server #) are created for each DW Ai Server. Select a server tab to view the click “Activate” to add a license. An Internet connection is license activation interface.
- Page 15 Quick Start Guide STEP 4: Enable Tab – DW Ai Server Plugin To set up analytics on the DW Ai Server, select a camera from the left-side panel. The Enable tab shows the status of the plug-in for the selected camera. From here you can check license status and select the preferred deep-learning feature. •...
-
Page 16: Troubleshooting Tips
Important: OS not listed will be not be supported by DW® Tel: +1 (866) 446-3595 www.digital-watchdog.com Tech Support Fax: (813) 888-9262 sales@digital-watchdog.com Copyright © Digital Watchdog. All rights reserved. Rev: 11/23 Specifications and pricing are subject to change without notice.
