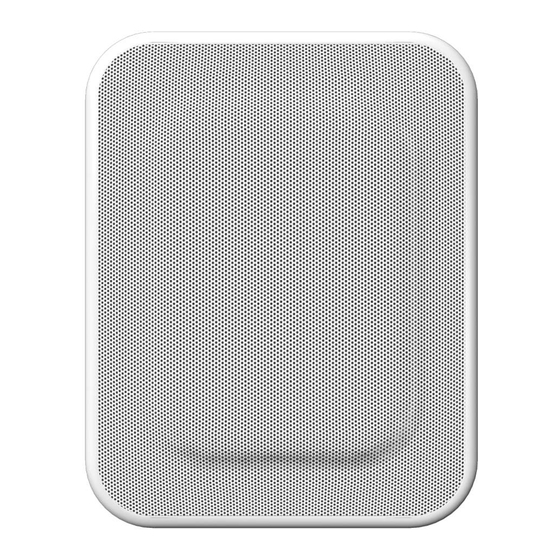

Toa HB-1 Specifications

S
P E C I F I C A T I O N S
Enclosure Type H-1, H-2, H-3: Sealed, Two-way
HB-1: Port Radiation, Acoustic Bandpass
Speaker Components H-1: 3"x 2" Cone Woofer (Neodymium Magnet)
H-2: 4" Cone Woofer (Neodymium Magnet)
H-3: Two 4" Cone Woofers (Neodymium Magnet)
H-1, H-2, H-3: 1" Balanced-Dome Tweeter (H-1 and H-2 are Ferrofluid Cooled)
HB-1: 8" Ferrite Magnet, Urethane Surround
Impedance H-1, H-2: Direct 4
H-3, HB-1: Direct 8
H-1, H-2, H-3: Transformer: 16
H-1, H-2: 70.7 V Line: 12 W (420 ), 6 W (830 ), 3 W (1.7k ), 1.5 W (3.3k )
100 V Line: 12 W (830 ), 6 W (1.7k ), 3 W (3.3k )
H-3: 70.0 V Line: 30 W (170 ), 15 W (330 ), 7.5 W (670 ), 3.75 W (1.3k )
100 V Line: 30 W (330 ), 15 W (670k ), 7.5 W (1.3k )
Sensitivity (1 W/1 m, H-1: 85 dB SBL
1/2 Space) H-2: 88 dB SPL
H-3: 89 dB SPL
HB-1: 91 dB SPL
Power Handling
Cont. Program H-1: 90 W
H-2: 120 W
H-3: 150 W
HB-1: 240 W
Cont. Pink Noise, 24 Hrs H-1: 30 W
H-2: 40 W
H-3: 50 W
HB-1: 80 W
Transformer (16 , 70 V,
100 V Line): H-1:12 W
H-2: 12 W
H-3: 30 W
Frequency Response H-1: 120 Hz to 20 kHz
H-2: 100 Hz to 20 kHz
H-3: 100 Hz to 20 kHz (-10 dB, 1/2 Space)
HB-1: 45 Hz to 200 Hz (-10 dB, 1/2 Space)
Crossover Frequency H-1, H-2: 5 kHz
H-3: 4 kHz (LPF: -12 dB/octave, HPF: -18 dB/octave)
Dimensions (W x H x D) H-1: 12.28" x 4.96" x 3.54" (312 mm x 126 mm x 90 mm)
H-2: 10.55" dia. x 4.37" (288 mm x 111 mm)
H-3: 11.6" x 12.5" x 5.1" (295 mm x 318 mm x 129 mm)
HB-1: 16.93" x 21.42" x 5.32" (430 mm x 544 mm x 135 mm)
HB-1 Cutout size: 14.2" x 18.9" (360 mm x 480 mm),
Weight H-1: 3.31 lbs. (1.5 kg)
H-2: 4.63 lbs. (2.1 kg)
H-3: 7.3 lbs. (3.3 kg)
HB-1: 24.25 lbs. (11 kg)
E I .
A S Y T O N S T A L L
E A .
A S Y T O I M
A E
N D A S Y O N
E .
T H E Y E S
Aim to optimize
delivery of
paging and BGM.
INSTALL PLATE
ATTACH SPEAKER AIM SPEAKER
SNAP ON COVER
ASSEMBLY AND LOCK
Paint grille
to match
L
E G E N D A R Y
your interior.
R
E L I A B I L I T Y
Ask anyone in commercial
audio. They'll tell you
TOA has an unmatched
reputation for building
TOA E
rugged, reliable and TEL: 800-733-7088
FAX: 800-733-9766
innovative products.
TOA C
One look at the new TEL: 905-564-3570
FAX: 905-564-3569
H Series speakers and
w w w. t o a e l e c t r o n i c s . c o m
you'll see why.
TOA speakers are
UK: TOA CORPORATION PLC
TEL: 44-20-8337-2573 FAX: 44-20-8337-2632
engineered tough. They're
GERMANY: TOA ELECTRONIC EUROPE GMBH
TEL: 49-40-2517190 FAX: 49-40-25171998
assembled with the high-
JAPAN: TOA CORPORATION
est quality components,
TEL: 81-78-303-5610 FAX: 81-78-303-5684
then tested and retested
Install using TOA ELECTRONICS TAIWAN CORPORATION
standard electrical
TEL: 886-2-2543-3601 FAX: 886-2-2562-4127
gang boxes. to ensure an out-of-the-
TOA (HONG KONG) LTD.
box failure rate that's
TEL: 852-2782-0311 FAX: 852-2384-4621
INDONESIA: P.T. TOA-GALVA INDUSTRIES
virtually zero.
TEL: 62-21-8740809 FAX: 62-21-8744828
