NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking
the wood.
COMPONENT LIST (CHAIR)
NO.
A
B
HARDWARE LIST
NO.
1
2
Assembly Instruction

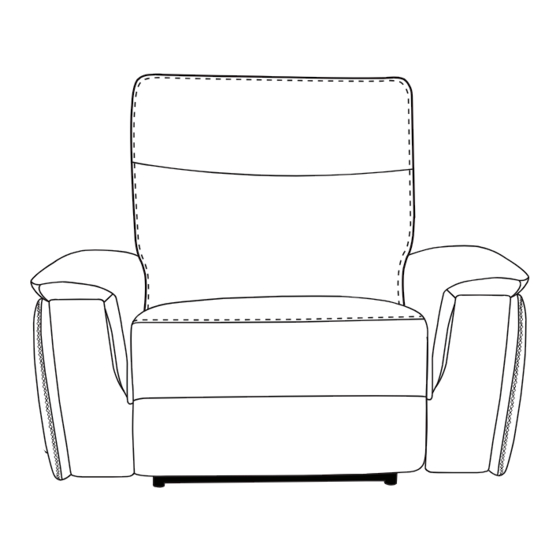

POWER RECLINING CHAIR WITH
POWER HEADREST
ITEM NO.: 8259RFDB/RFTP-1PWH
DRAWING
DRAWING
QP-AI-P022-Raymour-027-0
QTY
DESCRIPTION
BACK REST
1 PC
SEAT WITH POWER
1 PC
HEADREST WIRE
QTY
DESCRIPTION
1 PC
ADAPTOR
PLUG WITH
1 PC
WIRE
1/3
Advertisement
Table of Contents
Related Manuals for Homelegance 8259RFTP-1PWH
Summary of Contents for Homelegance 8259RFTP-1PWH
- Page 1 QP-AI-P022-Raymour-027-0 Assembly Instruction POWER RECLINING CHAIR WITH POWER HEADREST ITEM NO.: 8259RFDB/RFTP-1PWH NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking the wood. COMPONENT LIST (CHAIR) DRAWING DESCRIPTION BACK REST 1 PC...
- Page 2 QP-AI-P022-Raymour-027-0 STEP#1 Align the female brackets at the back rest onto the male brackets at the seat, insert back rest to the seat then push to the end and make sure it is fixed in position securely. Connecting the wire from back rest to seat for power headrest. Back Rest Installation STEP#2...
- Page 3 CARE INSTRUCTION FOR GENUINE ALL LEATHER: In order to maintain the original appearance of your leather furniture, please follow below simple care procedure : Avoid exposing furniture directly to sunlight or heating and air conditioning outlets. Exposure to sunlight or heating and air conditioning outlets will fade/damage leather.
