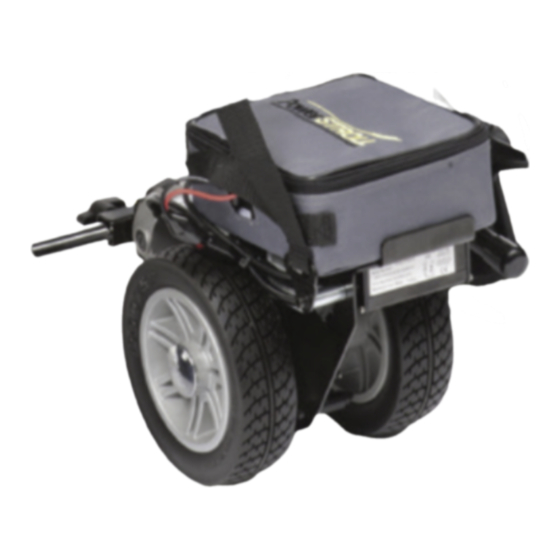

Lightweight Powerstroll
Instructions for use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DeVilbiss Lightweight Powerstroll and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drive DeVilbiss Lightweight Powerstroll

Summary of Contents for Drive DeVilbiss Lightweight Powerstroll

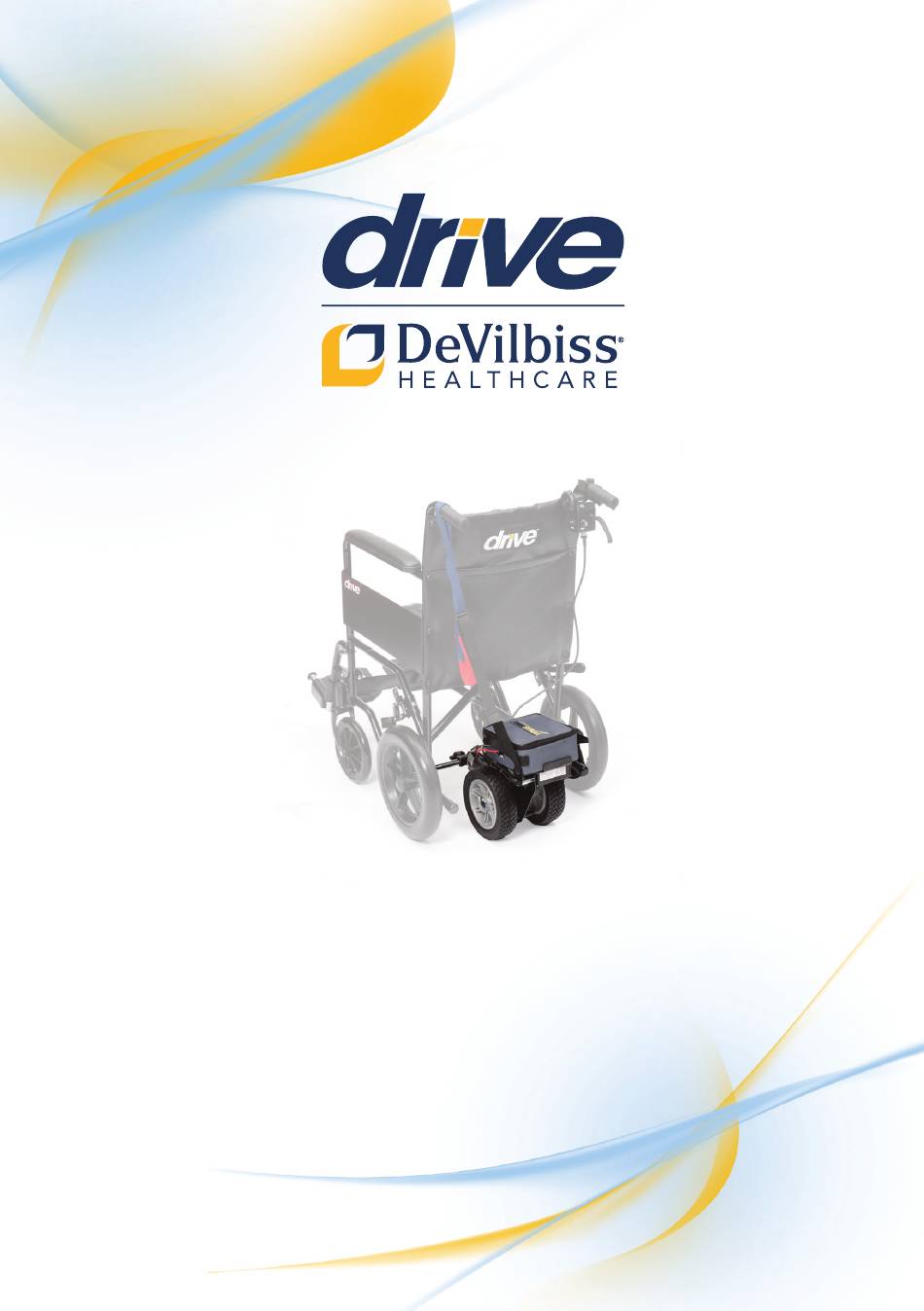

  • Page 1 Lightweight Powerstroll Instructions for use...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION 2. CONTACT INFORMATION 3. PRODUCT DESCRIPTION 3.1 Environment 3.2 Intended User Group 3.3 Intended Use 3.4 Indications 3.5 Product Overview 4. SAFETY 4.1 Warnings & Cautions 4.2 Risk Assessment 4.3 Contraindications 4.4 Powerstroll Loading 4.5 Training 4.6 General Warnings 5.

  • Page 3: Introduction

    Keep this manual with the Powerstroll, or in a safe place. Contact Drive DeVilbiss Healthcare Ltd. or check our website for the latest version of this document. Users with visual, reading or cognitive disabilities should seek advice from a professional care provider for an appropriate format.

  • Page 4: Product Description

    3. PRODUCT DESCRIPTION 3.1 Environment The Powerstroll can be used in both indoor and outdoor environments where appropriate. The Powerstroll can be used on flat, even path surfaces, however the user should avoid grass, gravel and gradients greater than 6°, if possible. Additional care should be taken to avoid inclement weather and wet surfaces.

  • Page 5: Safety

    4. SAFETY 4.1 Warnings & Cautions Warnings in this user manual highlight potential hazards that if disregarded could lead to injury or death. Warning Cautions in this user manual highlight potential hazards that if disregarded could lead to equipment damage or failure. Caution 4.2 Risk Assessment Before using the Powerstroll, a risk assessment must be performed by a...

  • Page 6: Powerstroll Loading

    Maximum weight capacity is the sum of the user mass, the wheelchair and any ancillary attachments or accessories. Exceeding the maximum weight capacity will void your warranty. Drive DeVilbiss Healthcare Ltd. will not be held responsible for injury and / or damages resulting from failure to observe weight capacities.

  • Page 7: General Warnings

    If exposed to moisture, do not operate the Powerstroll until it has dried thoroughly. • Do not drive on tall grass or loose surfaces, such as gravel or sand, or in muddy conditions. • Reduced speed and care should be taken when navigating obstacles.
  • Page 8 / fire. Damaged or worn upholstery increases the risk of fire hazard and should be replaced immediately. • Individuals unable to drive the Powerstroll without assistance or supervision must not use the Powerstroll without such supervision. Unsupervised use of the Powerstroll must be avoided if there is any doubt about the ability of an individual to operate it safely.

  • Page 9: Transport & Storage

    5. TRANSPORT & STORAGE Environmental conditions for transport and storage: Ambient temperature: 0°C to +40°C Follow these conditions when transporting or storing the Powerstroll: • The power switch should be turned off. • Always fully charge, then remove the battery prior to long-term storage to ensure maximum battery efficiency.

  • Page 10: Symbol Definition

    6. SYMBOL DEFINITION The following symbols are found on this Powerstroll: Symbol Description Warning Beware of potential hazard Caution Beware of potential product damage Refer to instructions for use - Recommended Failure to read the instructions for use could introduce a hazard Refer to instructions for use - Mandatory Failure to read the instructions for use could introduce a hazard Medical Device...
  • Page 11 Symbol Description Serial number Product code Model Number Quantity UK Responsible person Authorised EU Representative Manufacturer Date of manufacture Importer Distributor W.E.E.E Label - Found on individual parts of electrical system (Waste Electrical and Electronic Equipment) Refer to section 12) Keep away from rain...

  • Page 12: Parts Identification

    7. PARTS IDENTIFICATION Battery Connector Throttle lever connector Tightening Knob Brackets Motor Battery Tray Wheel Lift Up Strap Handset Telescopic Bar Battery Pack...

  • Page 13: Charging & Preparing For Use

    Prepare the Powerstroll in a dry, indoor environment. • Only competent persons are to prepare the Powerstroll for use. If in doubt, contact Drive DeVilbiss Healthcare Ltd. • Ensure a risk assessment in line with local health and safety Warning policy is undertaken to ensure that staff are not put at risk when performing assembly activities.
  • Page 14 Powerpack Installation Feed the telescopic bar through the front end of the powerpack. Slacken the tristar knob on the bar and insert one end of the bar in to the bracket on one side of the wheelchair (as shown right). Slide the telescopic section out until the other end of the bar locates fully in the hole of the bracket on the opposite side...

  • Page 15: Battery Charging

    8.2 Battery Charging • Do not open the battery. • Do not connect an extension cord to the battery charger. • Keep metal objects away from the battery terminals; electric shock may occur. • Ensure the charging cable is not under excessive tension to avoid cable damage —...

  • Page 16: Checking Before Use

    It is important to check the functionality of the Powerstroll before the initial use to ensure its safe operation. • Check that the Powerstroll is securely fixed to the wheelchair and that both drive wheels are on the ground. • Check that the Powerstroll drives the wheelchair in a straight line. •...

  • Page 17: Operation Of The Powerstroll

    9. OPERATION OF THE POWERSTROLL 9.1 Operational Limits Ambient temperature: 0°C to +40°C Operating Humidity: 20% to 85% RH 9.2 Powerstroll Controls Please refer to the diagram below to identify your Powerstroll controls and their functions. Familiarise yourself with the terminology to better understand references throughout these instructions.
  • Page 18 Power/Direction Switch To allow the Powerstroll to move forward press the front of the button (marked “I”). To allow the Powerstroll to move backwards press the rear of the button (marked “II”). To switch off the Powerstroll press the button so the switch is in the middle position (marked “0”).

  • Page 19: Using The Powerstroll

    • Keep your hands and feet away from moving parts while moving. Be aware of loose-fitting clothes that can become caught in the drive wheels. • Always reduce your speed and maintain a stable centre of gravity when turning corners.

  • Page 20: Steps, Kerbs & Fixed Obstacles

    9.4 Steps, Kerbs & Fixed Obstacles Use extreme caution when operating your Powerstroll near kerbs, porches, stairs, escalators, drop-offs, unprotected ledges, and raised areas. Approach slowly, and make sure the front of the wheelchair with Powerstroll attached is perpendicular to the obstacle. To manoeuvre up a fixed obstacle –...

  • Page 21: Inclines

    • Drive your Powerstroll straight up or down an incline, never backwards. Erratic movements, or back and forth patterns may increase the chance of tipping.

  • Page 22: Outdoor Operation & Inclement Weather Precautions

    9.6 Outdoor Operation & Inclement Weather Precautions Exposure to inclement weather should always be avoided. Monitor weather forecasts before starting a journey to reduce risks. If you find yourself caught in inclement weather while operating your Powerstroll, proceed to the closest shelter immediately.

  • Page 23: Cleaning

    10. CLEANING • Never use direct contact with water to clean the Powerstroll. This could cause damage to the electrical components and put the user at risk. Only a damp cloth should be used. • Always disconnect the Powerstroll from the mains supply prior to cleaning.

  • Page 24: Maintenance & Servicing

    Routine maintenance is required to ensure the maximum use of your Powerstroll. While some of the maintenance can be done by yourself, you may need assistance from an authorised service engineer. If you have any doubts, contact Drive DeVilbiss Healthcare Ltd.
  • Page 25 Bent or broken wheel assemblies • Will not power on All wheel bearings have been lubricated and sealed. They should not require subsequent lubrication during maintenance. If in doubt about the correct replacement of a component, contact Drive DeVilbiss Healthcare Ltd.

  • Page 26: Fault Resolution

    If this does not resolve the issue, recharge the battery and repeat the above procedure. If the fault is still not resolved, do not use the Powerstroll, turn off the power and contact Drive DeVilbiss Healthcare Ltd. 11.3 Repair Contact your provider to discuss the replacement of components on the Powerstroll.

  • Page 27: Disposal Of Parts

    For further information about disposal, contact your local waste agency, recycling centre, or provider. If in doubt, contact Drive DeVilbiss Healthcare Ltd. The Powerstroll and any associated parts are to be decontaminated before disposal to avoid the risk of cross- contamination.

  • Page 28: Electromagnetic Compatibility (Emc)

    Powerstroll. Your Powerstroll, with no modifications, has an immunity level of 20 V/m. For specific emissions and immunity information relating to the Powerstroll, contact Drive DeVilbiss Healthcare Ltd. Report EMI incidents to Drive DeVilbiss Healthcare Ltd. using the details provided in section 2. •...

  • Page 29: Specification

    14. SPECIFICATION Product name: Lightweight Powerstroll Product code: PWCPP010 Top Speed* 3mph (5kph) Maximum Range* 10 miles (16km) Rated Slope: 6º Ground Clearance: Powerstroll Dimensions: (L × W × H) (cm / in) 36 × 20 × 29cm Tyres x 2 20 x 7.5cm Maximum Weight Capacity: 115kg (18 stone)

  • Page 30: Warranty

    Please note if a fault is outside of the warranty terms and conditions (please see above), any repair undertaken will be charged for. All replaced parts and products on which a refund is made become the property of Drive DeVilbiss Healthcare Ltd. Repaired or replaced parts and products are warranted for the remainder of the original warranty period.

  • Page 31: Maintenance Schedule

    ✓ Battery Condition ✓ Wheel Condition ✓ Motors General Device ✓ Inspection ✓ Cleaning SUGGESTION – Once a year, take your Powerstroll to a service engineer for inspection and maintenance who are authorised on behalf of Drive DeVilbiss Healthcare Ltd.
  • Page 32 225 Yuanpeir Street, Hsinchu City, Taiwan, R.O.C. NB. IMAGES CONTAINED IN THIS DOCUMENT ARE FOR ILLUSTRATION AND PARTS IDENTIFICATION PURPOSES ONLY, AND MAY NOT REFLECT FINAL PRODUCT OUTLOOK APPEARANCE. Drive DeVilbiss Healthcare Ltd. provide these instructions for use and product markings. Issue 2023-01- rev2...
